CIOKS / Eventide PowerFactor 2 power supply underneath or on top of a Pedaltrain board.

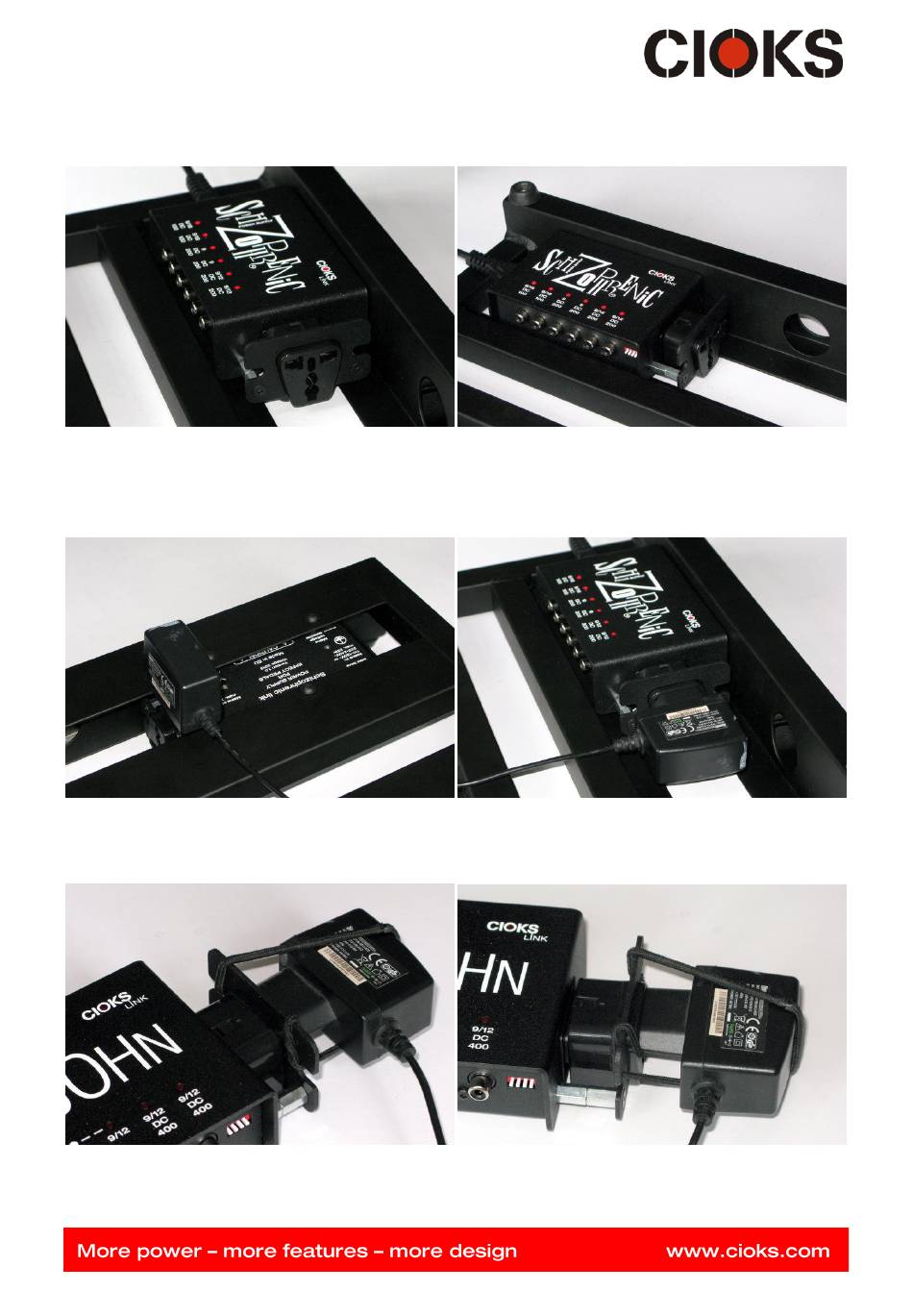

The next two pictures show the mains adapter attached to the Schizophrenic link power supply underneath
a Pedaltrain Junior board.
When a link type power supply is mounted underneath the Pedaltrain board as described earlier in this
document, the adapter allows powering of two different devices like ex. a plug-in adapter – one plugged in
from the top and one placed underneath the board as shown on following two pictures.
To secure the connection you can use a rubber band or a cable tie to fix the adapter to the bracket as
shown below.
