CIOKS Eventide PowerFactor 2 Quick Start Manual page 4

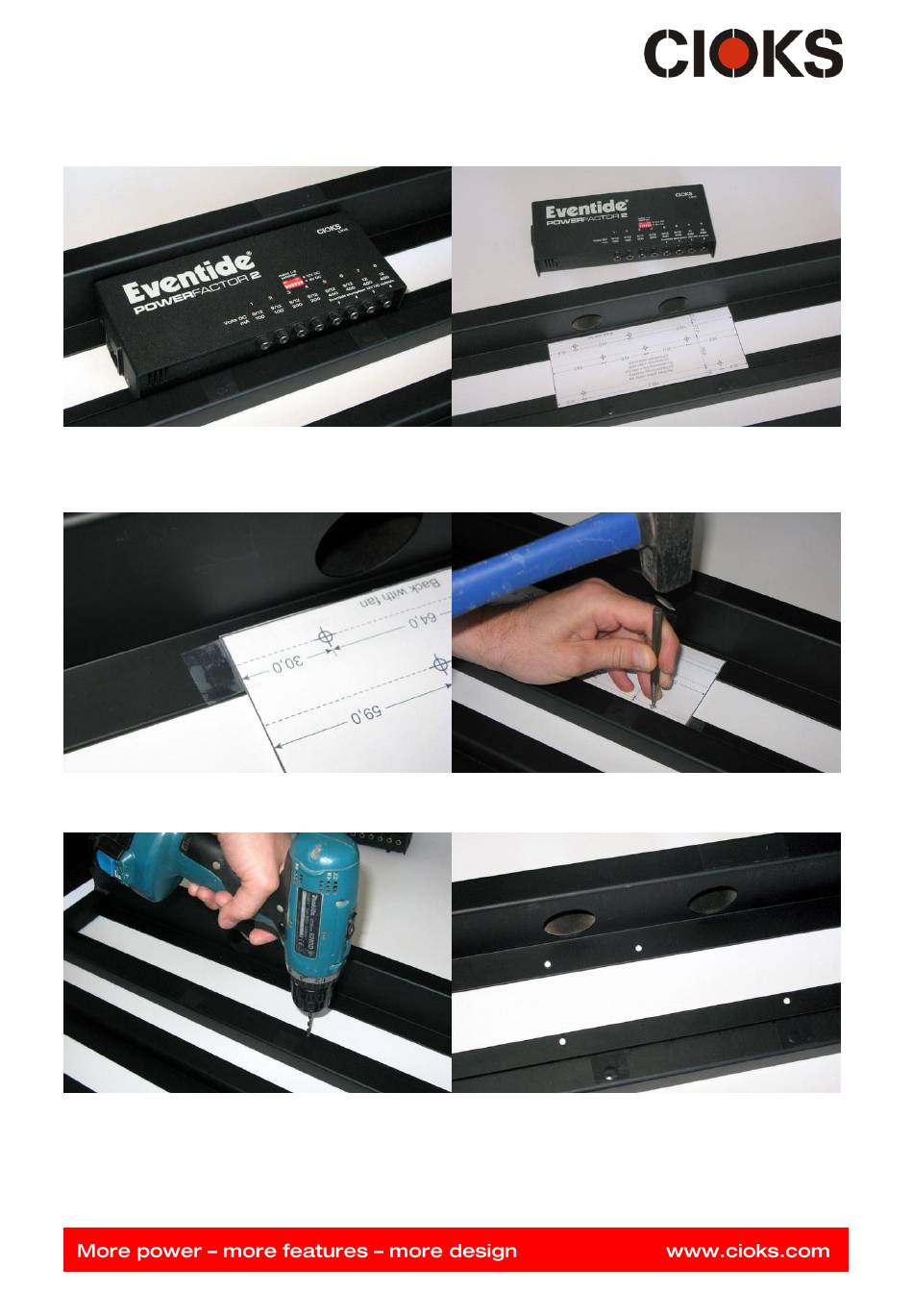

CIOKS / Eventide PowerFactor 2 power supply underneath or on top of a Pedaltrain board.
Now remove the power supply from the spot, where you've decided to place it and put the template in the
same place.
Secure the template to the board using some Scotch tape. Use a centre punch to mark the positions of the
four holes to be drilled.
Drill the four holes. The result is shown on the right picture below.
Now use the four screws to attach the power supply to the board. Use the included hex key to tighten the
screws. You're done and ready to make all the connections with Flex cables. On the following pictures you
see the PowerFactor 2 mounted underneath the Pedaltrain pedal board from different angles.
Page 4
