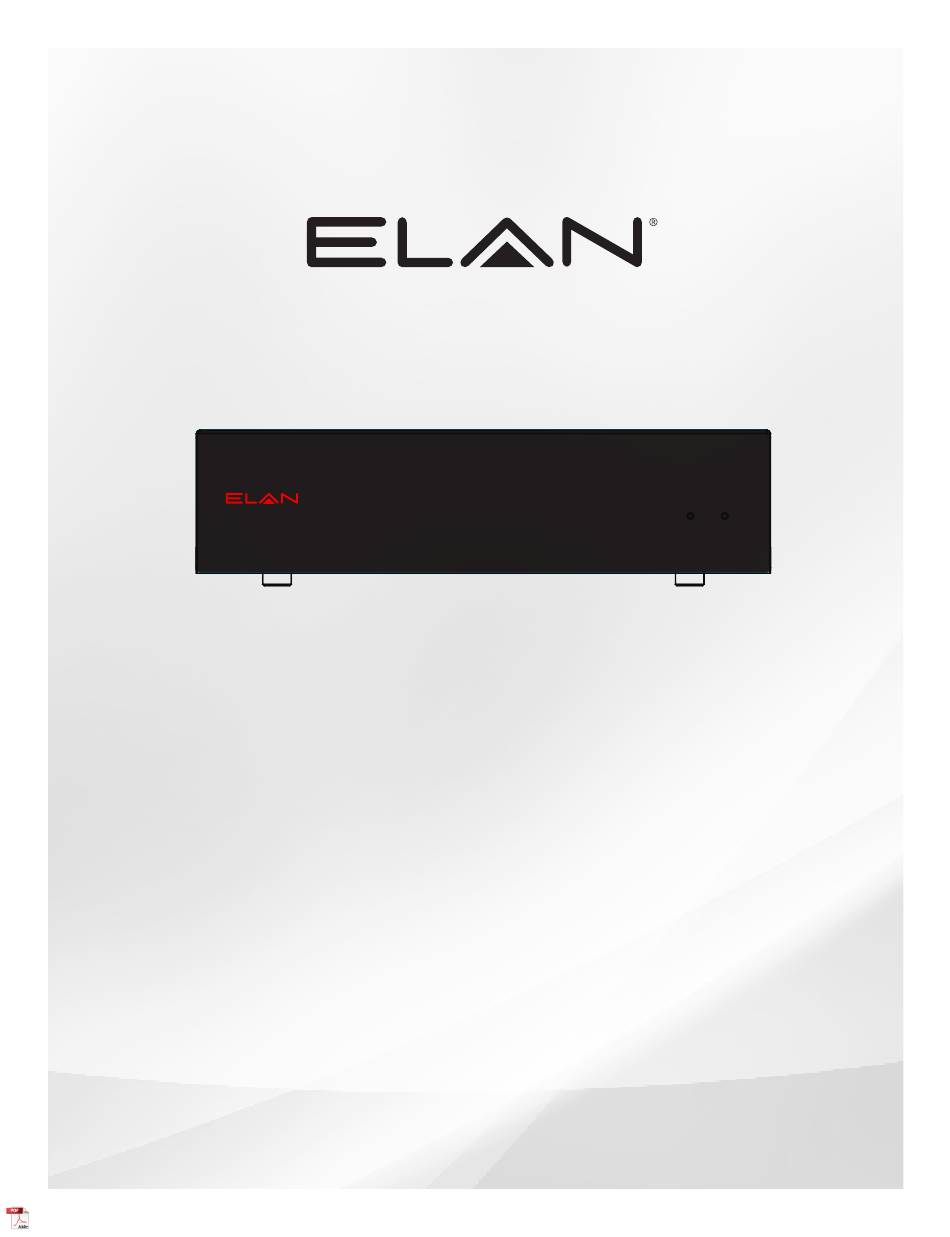

- Page 1 EL-IPD-AMP-2CH 2 Channel Audio Amplifier STATUS POWER EL-IPD-AMP-2CH 2 Channel Audio Amplifier Quick Start Guide...
-
Page 3: Table Of Contents
QUICK START GUIDE EL-IPD-AMP-2CH TABLE OF CONTENTS FCC and IC Information ................. . 3 Energy Efficiency - Commission Regulation (EC) no 1275/2008 . -
Page 4: Important Safety Instructions
QUICK START GUIDE EL-IPD-AMP-2CH Important Safety Instructions Read these instructions. 19. Open flame sources, such as lighted candles, Keep these instructions. should NOT be placed on the apparatus. Heed all warnings. 20. Protective earthing terminal. The apparatus Follow all instructions. -
Page 5: Overview
QUICK START GUIDE EL-IPD-AMP-2CH Overview The EL-IPD-AMP-2CH 2 Channel Audio Amplifier is designed to be used in a stand-alone configuration or with other ® ® amplifiers and pre-amps within the ELAN IP audio distribution family of products using Dante Audio Networking. - Page 6 QUICK START GUIDE EL-IPD-AMP-2CH REAR VIEW EL-IPD-AMP-2CH 100–240 V~, 50/60 Hz CAUTION: REPLACE MAC ID WITH SAME TYPE T3.15AL 250V FUSE Stereo Mode 4-8Ω Bridge Mode (Mono) 8Ω Speaker Outputs Class 2 Wiring BRIDGE Serial No. COAX OPTICAL RESET ETHERNET...
-
Page 7: Applications
QUICK START GUIDE EL-IPD-AMP-2CH Applications The following applications are examples of how the EL-IPD-AMP-2CH 2 Channel Audio Amplifier Matrix can be used. For more detailed system design guidelines, see the Design Guide for the ELAN IP Amplifier from www.elancontrolsystems.com. Combining the EL-IPD-AMP-2CH 2 Channel Audio Amplifier with the EL-IPD-MTX-8CH Multi Zone Audio Matrix with the optional EL-IPD-NAC-EXT Network Audio Card adds an additional audio zone. - Page 8 QUICK START GUIDE EL-IPD-AMP-2CH Zone Extender Set Top Box Blu Ray Player Streaming Media Music Power Streamer MUSIC STREAMER Audio/Video Receiver ZONE 1 ZONE 3 ZONE 7 ZONE 2 ZONE 4 ZONE 5 Subwoofer ZONE 6 NETWORK MUSIC STREAMER Power...
-
Page 9: Installation
Installation Mount the EL-IPD-AMP-2CH 2 Channel Audio Amplifier in a cabinet by setting it on a sturdy shelf. As with any electronic device the EL-IPD-AMP-2CH generates heat at all times, but considerably more when in use. Ensure clear positive airflow within the cabinet by using fans. -
Page 10: Network Setup Faqs For Dante
Does Dante require special switches? No. But we strongly recommend that Gigabit switches be used due to the clear advantages in performance and scalability. If using a 100Mbps, see the design guide and and integration note for ELAN products. -
Page 11: Limited Warranty
QUICK START GUIDE EL-IPD-AMP-2CH Limited Warranty Nortek Security & Control ( ‘NSC’ ) warrants the E L-IPD-AMP-2CH to be free from defects in materials and workmanship for the period of two years (2 years) from the date of purchase. If within the applicable warranty period above purchaser discovers that such item was not as warranted above and promptly notifies ‘NSC’... - Page 12 1 (707) 283-5900 - International 1 (707) 283-5901 - Fax web: elancontrolsystems.com ©2022 Nortek Security & Control LLC. ELAN ® is a registered trademark of Nortek Security & Control, LLC. Other brand names and products names 10032515 Rev-B mentioned herein may be the trademarks, tradenames, services marks or registered trademarks of their respective owners. All rights reserved.
