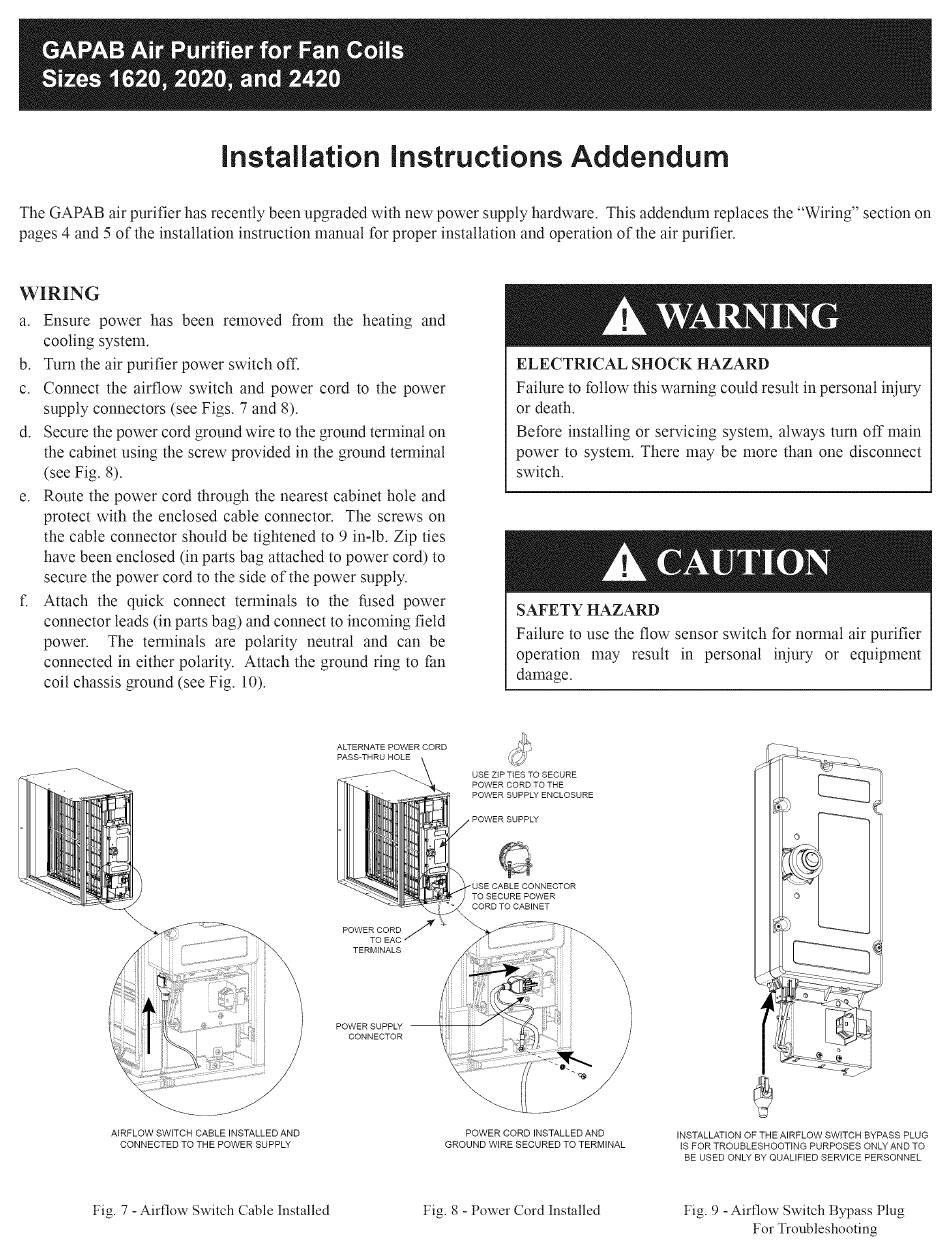

Installation instructions Addendum
The GAPAB air purifier has recently been upgraded with new power supply hardware. This addendum replaces the "Wiring" section on
pages 4 and 5 of the installation instruction manual for proper installation and operation of the air purifier.
WIRING
a. Ensure power has been removed
from the heating and
cooling system.
b. Turn the air purifier power switch off.
c. Connect the airflow switch and power cord to the power
supply connectors (see Figs. 7 and 8).
d. Secure the power cord ground wire to the ground terminal on
the cabinet using the screw provided in the ground terminal
(see Fig. 8).
e. Route the power cord through the nearest cabinet hole and
protect with the enclosed cable connector.
The screws on
the cable connector should be tightened to 9 in-lb. Zip ties
have been enclosed (in parts bag attached to power cord) to
secure the power cord to the side of the power supply.
f. Attach the quick connect terminals
to the fused power
connector leads (in parts bag) and connect to incoming field
power.
The terminals
are polarity neutral and can be
connected in either polarity. Attach the ground ring to Pan
coil chassis ground (see Fig. 10).
ELECTRICAL
SHOCK HAZARD
Failure to follow this warning could result in personal injury
or death.
Before installing or servicing system, always turn off main
power to system. There may be more than one disconnect
switch.
SAFETY HAZARD
Failure to use the flow sensor switch for normal air purifier
operation
may result in personal
injury
or equipment
damage.
ALTERNATE
POWER
CORD
TERMINALS
POWER
SUPPLY
--
CONNECTOR
AIRFLOW
SWITCH
CABLE
INSTALLED
AND
CONNECTED
TO THE POWER
SUPPLY
POWER
CORD
INSTALLED
AND
GROUND
WIRE
SECURED
TO TERMINAL
INSTALLATION
OF THE AIRFLOW
SWITCH
BYPASS
PLUG
IS FOR
TROUBLESHOOTING
PURPOSES
ONLY AND
TO
BE USED
ONLY
BY QUALIFIED
SERVICE
PERSONNEL
Fig. 7 - Airflow Switch Cable Installed
Fig. 8 - Power Cord Installed
Fig. 9 - Airflow Switch Bypass Plug
For Troubleshooting
