- Page 1 Installation Operation Care • • Applause Honeycomb Shades ® EasyRise Operating System ™...
-
Page 2: Table Of Contents
Cleaning Procedures ............13 CHILD SAFETY Warning ................15 Cord Loop Shades ..............15 Questions? Call the Hunter Douglas Customer Information Center at 1-888-501-8364. © 2016 Hunter Douglas. All rights reserved. All trademarks used herein are the property of Hunter Douglas or their respective owners. -
Page 3: Getting Started
Getting Started PRODUCT VIEW Installation Brackets Headrail EASYRISE ™ STANDARD BOTTOM-UP SHADE Cord Loop Tensioner Hold-Down Brackets (Optional) Middle Rail Cord Loop Tensioner Cord Loop EASYRISE TOP-DOWN/ Tensioner BOTTOM-UP SHADE Bottom Rail Not Shown: Duolite and Two-On-One Headrail Shades ™... -
Page 4: Tools And Fasteners Needed
Getting Started Thank you for purchasing Hunter Douglas Applause honeycomb shades. With proper ® installation, operation, and care, your new shades will provide years of beauty and performance. Please thoroughly review this instruction booklet and the enclosed packing list before beginning the installation. -
Page 5: Installation
Installation INSTALLATION OVERVIEW Shade Brackets Width Required Your order will include the correct number of installation ■ 12" – 36" brackets for your shade width, as shown in the table. " – 72" For end mounts, only two brackets are used up to the ➤... -
Page 6: Mount The Installation Brackets - Inside Mount
Installation MOUNT THE INSTALLATION BRACKETS — INSIDE MOUNT Measure 2" from each jamb for bracket location. ■ If more than two installation brackets came with your order, space additional bracket(s) ➤ evenly between the two end brackets and mark their location. Mount into wood whenever possible. -
Page 7: Mount The Installation Brackets - Outside Mount
Installation MOUNT THE INSTALLATION BRACKETS — OUTSIDE MOUNT Center the headrail over the window opening at the desired height. Use a pencil to lightly ■ mark each end of the headrail on the mounting surface. Alternatively, measure the width of the headrail and use that width to mark the ➤... - Page 8 Installation Attach the installation or extension brackets using the screws provided. ■ IMPORTANT: The front edges of the installation brackets must be level and aligned to each other. If using spacer blocks, first attach the installation bracket to the " ■...
-
Page 9: Mount The Installation Brackets - End Mount
Installation MOUNT THE INSTALLATION BRACKETS — END MOUNT " End mount the headrail when conventional mounting techniques will not work — for example, Minimum in an arched window opening. Position the end mount brackets so that the top of ■ the attached installation brackets is at the ordered Ordered height of the shade. -
Page 10: Install The Shade
Installation INSTALL THE SHADE The front of the bracket fits under the groove. Fit the front channel on top of the headrail onto the front ■ Bracket lip of installation brackets. Push the headrail up and back until it snaps into place. ■... -
Page 11: Attach The Universal Cord Tensioner(S)

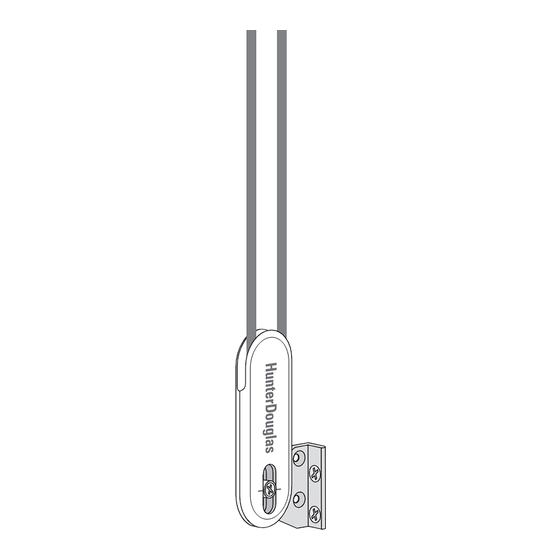

Installation ATTACH THE UNIVERSAL CORD TENSIONER(S) Before you proceed, you must first slide the cord tensioner(s) to the bottom of the cord loop. Insert a small screwdriver, punch, or awl through the ■ screw hole at the bottom of the cord tensioner. Move the screw hole down to the indicator line to ■... -
Page 12: Operation
Operation OPERATE THE SHADE IMPORTANT: Duolite , Top-Down/ ™ Bottom-Up, and Two-On-One Headrail shades have two operating cords. To Lower: To Raise: Standard Bottom-Up shades have Pull Down on Pull Down on one operating cord. Rear Cord Front Cord Pull down slowly on the rear ■... -
Page 13: Troubleshooting
Operation TROUBLESHOOTING Problem The shade is hard to raise or lower, or will not raise or lower. Solution Check that the cord tensioner is mounted correctly. See the instructions included with your Universal Cord Tensioner Installation Kit. For Duolite and Top-Down/Bottom-Up Shades: The lift cords in the ™... - Page 14 Operation The shade will not fit into the installation brackets. Problem Solution Check that the installation brackets are level and aligned. Shim the installation brackets to level the headrail, if necessary. Be sure the heads of the screws are flush against the installation bracket. Check that the headrail is completely inserted into the installation brackets.
-
Page 15: Care
■ roll the back of the headrail down and out from the bracket. CLEANING PROCEDURES Hunter Douglas Applause honeycomb shades are made of anti-static, dust-resistant fabric ® which repels dirt and dust. For most fabrics, the following cleaning options are available. - Page 16 Care Bathtub Cleaning/Water Immersion CAUTION: Do not immerse the fabric-covered headrail, Venue fabric, or opaque fabrics. ™ Immerse the shade in a basin or bathtub filled with warm water and a mild detergent. ■ IMPORTANT: Never immerse the headrail into the solution. Rinse with clean water.
-
Page 17: Child Safety
See “Attach the Universal Cord Tensioner(s)” on page 9. This can prevent children from pulling cord loops around their necks. Hunter Douglas provides a cord tensioner installation kit with ■ instructions for attaching the cord tensioner. For the shade to operate properly, the cord tensioner must be correctly mounted and secured. - Page 18 NOTES...
- Page 20 2. Visit hunterdouglas.com for additional warranty information, frequently asked questions and access to service locations. 3. Contact Hunter Douglas at (888) 501-8364 for technical support, certain parts free of charge, for assistance in obtaining warranty service or for further explanation of our warranty.
