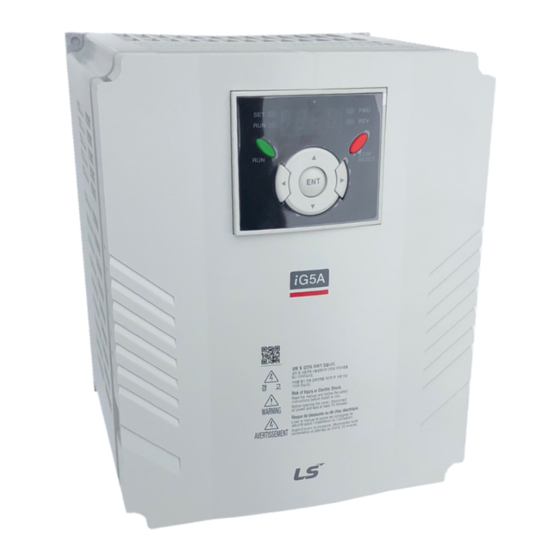

LSIS iG5A Series Manual

LSIS iG5A Series Manual

Profibus communication module
Hide thumbs Also See for iG5A Series:

Advertisement

Quick Links

Thank you for purchasing iG5A Series Profibus Communication Module
 Always follow safety instructions to prevent accidents and potential hazards
from occurring.
 Safety precautions are classified into "WARNING" and "CAUTION" and their
meanings are as follows:
WARNING
CAUTION
 The indicated illustrations on the product and in the manual have the
following meanings.
Danger may be present. Read the message and follow the instructions
carefully.
Particular attention should be paid because danger of an electric shock
may be present.
 Keep operating instructions handy for quick reference.
 Read the operating instructions carefully to fully understand the functions of
the SV-iG5A series and to use it properly.
 Be cautious, when handling the CMOS components of the
communication module.
Static may lead to malfunctioning of the product.
 Turn off the inverter power, when changing the communication cable.
Otherwise, you may damage the module or a communication error may occur.
 Make sure to insert the Communication module connector to the
inverter precisely.
Otherwise, you may damage the module or a communication error may occur.
 Check the parameter unit before setting up the parameter.
Otherwise, a communication error may occur.
SAFETY PRECAUTIONS
Improper operation may result in serious personal
injury or death.
Improper operation may result in slight to medium
personal injury or property damage.
CAUTION
SAFETY PRECAUTIONS
i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iG5A Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for LSIS iG5A Series

  • Page 1 SAFETY PRECAUTIONS Thank you for purchasing iG5A Series Profibus Communication Module SAFETY PRECAUTIONS  Always follow safety instructions to prevent accidents and potential hazards from occurring.  Safety precautions are classified into “WARNING” and “CAUTION” and their meanings are as follows:...
  • Page 2: Table Of Contents

    Table of Contents Table of Contents Chapter 1. Overview ..................1 1.1What are the Benefits of Using Profibus option module? ....1 1.2Unpacking the drive ..............1 Chapter 2. SV-iG5A Profibus Communication Option Module....2 2.1Technical Data ................2 2.2Profibus Communication Option Module ........3 2.3Profibus Terminals ................
  • Page 3: Chapter 1. Overview

    Chapter1. Overview Chapter 1. Overview This Profibus communication option module (abbreviated Profibus option module) allows a SV-iG5A inverter to be connected to Profibus network. 1.1 What are the Benefits of Using Profibus Option Module? Profibus option module allows a controlling and monitoring of inverter to be controlled via sequence program of PLC or Profibus Master Module.
  • Page 4: Chapter2. Sv-Ig5A Profibus Communication Option Module

    Chapter2. SV-iG5A Profibus Communication Option Module Chapter 2. SV-iG5A Profibus Communication Option Module 2.1 Technical Data Device Type Profibus DP Slave Auto Baudrate Detect Supported mode Synchronization Mode Supported mode Freeze Mode Supported mode Max. Input Length 8 words Max. Output Length 8 words 9.6K, 19.2K, 93.75K, 187.5K, 500K, 1.5M, Baudrate Support...
  • Page 5: Profibus Communication Option Module

    Chapter2. SV-iG5A Profibus Communication Option Module 2.2 Profibus Communication Option Module Status LED Remote/Portabel KPD Connector Main Connector PNP/NPN Select Switch Fault Contactor Control Connector Terminal Resistor Select Switch Profibus Connector Safety Connector Fault Contactor Connector Figure 1 Profibus Communication Option Module...
  • Page 6: Profibus Terminals

    Chapter2. SV-iG5A Profibus Communication Option Module 2.3 Profibus Terminals ① ② ③ ④ ⑤ Figure 2 Profibus Terminals Signal Description Send/Receive data Plus 1 Send/Receive data Negative 1 Shielded Ground Send/Receive data Plus 2 Send/Receive data Negative 2 Table 2 Signal Description...
  • Page 7: Control Terminals

    Chapter2. SV-iG5A Profibus Communication Option Module 2.4 Control Terminals Terminals Names of Terminal Electrical Information P1 ~ P4 Multi-function input terminal 1-4 Common terminal Output voltage: 12V Power supply for Aux. volume Max. output current: 10mA resistor Volume resistor: 1 ~ 5 kΩ Max.
  • Page 8: Installation Procedure

    Chapter2. SV-iG5A Profibus Communication Option Module 2.5Installation Procedure  Remove the front cover (②, ③) of iG5A for Europe. Connect the Profibus option module (④) on the inner cover (⑤) of inverter.  Mount the upper front cover (②) after connecting the profibus option module (④).
  • Page 9: Instruction For Installation

    Chapter2. SV-iG5A Profibus Communication Option Module 2.6 Instruction for installation Warning) Make sure that connect Profibus option module after inverter power is disconnected. Do not install or remove Profibus option module while the power is ON. Otherwise, both Profibus option module and the inverter may be damaged. Install or remove Profibus option module when the condenser of the inverter has been fully discharged.
  • Page 10: Maximum Distance According To The Baudrate

    Chapter2. SV-iG5A Profibus Communication Option Module 2.7 Maximum Distance according to the Baudrate Total BUS length of network is differed according to the baudrate. The communication is not guaranteed if the total distance exceeds the total BUS length. Max. Extension Baudrate Max.
  • Page 11: Chapter 3. Status Diagnostic And Led Indication

    Chapter3. Status Diagnostic and LED Indication Chapter 3. Status Diagnostic and LED Indication 3.1 LED Status Indicator Profibus Option Module have 3 kinds of LED. Refer to following table for troubleshooting information provided by there LEDs. Status Description Steady Power supply on the module OK after mounting (On) the option module on the inverter.
  • Page 12 Chapter3. Status Diagnostic and LED Indication ☞Check fault Blinking Communication function of inverter. ☞Check connector every Communi- is not available second cation error between connection with CPU with inverter inverter and between Profibus option module. option module and inverter. ☞Check Configuration Blinking Data is...
  • Page 13 Chapter3. Status Diagnostic and LED Indication ☞Check the station ID between designated Profibus option module station ID set in configuration Wrong Station tool and station ID set in keypad of inverter. In addition, check that station ID is unique in the network.
  • Page 14: Chapter 4. Inverter Parameter

    Chapter4. Inverter Parameter Chapter 4. Inverter Parameter 4.1 Profibus Communication Parameter List Name of Default Code Range Description Parameter Value Select No.4 FieldBus if you 0. Keypad want to command the 1. Fx/Rx-1 Operation 1. Fx/Rx- operation of inverter via Setting 2.
  • Page 15 Chapter4. Inverter Parameter Number of Set the number of Status Para Status used. Setting Set the address of status Para Status-1 h000A 0~hFFFF read from Profibus master. Para Status-2 h000E 0~hFFFF Para Status-3 h000F 0~hFFFF Para Status-4 h0000 0~hFFFF Para Status-5 h0000 0~hFFFF Para Status-6...
  • Page 16: Profibus Communication Parameters

    Chapter4. Inverter Parameter 4.2 Profibus Communication Parameters 4.2.1Communication option module name - C 3 FBus ID It displays the name of option module installed on the inverter. It displays ‘PnEt’ when Profibus option module is installed correctly and it has no fault. 4.2.2 Operation setting method - drv It sets the operation setting method of inverter.
  • Page 17: Decision Time For Lost Command - I63

    Chapter4. Inverter Parameter 4.2.5Decision time for lost command - I63 To use this function, ‘drv’ have to be set to ‘4’ (FieldBus) or ‘Frq’ to ‘9’ (FieldBus). Operation setting method Frequency setting method Selection of operation in Lost Command Decision time for Lost Command communication restarts in a decision time of Lost Command, it is not recognized for error.
  • Page 18: Led Indication For Communication Status - C5

    Chapter4. Inverter Parameter duplicated in the network. If station ID is changed, ERR LED on the Profibus option module is flickered every 3 seconds. The number of changed Para Control must be applied to Profibus option module. Set C99 (Comm Update) to ‘1’ when Station ID had been changed.
  • Page 19: Para Status 1~8 - C31~C38

    Chapter4. Inverter Parameter 4.2.10 Para Status 1~8 – C31~C38 Number of Para Status setting C31~C38 Para Status1~Status8 setting It determines that what status information will be sent to master through Profibus communication. Para Status 1~8 sets with the type of inverter address. The address is for inverter common area and inverter keypad parameter.
  • Page 20: Para Control 1~8 - C51~C58

    Chapter4. Inverter Parameter If C50 (the number of Para Control) is changed, ERR LED on Profibus option module is flickered every 3 seconds. If ‘Number of Para Control setting’ is changed, set ‘C99(Comm Update)’ to ‘1’ to apply the changed number of Para Control to Profibus option module.
  • Page 21: Comm Update - C99

    Chapter4. Inverter Parameter 4.2.13 Comm UpDate – C99 Station ID setting The number of Para Status setting The number of Para Control setting Comm UpDate After changing Station ID, the number of Para Status, and the number of Para Control, set the Comm Update to ‘1’. The changed value will be applied to Profibus option module after Comm Update.
  • Page 22: Chapter 5. Gsd File (Electronic Data Sheets)

    Chapter 5. GSD File Chapter 5. GSD File (Electronic Data Sheets) It contains the information of Profibus option module. The profibus configuration software needs GSD file. You can download GSD file from technical support in LSIS website. (http://eng.lsis.biz)
  • Page 23 Warranty Warranty Installation Maker LS Industrial Systems Co., Ltd. Date SV-iG5A Warranty Model No. Profibus Communication Period Option Module Name Customer Address Information Tel. Name Sales Office Address (Distributor) Tel. Warranty period is 12 months after installation or 18 months after manufactured when the installation date is unidentified.
