Summary of Contents for Gilson PIPETMAN G
- Page 1 Quick Guide...
-
Page 2: Parts Checklist
Eight single channel models cover a volume range from 0.2 µL to 10 mL. Eight multichannel models cover a volume range from 1 µL to 300 µL. PIPETMAN G is identified by a visual blue ring. NOTICE PIPETMAN G pistons need to be lubricated. Parts Checklist Single models ●... -
Page 3: Specifications

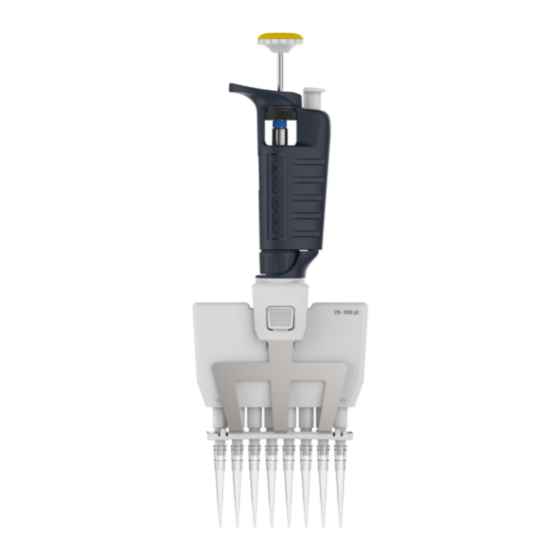

DIAMOND tip Figure 2 PIPETMAN® G multichannel and single models Specifications PIPETMAN G is a high quality pipette that offers excellent accuracy and precision. The data provided in Maximum Permissible Errors table on page 5 were obtained using PIPETMAN® DIAMOND Tips. - Page 4 (µL) SYSTEMATIC RANDOM SYSTEMA TIC RANDOM ERROR (µL) ERROR (µL) ERROR (µL) ERROR (µL) PIPETMAN G SINGLE CHANNEL P2G (P/N F144054M) WITH D10 OR DL10 TIPS ± 0.024 ≤ 0.012 ± 0.08 ≤ 0.04 ≤ 0.012 ≤ 0.04 ± 0.025 ±...
-
Page 5: Setting The Volume
Setting the Volume The volume of liquid to be aspirated is set using the volumeter. The dials are colored either black or red to indicate the position of the decimal point, depending on the model (refer to Figure 3). P10G P20G The volume is set by turning Px10G... -
Page 6: Fitting The Tips
* Using the broad ejector spacer D10, you can adapt a D10 tip (see above). PIPETMAN G is equipped with a stainless steel tip ejector and can also be used with a plastic tip ejector, available as an accessory. Refer to PIPETMAN G User’s Guide LT801122, ACCESSORIES. -
Page 7: Pre-Rinse The Tips
Ejector Spacer for PIPETMAN G 10 µL Multichannel Models According to the tip used, D10 or DL10, you may have to exchange the ejector spacer. The broadly spaced one is for D10, and the narrowly spaced one is for DL10. - Page 8 Press the push button to the first stop (this corresponds to the set volume of liquid). Hold the pipette vertically and immerse the tip in the liquid (refer to PIPETMAN G User’s Guide LT801122) . Release the push button slowly and smoothly (to the top position) to aspirate the set volume of liquid.
-
Page 9: Maintenance
Maintenance is limited to cleaning or autoclaving the parts specified in the PIPETMAN G User’s Guide LT801122, or to replacing the push button, connecting nut, tip ejector, tip holder, seal, and O-ring. -
Page 10: Warranty
This warranty shall also be void in the event pipettes are altered or modified by any party other than Gilson or its designates. Gilson’s sole liability under this warranty shall be limited to, at Gilson’s sole option, repair or replacement of any defective components of pipettes or refund of the purchase price paid for such pipettes. - Page 11 NOTES PIPETMAN® G QUICK GUIDE...
- Page 12 LT801624/C | ©2019 Gilson, Inc. All rights reserved.
