Proline BVC Silentpro Operating Instructions Manual page 6

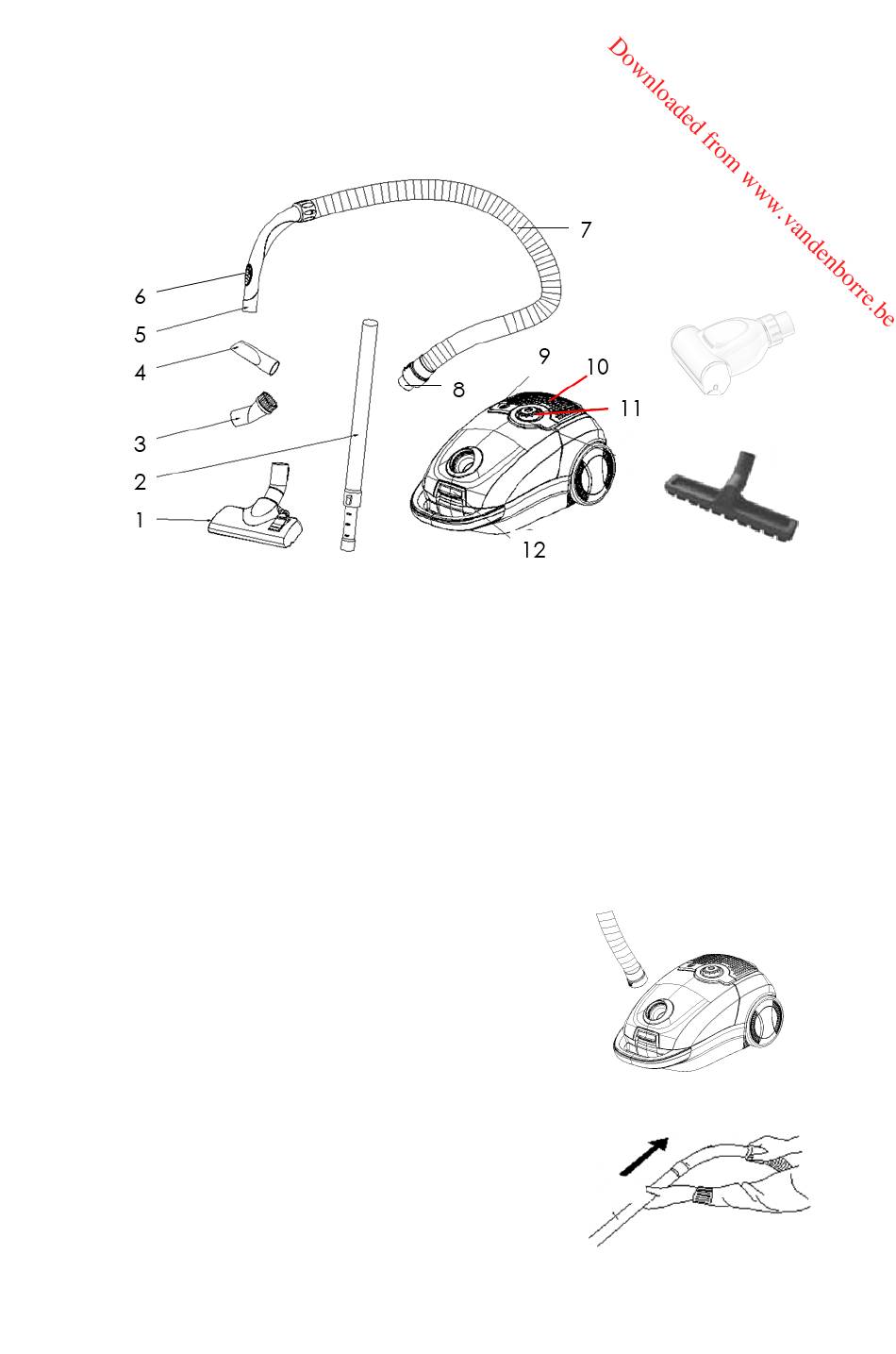

DESCRIPTION
1. Floor brush
2. Telescopic tubes
3. Dusting brush
4. Crevice tool
5. Hose handle
6. Airflow regulator
7. Hose
8. Hose socket
ASSEMBLY
Always remove the plug from the mains socket before assembling or disassembling
accessories.
Hose
1. To fit the hose, push it firmly into the hose socket on
the front of the appliance until the hose clicks into
place.
2. To remove the hose, press the release tabs on the hose
sides and pull the hose out of the appliance.
Connecting tube and accessories
1. Attach the bigger end of the tubes into the hose handle.
2. Adjust the tubes to your desired length.
9. Cord rewind button
10. Air outlet grille
11. Power button with variable suction
power knob
12. Front cover clamp
13. Pet brush
14. Parquet brush
EG-4
13
14
