3 USE
1

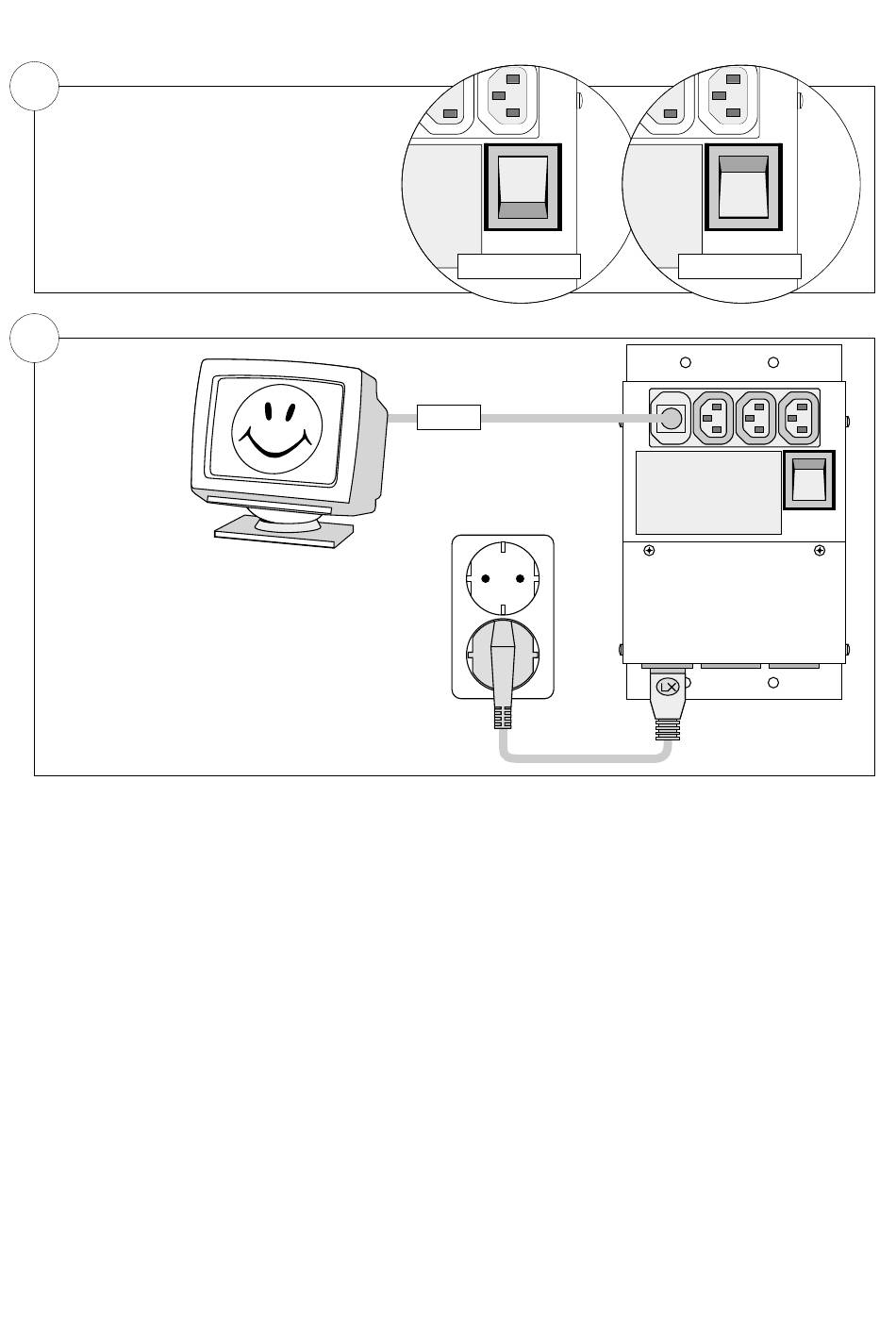

Be sure that during normal
operation the switch is in
position 'load on UPS'
2
If the bypass switch
is in position 'load on bypass'
the UPS can be disconnected
without interfering the load
connected to the output(s) of
the bypass box.
Be careful: the load is no longer
protected against mains disturbances!

4 SPECIFICATIONS

Power supply
Max. input current
Input
Output
Transfer time
Weight (kg)
Dimensions (hxwxd)
Operating temp.
To load
: 220-240Vac, 50-60Hz
: 10A (plugged) / 16A (hard wired)
: 1 x IEC 320 socket (male) or screw terminals
: 4 x IEC 320 sockets (female) or screw terminals
: 5-15mS
: 0.78 (plugged) / 0.74 (hard wired)
: 53 x 130 x 204 mm
: -10 to +40 °C
Load on UPS
3
Load on bypass
