UNI-BUG II WITH STITCH MODULE

The UNI-1550 is a modification of the UNI-BUG II, that has been adapted
to connect to a Stitch Module on a remote pendant.
A rotary selector switch enables the Stitch Module, and transfers control
of the speed, travel times and weld contactor to the pendant. For safety
reasons, the Weld Contact Toggle Switch on the UNI-BUG must be set in
the "0" or OFF when using the UNI-BUG in the Remote mode, or the weld
contactor will not operate.
With the Stitch Module removed, the unit will function as a standard
UNI-BUG II. The "Remote" position of the Rotary Switch will be disabled.

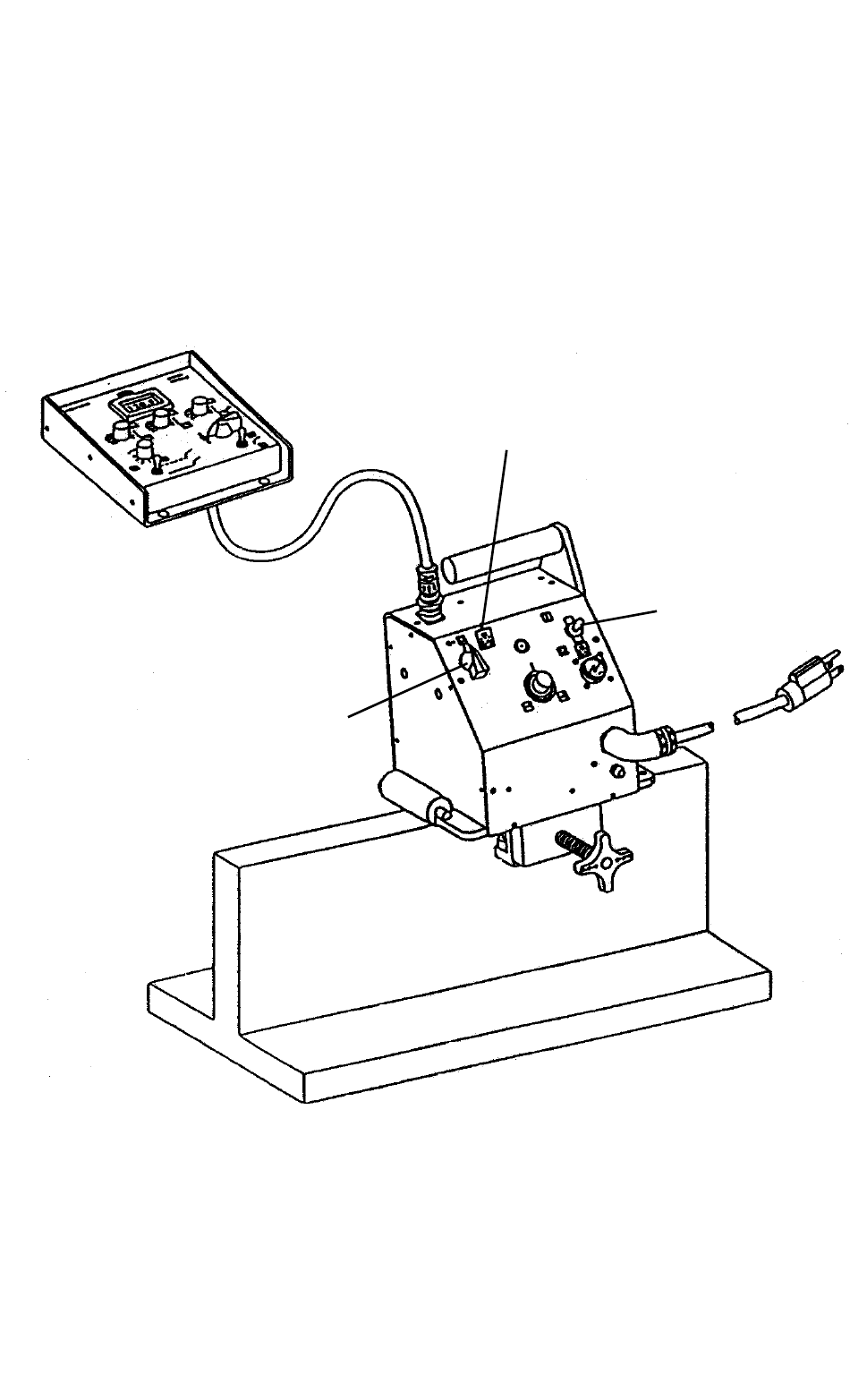

UNI-BUG II w/Stitch Module
UNI-1550 120 VAC/50-60/1
UNI-1552 240 VAC/5O-60/1
UNI-1554 42 VAC/50-60/1
Rotary Travel
Switch
"Remote" Position
Weld Contact
Toggle Switch
17
