Exploded View / Parts List Bug-1795 Compact Corner Follower - Bug-O Systems UNI-BUG II Instructions And Parts Manual

BUG-1795 COMPACT CORNER FOLLOWER
The UNI-BUG II can be used for
making fillet welds with the addition
of a BUG-1795 Compact Corner
Follower, shown at right.

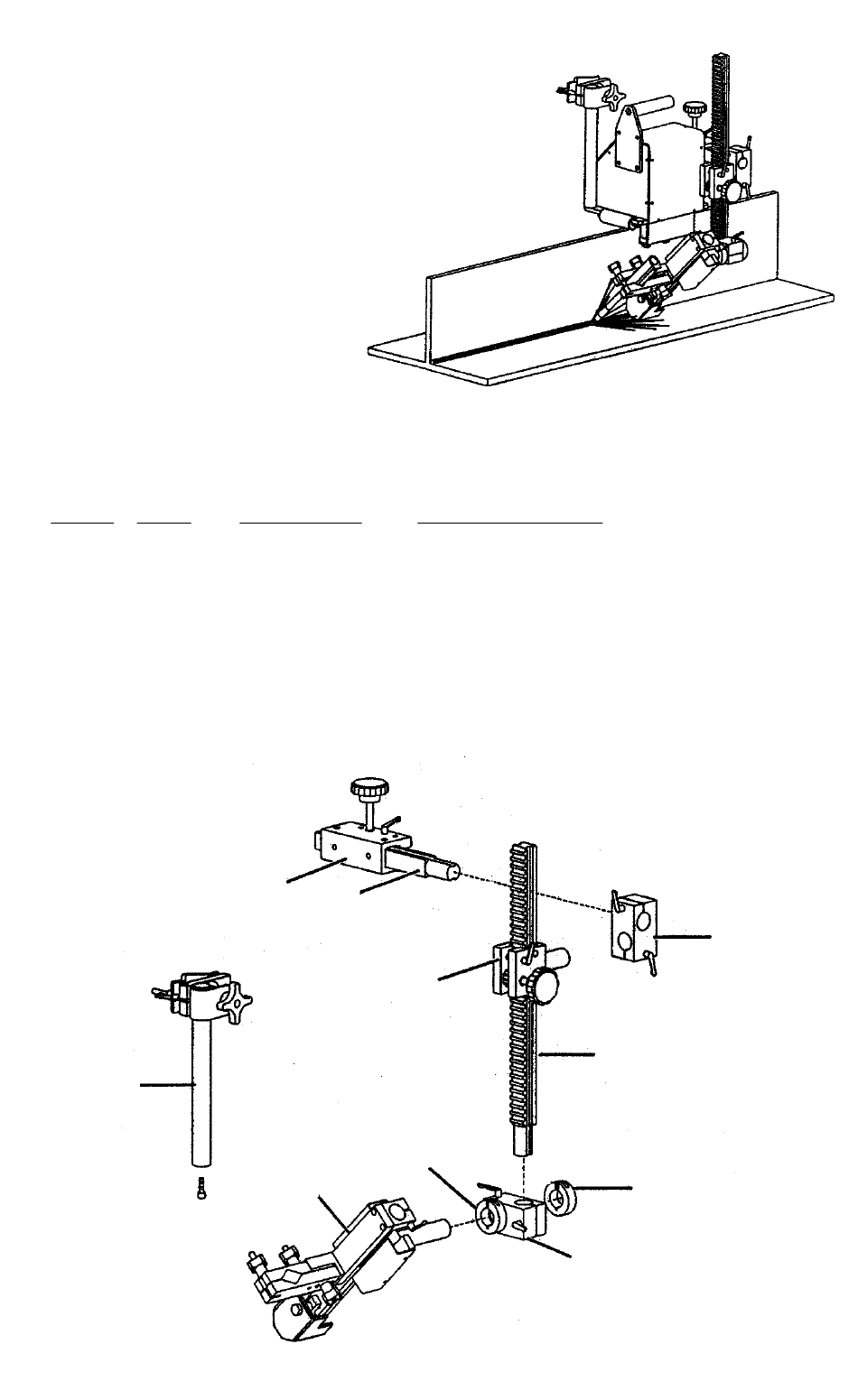

EXPLODED VIEW / PARTS LIST /
BUG-1795 COMPACT CORNER FOLLOWER
ITEM QTY
1 1
2 1
3 1
4 1
5 2
6 2
7 1
8 1
3
PART NO.
BUG-1796
BUG-1853
BUG-1881
BUG-5451
BUG-5462
MUG-1515
PAN-1200-L
UNI-1036
4
2
7
DESCRIPTION
Machined Rack 14"
Machined Rack 7-1/2"
Cable Anchor w/Swivel Clamp
3.5" Rackholder
Right Angle Clamp
Collar
Compact Corner Follower, Welding LH
Rackrider w/Post
8
6
5
5
1
6
13
