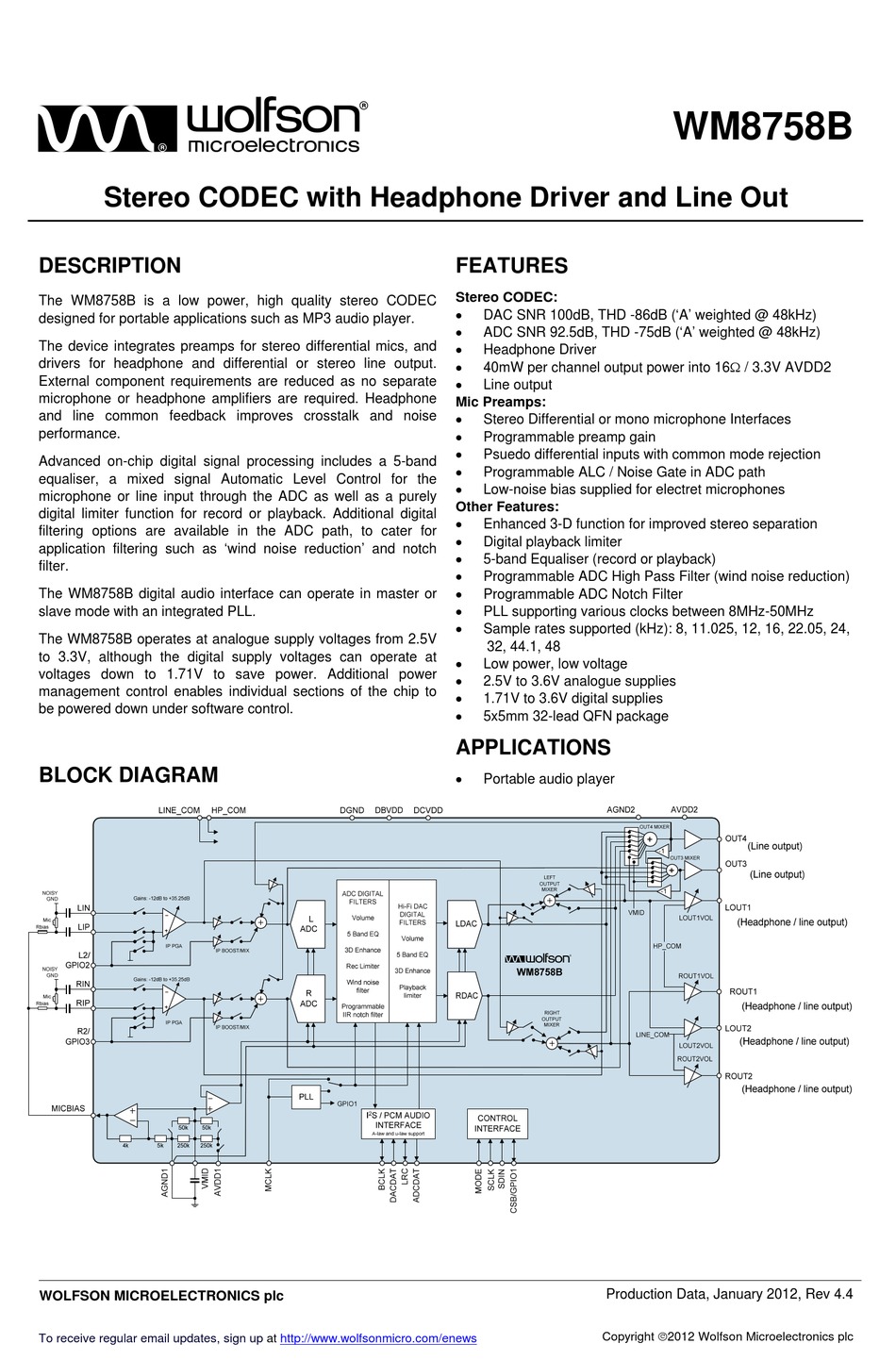

Stereo CODEC with Headphone Driver and Line Out

DESCRIPTION

The WM8758B is a low power, high quality stereo CODEC
designed for portable applications such as MP3 audio player.
The device integrates preamps for stereo differential mics, and
drivers for headphone and differential or stereo line output.
External component requirements are reduced as no separate
microphone or headphone amplifiers are required. Headphone
and line common feedback improves crosstalk and noise
performance.
Advanced on-chip digital signal processing includes a 5-band
equaliser, a mixed signal Automatic Level Control for the
microphone or line input through the ADC as well as a purely
digital limiter function for record or playback. Additional digital
filtering options are available in the ADC path, to cater for
application filtering such as 'wind noise reduction' and notch
filter.
The WM8758B digital audio interface can operate in master or
slave mode with an integrated PLL.
The WM8758B operates at analogue supply voltages from 2.5V
to 3.3V, although the digital supply voltages can operate at
voltages down to 1.71V to save power. Additional power
management control enables individual sections of the chip to
be powered down under software control.

BLOCK DIAGRAM

WOLFSON MICROELECTRONICS plc
To receive regular email updates, sign up
at
http://www.wolfsonmicro.com/enews

FEATURES

Stereo CODEC:
DAC SNR 100dB, THD -86dB ('A' weighted @ 48kHz)
ADC SNR 92.5dB, THD -75dB ('A' weighted @ 48kHz)
Headphone Driver
40mW per channel output power into 16 / 3.3V AVDD2
Line output
Mic Preamps:
Stereo Differential or mono microphone Interfaces
Programmable preamp gain
Psuedo differential inputs with common mode rejection
Programmable ALC / Noise Gate in ADC path
Low-noise bias supplied for electret microphones
Other Features:
Enhanced 3-D function for improved stereo separation
Digital playback limiter
5-band Equaliser (record or playback)
Programmable ADC High Pass Filter (wind noise reduction)
Programmable ADC Notch Filter
PLL supporting various clocks between 8MHz-50MHz
Sample rates supported (kHz): 8, 11.025, 12, 16, 22.05, 24,
32, 44.1, 48
Low power, low voltage
2.5V to 3.6V analogue supplies
1.71V to 3.6V digital supplies
5x5mm 32-lead QFN package

APPLICATIONS

Portable audio player
Production Data, January 2012, Rev 4.4
