6.2.3 Operation of the switchgear

Operating elements
• Main switch on/off (lockable in "off" position)
• The LCD shows the operating statuses of the
pumps, the controller and the frequency con -
verter. The menu selection and parameter input
are performed using the operating button. Turn
the button to change values or to scroll through a
menu level; press it in order to select and confirm:
Information appears on the display as shown in
the sample illustration below:
1
4
5
4

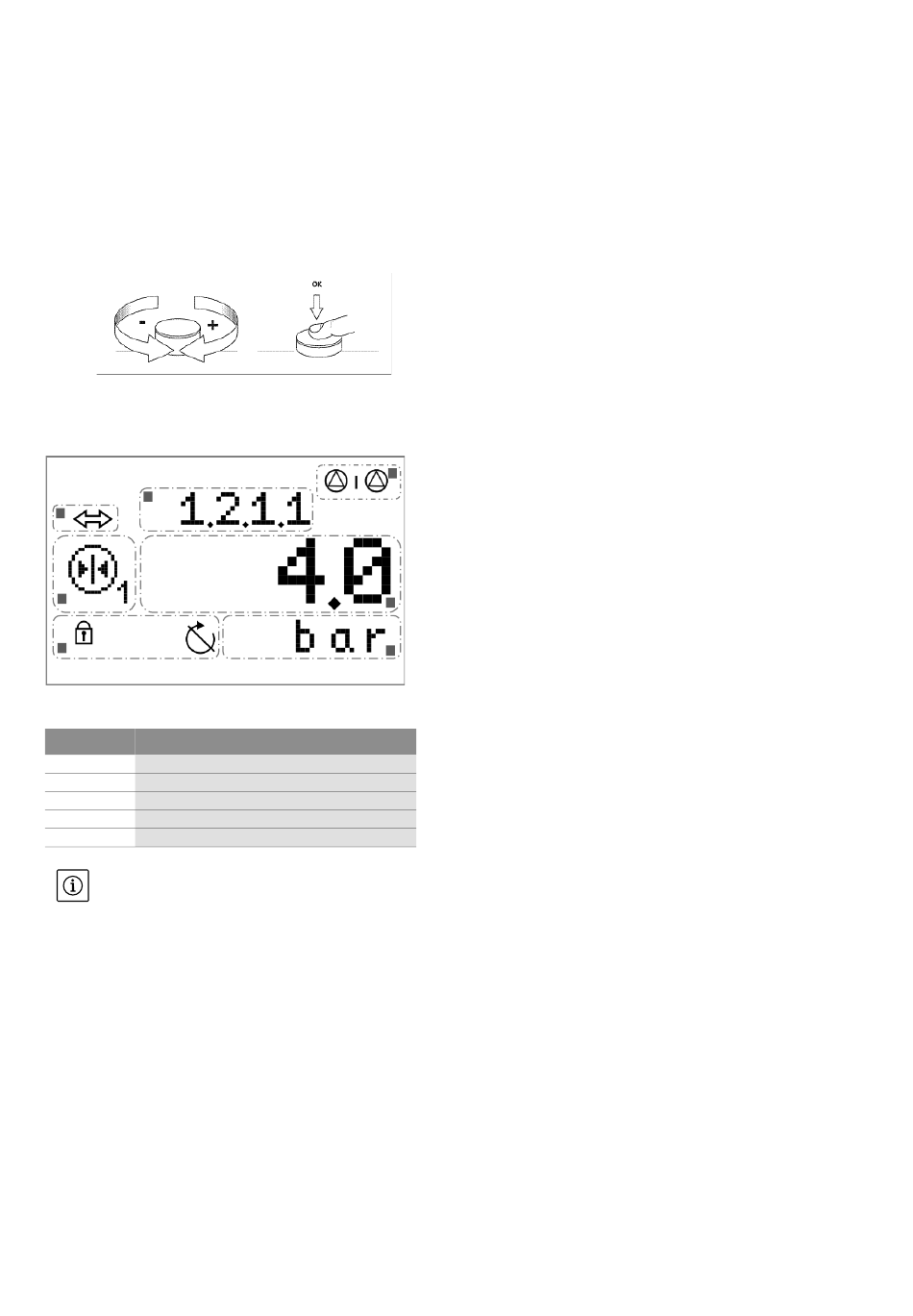

Fig. 9: Display structure
Item Description
1 Menu number
2 Value display
3 Units display
4 Standard symbols
5 Graphic symbols
NOTICE
• The display backlight is switched off if there is no
operation for 6 minutes.
• The display screen switches to the main screen
after 6 minutes without operation.
• If the red fault LED lights up or flashes immedi -
ately after activation, observe the error code
information on the display!
• You can find an overview of all symbols in the
appendix!
Installation and operating instructions Wilo-Control SC-Booster (SC, SC-FC, SCe)
4
2
3
