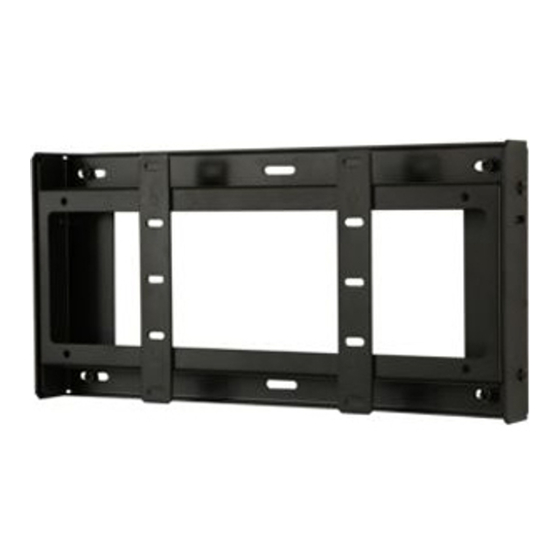

- Page 1 Installation and Assembly: Flat \ Tilt Wall Mount for VESA 400x400 Model: HT642-003 Max Load Capacity: 100 lb (45.4 kg) 3215 W. North Ave. • Melrose Park, IL 60160 • (800) 729-0307 or (708) 865-8870 • Fax: (708) 865-2941 • www.peerlessmounts.com...
- Page 2 Note: Read entire instruction sheet before you start installation and assembly. WARNING • Do not begin to install your Peerless product until you have read and understood the instructions and warnings contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, please call Peerless customer service at 1-800-729-0307.
- Page 3 Before you start make sure all parts listed are included with your product. PARTS LIST Description Qty. Part # A wall plate 201-1601 B adapter bracket 201-1931 C 1/4 x 2.5 round phillips screw 520-9521 D M5 x 12 mm socket pin serrated washer head screw 510-1064 E #14 x 2.5 wood screw 5S1-015-C03...
- Page 4 Attaching Adapter Bracket to Screen Attach adapter bracket (B) to back of plasma screen using four M8 x 16 mm phillips screws (G). Screen 400 mm 400 mm WARNING • Do not overtighten. Overtightening may cause per- manent damage to the screen. Torque to 26-35 in • lb (30-40 kg •...
- Page 5 Installation to Solid Concrete and Cinder Block Wall WARNING • When installing Peerless wall mounts on cinder block, verify that you have a minimum of 1-3/8" of actual concrete thickness in the hole to be used for the concrete anchors. Do not drill into mortar joints! Be sure to mount in a solid part of the block, generally 1"...
- Page 6 Installation to Metal Stud WARNING • Product must be mounted through drywall that has a minimum thickness of 1/2" and into metal studs, 26 gauge or heavier. • Make sure that the wall will safely support the combined load of the equipment and all attached hardware and components.
- Page 7 Attaching Mounting Bracket Using Hook On Option Attach four M5 x 12 mm serrated washer head Position slots of adapter brackets (B) onto the socket pin screws (D) to the holes on the sides of four M5 x 12 mm serrated washer head socket pin mounting bracket (A) using the 4mm security allen screws (D) attached to mounting bracket (A).
- Page 8 Mounting Bracket Using Tilt Option Remove top two M5 x 12 mm socket pin serrated washer head screws (D) attached to wall plate (A). Loosen two M5 x 12 mm socket pin serrated washer head screws (D) in slot as shown in Detail 1. Once desired tilt is established tighten two M5 x 12 mm socket pin serrated washer head screws (D) in slots.
