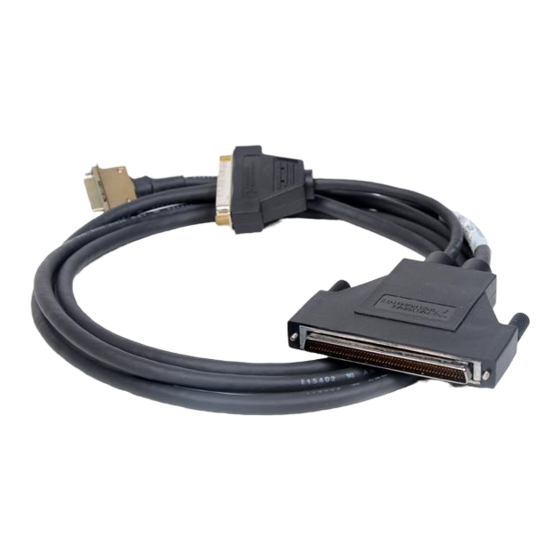

This guide describes how to attach the IMAQ D100 family of digital
camera cables to your image acquisition (IMAQ) device.
You can use the IMAQ D100 cable to connect your IMAQ device to your
digital video camera and four trigger channels. Refer to your IMAQ device
documentation for more detailed information on these signals.
To install your IMAQ D100 cable, you will need the following:
IMAQ D100 cable
IMAQ D100 Camera Cable Installation Guide
Your IMAQ device and documentation
Your computer
Your digital camera
IMAQ D2504 cable and documentation (optional)
BNC cables for trigger signal connection (optional)
Trigger signal source (optional)
