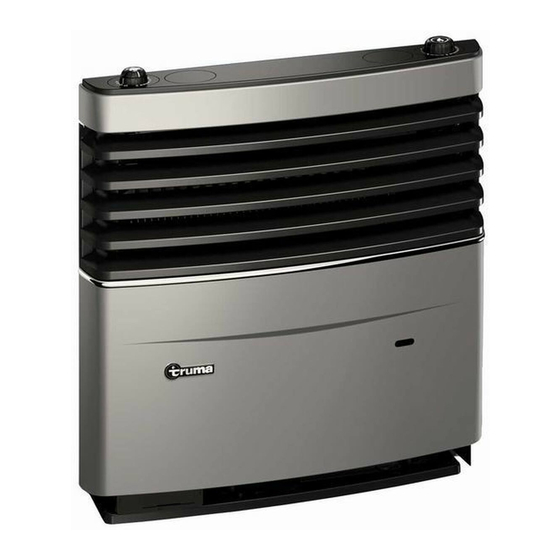

Truma S 3004 / S 5004
Operating instructions
Page 2
To be kept in the vehicle!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S 3004 and is the answer not in the manual?

Questions and answers

Summary of Contents for Truma S 3004

  • Page 1 Truma S 3004 / S 5004 Operating instructions Page 2 To be kept in the vehicle!
  • Page 2: Table Of Contents

    Truma S 3004 / S 5004 Table of contents Read the safety instructions and operating instructions carefully before starting the appliance. Symbols used ................ 2 Intended use ..............2 Intended use Truma S 3004 ................ 2 Truma S 5004 ................ 2 Safety instructions ............
  • Page 3: Safety Instructions

    An open roof window / lifting roof in the (experts) may install and repair the vicinity of the exhaust cowl may allow Truma product and carry out the function test exhaust gas to enter the interior of the vehicle. in accordance with the installation and oper-...
  • Page 4 – The vehicle owner is responsible for having Possible fire hazard! There must not the check carried out. be any combustible materials (e.g hay, leaves, fabrics) in the vicinity of the combus- tion air intake. During the initial start-up of a brand new appliance, small quantities of fumes and The combustion air intake under the ve- a slight odour may briefly occur.
  • Page 5 Missing stickers can be requested from Truma. Heating while driving For heating while driving, the UN ECE regu-...
  • Page 6: Operating Instructions

    Figure 2 1 = Control knob (thermostat) 2 = Integrated control panel for a TEB-3 Truma fan 3 = Integrated control panel for a second TEB-3 Truma fan Figure 4 4 = Blind cover 5 = Sensor surface for switching the lighting on (optional) a = Control knob / dial for fan power (1 –...
  • Page 7: Lighting

    Cleaning the heater – Accumulated dust on the heat exchanger, base plate and fan wheel of the Truma warm air system must be removed Figure 7 at least once annually. Carefully clean the fan wheel with a paintbrush or small brush.
  • Page 8: Auto Ignitor Battery Change

    Technical data – If no ignition spark is heard during start-up or if fewer than (determined in accordance with EN 624 or Truma test conditions) two ignition sparks are visible per second, the battery must S 3004 / S 5004 be replaced.
  • Page 9: Dimensions

    Dimensions S 3004 503* 102** Figure 9 S 5004 122* 533* 102** Figure 10 With decorative chrome strip ** Truma Ultraheat (optional) Measurements in mm with tolerance of + 2 mm / - 1 mm Subject to technical changes.
  • Page 10: Manufacturer's Warranty (European Union)

    Truma or if the Truma control unit (e.g. Truma CP plus ment, i.e. at its discretion either by repairing or replacing the or Truma iNet Box) has not been exclusively used for con- defective item.
  • Page 11 Should problems occur, please contact the Truma Service Centre or one of our authorised service partners (see www.truma.com). In order to avoid delays, please have the unit model and serial number ready (see type plate). Truma Gerätetechnik GmbH & Co. KG Service Wernher-von-Braun-Straße 12...
