Let's take a look at how the prototyping area is laid out.
Proto Area
There is plenty of space on which to prototype. There are two power buses
provided along with ground connections on both sides of the board, all .1"
spaced through holes.

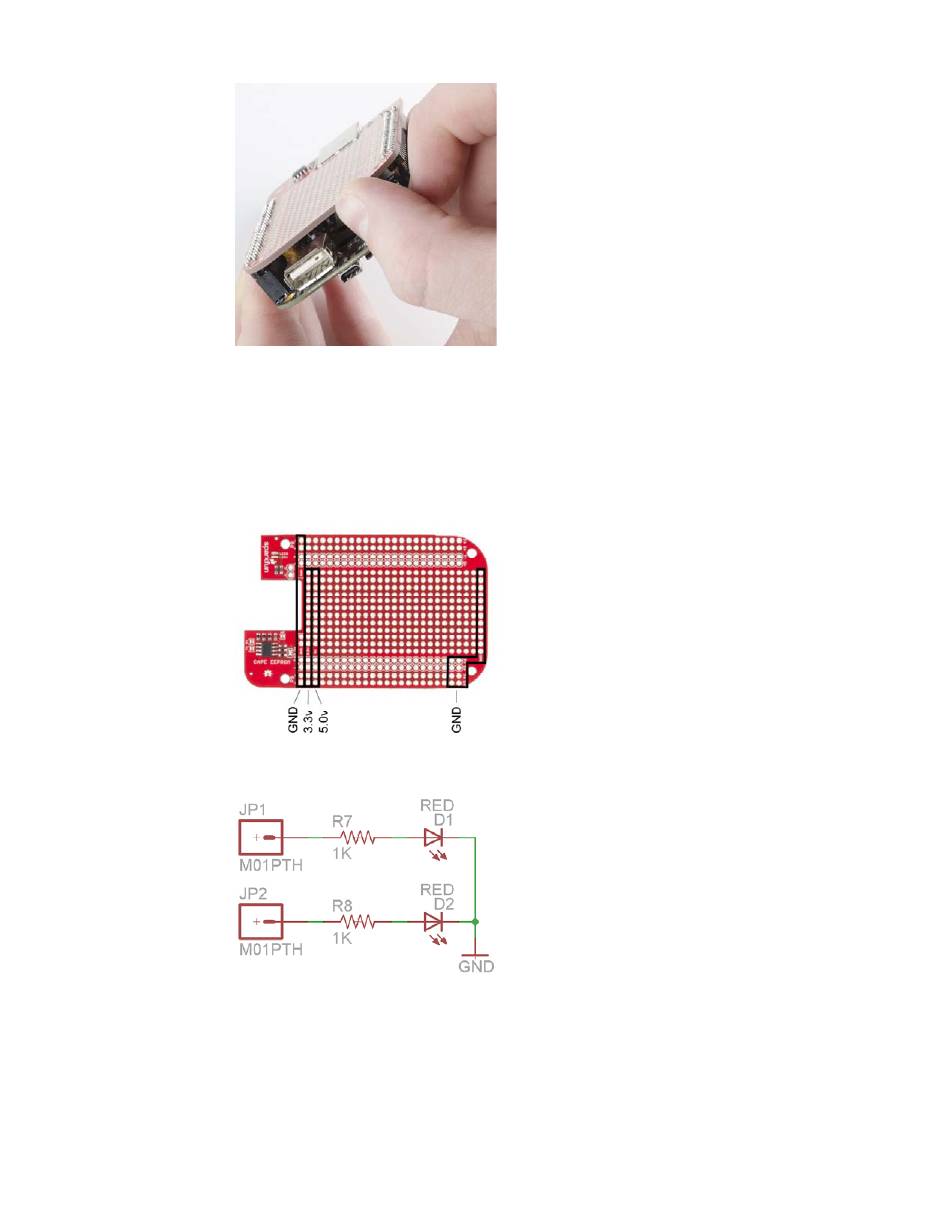

Two LED's have been provided for quick and easy debugging or general
purpose use.
Simply apply a current to each LED to illuminate. They work with both 3.3v
and 5v inputs.
Now, let's look at the EEPROM and its features.
Using the EEPROM
