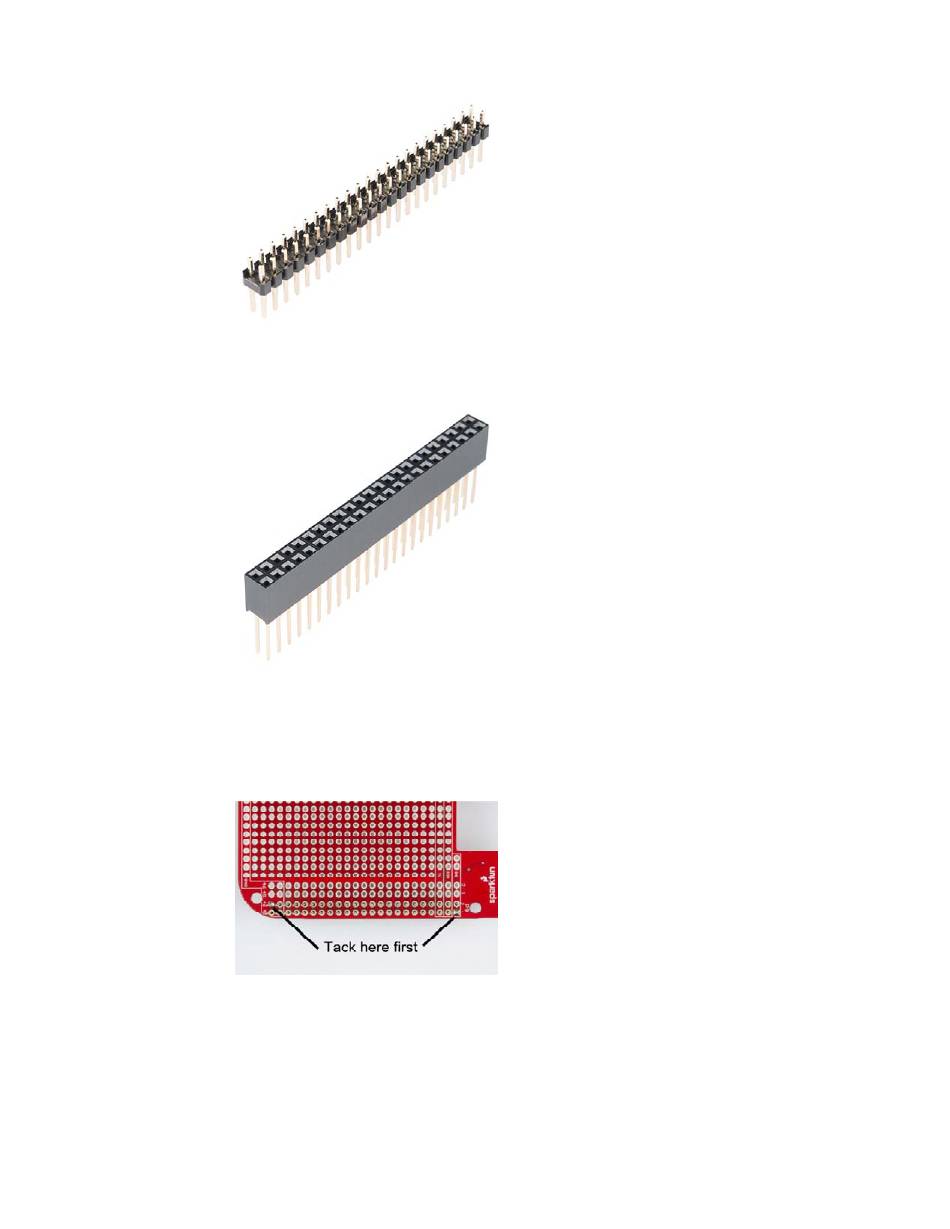

Header 2x23 (PRT-12791)
If you plan to use multiple capes, it is necessary to use stackable headers.
Stackable Header 2x23 (PRT-12790)
Soldering Headers
It is important when soldering the headers that they are held in straight.
Tack two opposite pins and check the alignment before finishing the rest of
the pins. When you are complete allow the cape to cool before inserting.
Removing capes can be quite difficult. Do not try to pull them off in one
motion. Try to rock or slowly apply pressure to the corners. Separating in
this fashion will prevent the pins from being bent.
