Installation Procedure
To install the Syn-Apps Enabled 2 x 2 Ceiling Tile Drop-In Speaker, complete the following steps while referencing
the figure below:
1. Remove the Ceiling Tile (Below Figure Showing a 2 x 2 Grid) from the Ceiling Grid. Cut the 2 x 4 Ceiling Tile in
Half if using a 2 x 4 Grid.
2. Place the Cross T* in the Middle for Support (Only on a 2 x 4 Grid).
3. Use a Flat Blade Screwdriver to Pry the Seismic Tether Bracket(s) on the 2 x 2 Ceiling Tile Speaker Assembly.
4. Install Eyebolt(s) or Nail(s) to the Joist.
5. Connect the Network Cable to the Network Port and Wire(s) to the Terminal Block, etc. to the 2 x 2 Ceiling Tile
Speaker Assembly.
6. Use Steel Wire(s) to Connect Seismic Tether Bracket(s) to the Eyebolt(s) or Nail(s). Place the 2 x 2 Ceiling Tile
Speaker Assembly on to the Ceiling Grid and the Cross T* (see

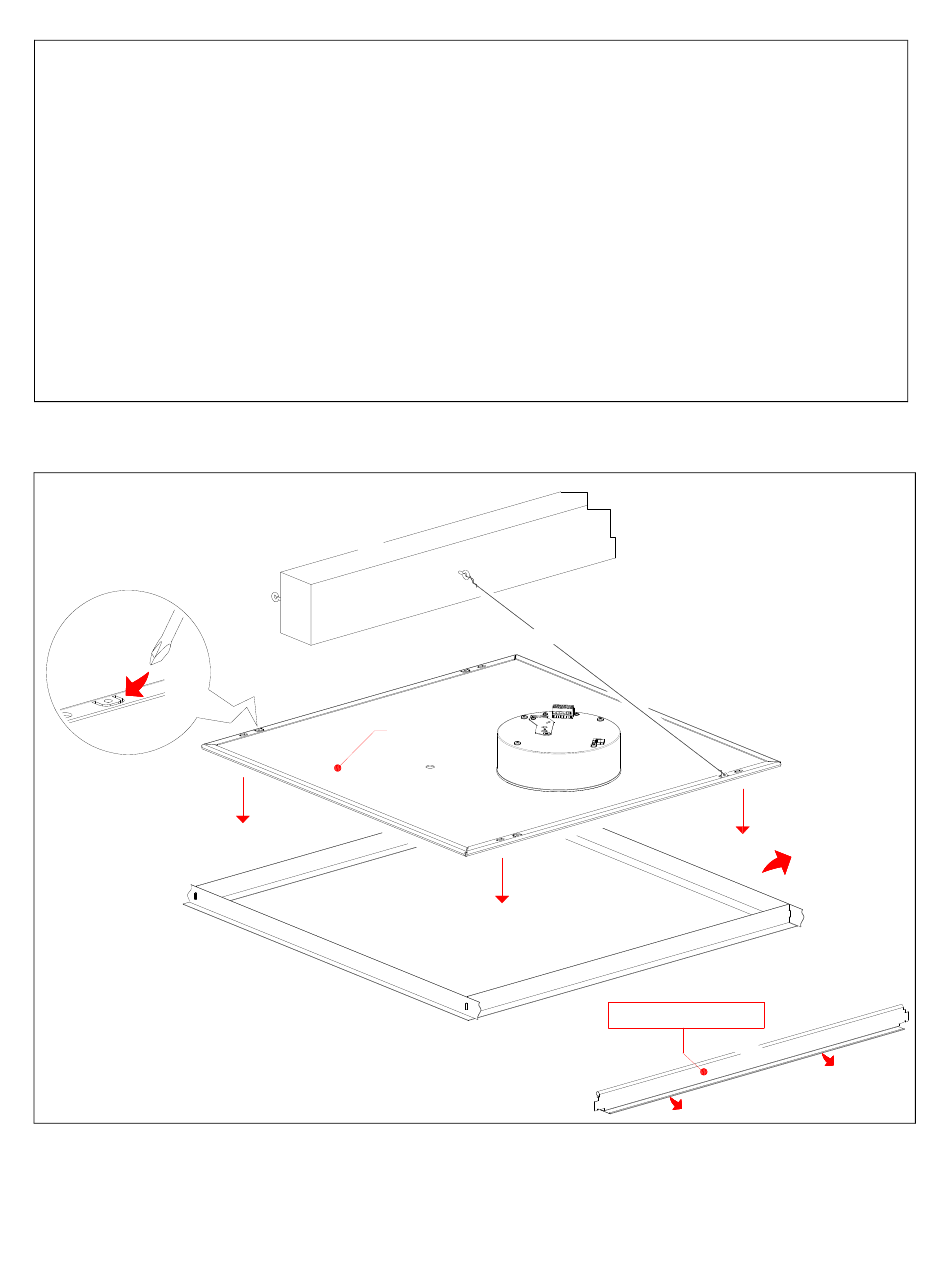

Installing the Syn-Apps Enabled 2 x 2 Ceiling Tile Drop-In Speaker
3
Use a Flat Blade Screwdriver
to Pry Up the Seismic Tether Bracket
© 2020, CyberData Corporation, ALL RIGHTS RESERVED.
Joist
*
2 x 2 Ceiling Tile
Speaker Assembly
*
Drop-in the 2 x 2 Ceiling Tile Speaker Assembly
Step 2).
Eyebolt / Nail
4
Steel Wire
*
5
*
6
2
931747A
*
Ceiling Tile
Install Cross T (Not Included)
Only on a 2 x 4 Grid
Cross T
Quick Reference
1
Remove
