Debug Interface

SIM800C could achieve software debug function through USB interface. When powering on the module,
connect USB_VBUS, USB_DP, USB_DN, and GND to PC, then install the driver following the prompts, a
UART port could be recognized by PC, customer could achieve the software Debug with this UART port.

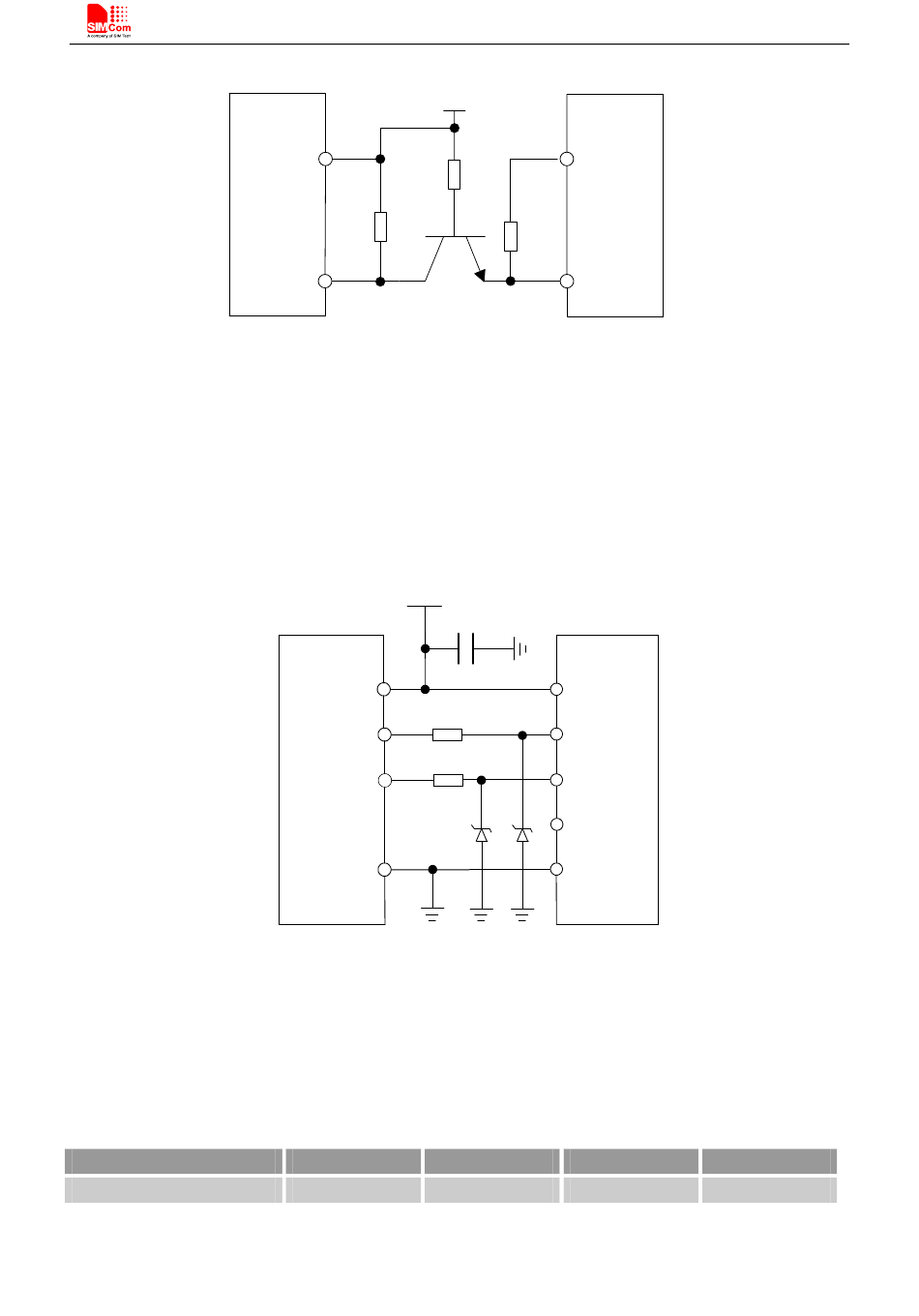

SIMCom recommended the following connected diagram:
The TVS on USB data line should be less than 5pf, and traced by differential forms.
Note: please reserve the USB interface or test point for the further debugging
Table 10: USB_VBUS operation voltage
