PREPARING AND INSTALLING THE EVAPORATOR UNIT
Required Tools:
•
Drill
•
5/32" drill bit
•
1/4" socket drill bit
Thermostat wire routing
for optional 24V thermostat (NOT INCLUDED)
Page 10 | 1-855-235-5271
•
1/4" wrench
•
Phillips-head screwdriver
•
Tape measure
DRAIN PAN

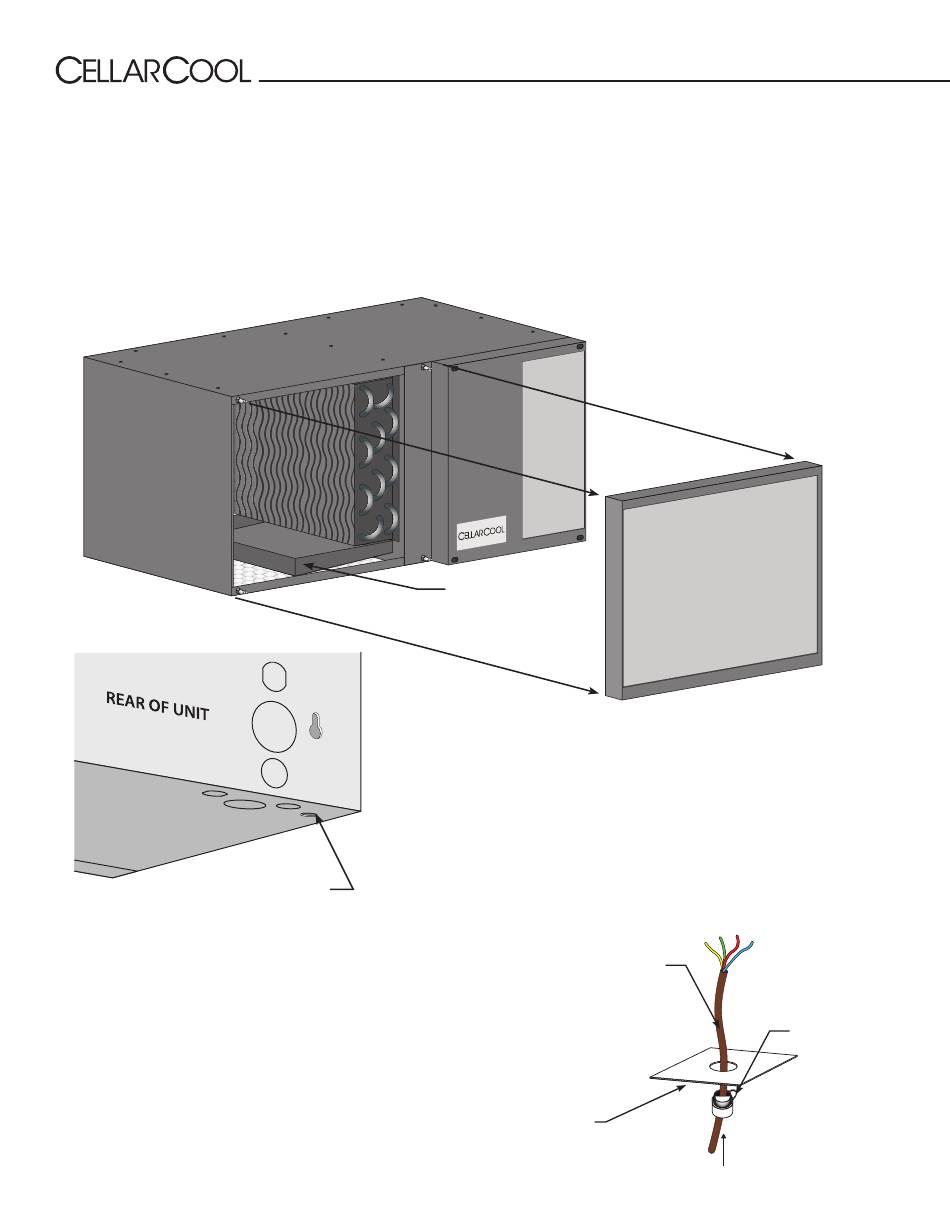

1. Pull the filter grille away from the evaporator unit.
2. Cut the zip tie holding the circular connectors and wires
on the rear left corner of the interior of the unit.
3. Unscrew the nut attached to the circular connector.
4. Install strain relief around thermostat wires if routed the
circular connector in the bottom corner of the unit (see
illustration).
•
Brazing torch
•
Drywall saw
•
Ladder
Thermostat
wire
Unit
panel
•
Level
•
Pliers
•
Pencil
Strain
relief
