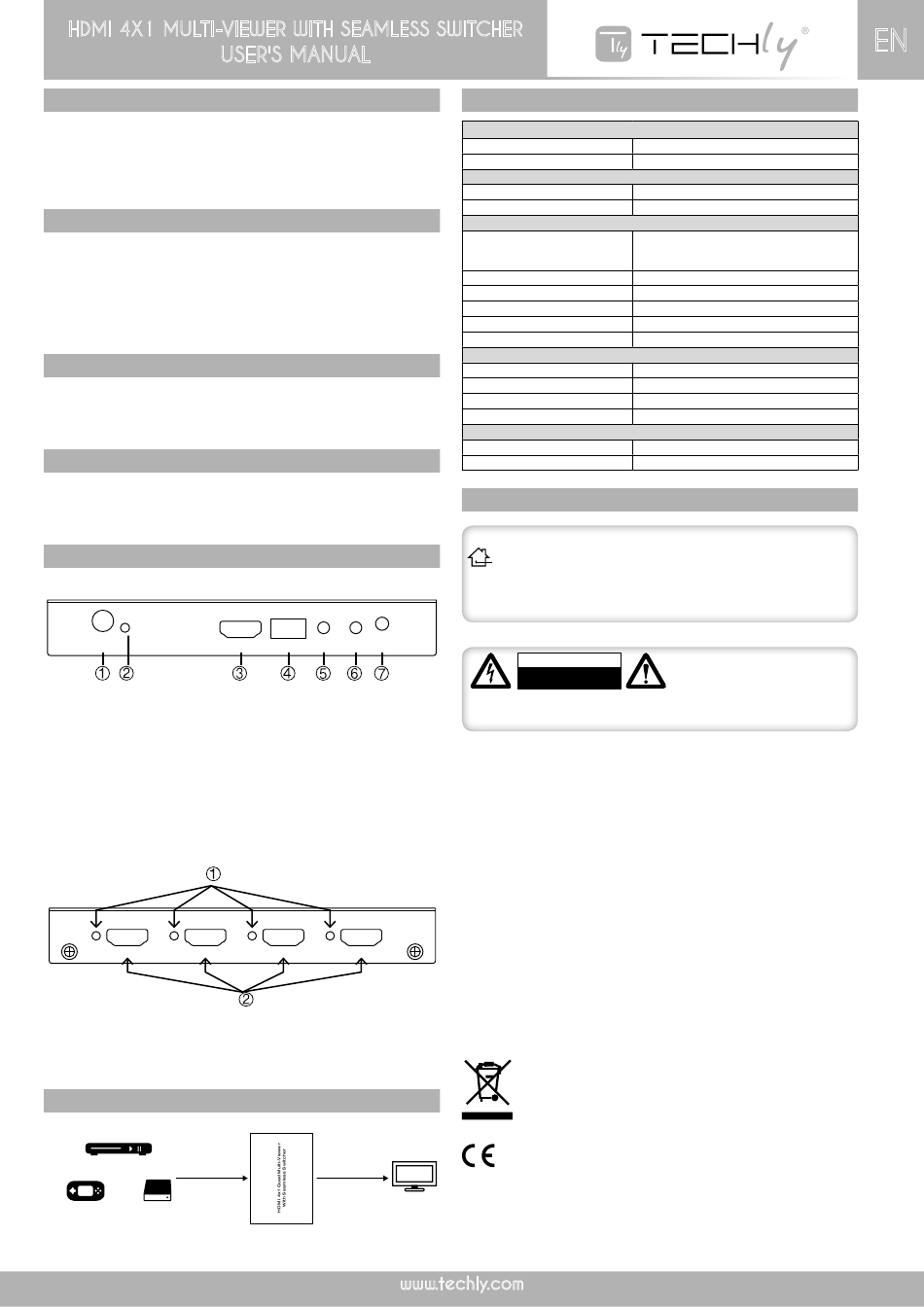

HDMI 4X1 MULTI-VIEWER WITH SEAMLESS SWITCHER
IntroduCtIon
This HDMI 4x1 switch is a Seamless switch with Multiview features with high
performance. It supports four HDMI input sources which can be displayed
on one screen with five Multiview modes: it integrates video signals from 4
different video sources for viewing on a single monitor. For the four connected
inputs, it also functions as a switch with fast switching between seamless
sources. It can be controlled by various ways, through the front panel button,
IR, RS232 control, etc.
features
• Accepts up to 4 HD sources and it is capable of scaling and dimensioning
the images and send them to a single FullHD display for Multiple view
• Compliant with HDMI 1.3a and HDCP 1.2
• Supports High Definition resolution up to 1080p
• Supports 4 in 1 Quad Multiviewer e seamless switch (with same resolution)
• Quick switch between the HDMI sources (Seamless)
• Supports scaler up and scaler down function
• Supports button, IR control, RS232 control
• Supports multi output resolution
applICatIon
• Video switch
• Surveillance for multi camera
• Car quad monitor
• Video format converter
• Multimedia panel
paCkage Contents
Before using the unit, check if following parts are contained on the package:
• Main unit x 1
• Power supply 12V DC/2A x 1
• User's manual x 1
• Remote control x1
produCt overvIew
Front panel
12V/DC, 2 A
12V/DC, 2 A
1: 12VDC: Plug the 12V DC power supply into the unit and connect the
adaptor to AC wall outlet
2: POWER LED: this blue LED illuminates when the device is connected with
power supply
3: HDMI OUTPUT: the HDMI is where you connect the HDTV or monitor with
HDMI cable for input source display
4: RS232: connect the RS232 port to the PC or notebook by RS232 cable
5: AUDIO BUTTON: press this button to select the audio from the input
sources
6: MODE BUTTON: press this button to select the multi-view display mode
7: IR: Remote control receiver window
Back panel
HDMI Input1 HDMI Input2
HDMI Input1 HDMI Input2
1: IN 1,2,3,4 LED: Those blue LED illuminates when the device is connected
with the source
2: INPUT: There HDMI inputs are where you connect the HDMI source output
from DVD, PS3, set-top box and notebook
ConneCtIon dIagram
INPUT
Blu-Ray DVD Player
HDMI x 4
Games Console HD PVR
USER'S MANUAL
HDMI Output IR
RS232 Audio Mode
HDMI Output RS232 Audio Mode IR
HDMI Input3 HDMI Input4
HDMI Input3 HDMI Input4
OUTPUT
HDMI
speCIfICatIon
Signal inputs/output
Maximum Single Link Range
HDMI input/Output connector
Operating Frequency
Vertical Frequency Range
Video amplifier Bandwidth
Resolutions
Input resolution
Output resolution
Dimension
Weight
Chassis material
Color
Environmental
Operating temperature
Operating humidity
Storage temperature
Storage humidity
Power requirement
External power supply
Power consumption (max)
safetY preCautIon and maIntenanCe
INTENDED USE
We do not permit using the device in other ways like described in this
user's manual. Use the product only in dry interior rooms. Not
attending to these regulations and safety instruction might cause
fatal accidents, injuries, and damages to persons and property. The
Blu-Ray DVD Player
Blu-Ray DVD Player
manufacturer / supplier assume no liability for damages caused by failure
to comply with the intended use.
Games Console HD PVR
Games Console HD PVR
C A U T I O N
RISK OF ELECTRIC SHOCK
DO NOT OPEN
required. Disconnect the product from mains and other equipment if a
problem should occur. Do not expose the product to water or moisture.
• Your product is not a toy and is not meant for children, because it
contains small parts which can be swallowed and can injure when used
inappropriately!
• Please install the system and devices attached to it in a way that persons
cannot be injured, or objects not be damaged for example by dropping or
stumbling.
• Please remove the packing materials, because children may cut themselves
on them while playing. Furthermore, there is a risk of swallowing and
inhalation of incidentals and insulating material.
• Avoid places with high temperatures, or humidity, or places which might
come into contact with water. Do not install the product close to openings
of air conditioners, or at places with an excessive amount of dust or
smoke.
• Do not install the product at places subject to vibration, or oscillation
• Do not modify and alter the product and any accessories! Do not use any
damaged parts.
• Keep enough space around all devices for a good ventilation and free
motion and to avoid damages.
Maintenance:
Clean only with a dry cloth. Do not use cleaning solvents or abrasives.
Warranty:
No guarantee or liability can be accepted for any changes and modifications
of the product or damage caused due to incorrect use of this product.
In compliance with EU Directive WEEE this product is marked with
this symbol. It means that used electrical and electronic products
should not be mixed with general household waste. There is a
separate collections system for these products in compliance with
WEEE directive, otherwise contaminative and hazardous substances
can pollute the environment.
With the CE sign, Techly
basic European standards and directives.
HDTV
www.techly.com
1920x1080@60
Tipo A 19 pin
50/60Hz
2.25Gbps
480i60Hz, 480p60Hz, 576i50Hz,
576i60Hz, 720p50/60Hz, 1080i50/60Hz,
1080p24/25/30/50/60Hz
720p, 1080p
148.5mm (W) x 103 mm (D) x 21.5mm (H)
342 g
Metal
Black
0°C to +70°C
10% to 85% RH (no condensation)
-10°C to 80°C
5% to 90% RH (no condensation)
12V DC@2A
10W
OUTPUT
INPUT
OUTPUT
INPUT
HDMI
HDMI x 4
HDMI
HDMI x 4
To reduce risk of electric shock,
this product should
be opened by an authorized
technician when service
ensures that the product is conformed to the
®
EN
HDTV
HDTV
ONLY
is
