Enttec DMX USB PRO Quick Start Manual page 3

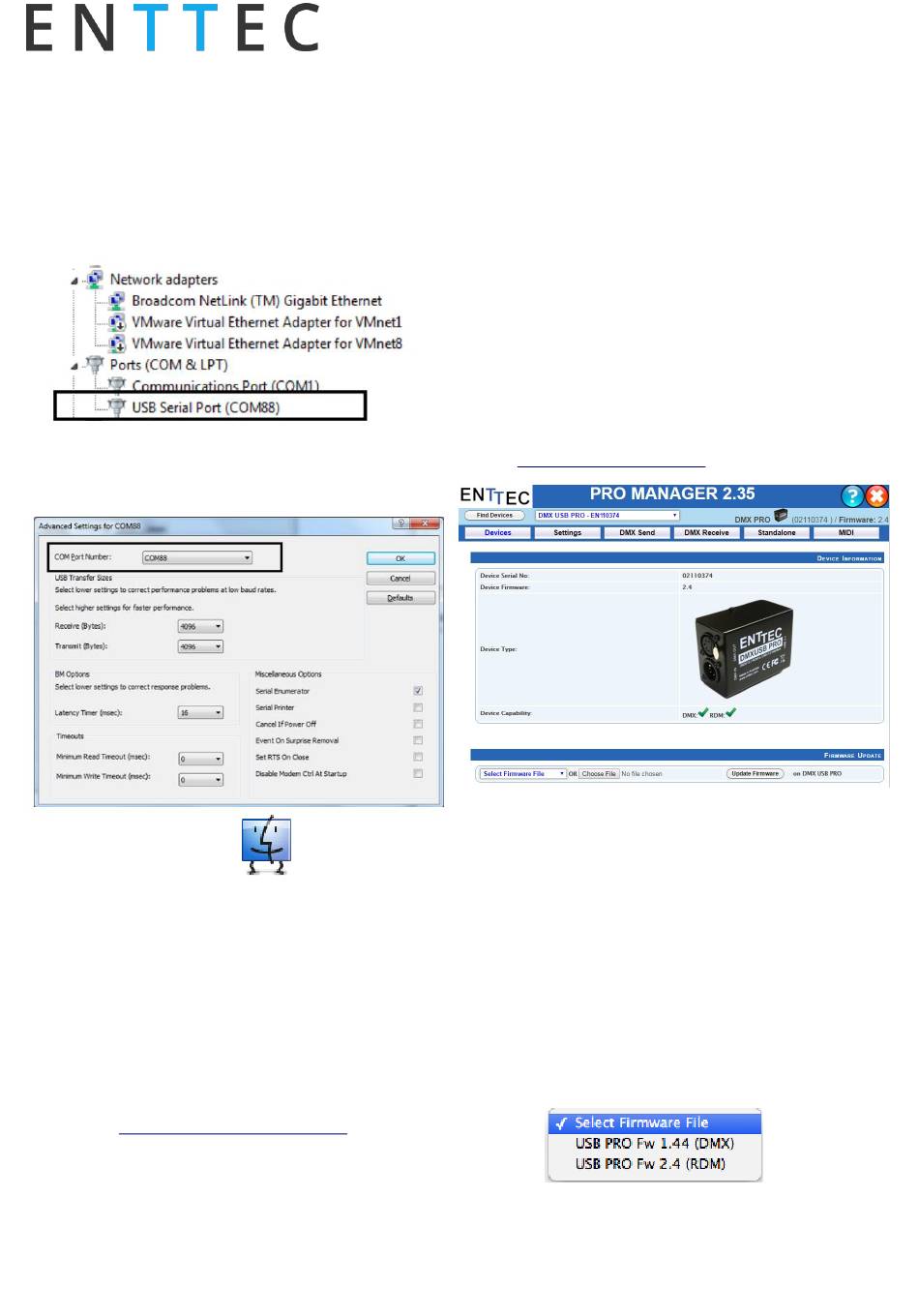

Device Manager
Open Device Manager on your Windows machine.
(Control Panel → Device Manager)
Expand the "Ports" section, and identify the DMX
USB PRO, which usually is "USB Serial Port"
Right click on it and select Properties.
"Port Settings", click on "Advanced", and you can then
change the COM Port No. under this screen
Setting up on Mac
Download and install PRO-MANAGER on your Mac .
For OSX 10.7 – OSX 10.10, FTDI "D2XX" drivers are
copied by PRO-MANAGER and made ready for use.
From OSX 10.11 onwards, 3
needed. Just install PRO-MANAGER to test your USB
PRO. Apple's USB drivers are supported by ENTTEC
USB PRO from OSX 10.11 onwards.
Follow detailed instructions on how to do this, using
FAQ/Support links on the ENTTEC DMX USB PRO
web-page: www.enttec.com/dmxubspro
For driver problems with 3
contact their respective support for more details.
Under
:
rd party drivers are not
party Apps, please
rd
PRO-MANAGER
ENTTEC provides a free cross-platform app to
configure, test and update DMX USB PRO. The App is
available for Windows on the CD or you can download
the latest version for Windows or Mac from the ENTTEC
website www.enttec.com/pro-manager
• Use this App to test your DMX USB PRO, change
default parameters (Refresh rates, Break Time),
test DMX Send and Receive.
• This App is merely a troubleshooting tool and
not Lighting Control software
PRO-Manager runs inside a browser window,
•
and it opens up the page by default, however
you can also use this address in your browser
http://localhost:55555/
From the PRO-Manager Home page, you can click the
'Find Devices' button to search for ENTTEC products
connected to your computer. Once Pro manager
discovers it, select it from the dropdown box to begin
communication.
Firmware Update
1. The following steps will guide you on how to
update the firmware, use this procedure to
reset the DMX USB PRO if it ever gets stuck or
stops responding.
Firmware 1.44 is for DMX only (recommended)
•
Firmware 2.4 is for RDM and DMX
•
From the home page of PRO-Manager, select the
firmware from the drop-down "Select firmware File"
and Click on "Update firmware"
Quick Start Manual
MANUAL-USBPRO
for more information visit:
enttec.com/ubspro
3
