VS-8FDxl Quick Start Guide
This guide helps you install and use your VS-8FDxl for the first time.
Go to
upgrades are available.
Scan for full manual
Step 1: Check what's in the box

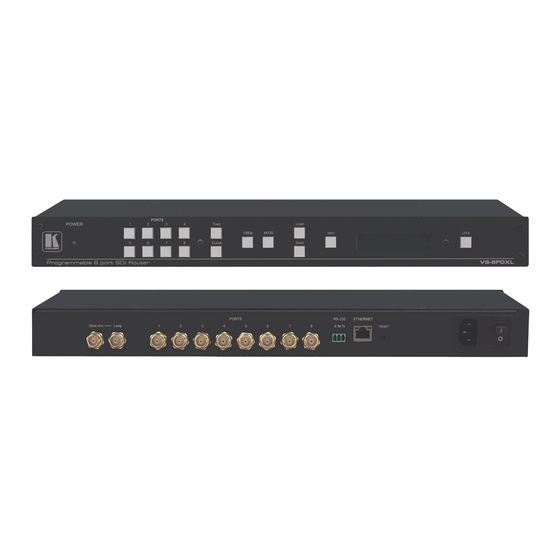

VS-8FDxl Programmable 8 port SDI Router
1 Power cord

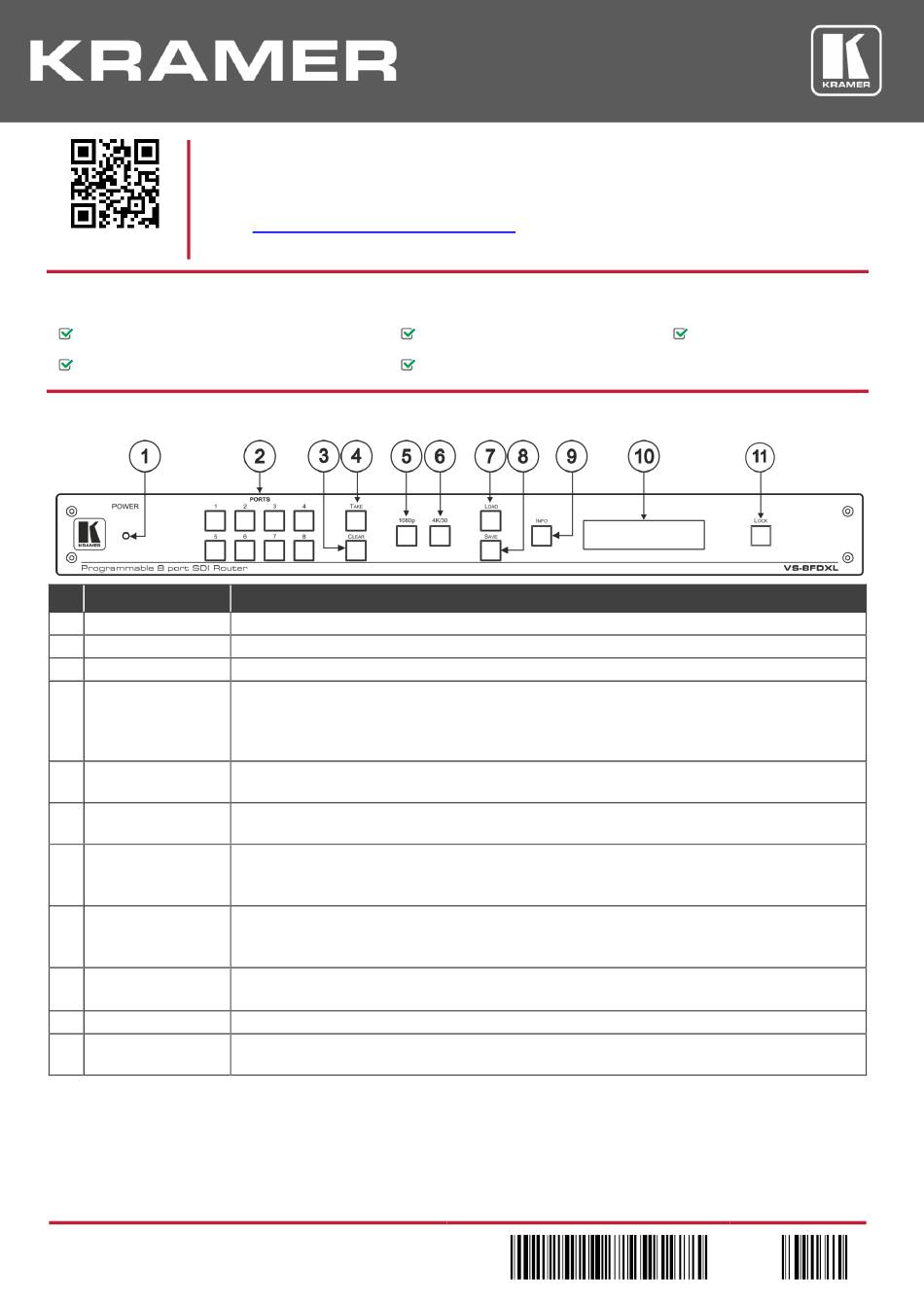

Step 2: Get to know your VS-8FDxl
#
Feature
1
POWER LED
2
PORT Buttons
3
CLEAR Button
4
TAKE Button
5
1080p Button
6
4K/30 Button
7
LOAD Button
8
SAVE Button
9
INFO Button
10
LCD Display Panel
11
LOCK Button
VS-8FDxl Quick Start (P/N: 2900-300545QS REV 1)
www.kramerav.com/downloads/VS-8FDxl
Function
Illuminated switch for turning the unit ON or OFF.
Press an output port (lights green) and then an input port (lights blue) to route an input to an output.
Press to clear a selection.
Press to enter TAKE mode.
In Take mode, press several sets of output-input ports and then press TAKE to activate all the
selected routings at the same time. (When TAKE mode is OFF, the output-input pair is switched
immediately).
Press to light the front-panel PORT button LEDs that are set to Single mode (1080p) and view them
on the LCD display panel.
Press to light the front-panel PORT button LEDs that are set to Dual mode (4K@30) and view them
on the LCD display panel.
To load a preset configuration:
Press LOAD, press the appropriate PORT preset button to select a preset configuration, and then
press TAKE to load that preset.
To save the current port configuration to a PORT preset button:
Press STORE, press the port button to which you want to save the configuration, and then press
TAKE to save the setup to that port.
Press to display general information, such as the firmware version and IP address.
Press INFO and then a specific PORT button to display the information of that selected port.
Displays the current routing status, device information and so on.
Press for about 3 seconds to lock the front panel. When locked (button is lit), press again for about 3
seconds to release the front panel lock.
to download the latest user manual and check if firmware
1 Set of rack ears
4 Rubber feet
P/N:
2 9 0 0 - 3 0 0 5 4 5 Q S
1 Quick start guide
Rev:
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Kramer VS-8FDxl
Summary of Contents for Kramer VS-8FDxl
- Page 1 VS-8FDxl Quick Start Guide This guide helps you install and use your VS-8FDxl for the first time. Go to www.kramerav.com/downloads/VS-8FDxl to download the latest user manual and check if firmware upgrades are available. Scan for full manual Step 1: Check what’s in the box...
- Page 2 Each VS-8FDxl port can be defined as an input or an output, enabling flexible configurations such as 1x7 distribution amplifiers, 7x1 routers or any other possible input-output combination. By default, the VS-8FDxl is set to operate as a 4x4 router: PORT 1 to PORT 4 as the inputs, and PORT 5 to PORT 8 as the outputs.
- Page 3 Step 5: Connect the power Connect AC power to the rear of the VS-8FDxl, switch on its power and then switch on the power on each device. Step 6: Control the VS-8FDxl via the front panel buttons and via the:...
- Page 4 Route an input to an output using the front panel buttons: Press an output (green) PORT button. Press an input (blue) PORT button to switch that input to the selected output. Technical Specifications 8 3G HD-SDI/HD-SDI/SDI video, 75Ω on BNC connectors (by default, 1 to 4 are set as inputs and 5 to Ports: 8 are set as outputs) Genlock composite video input with loop on BNC connectors...
