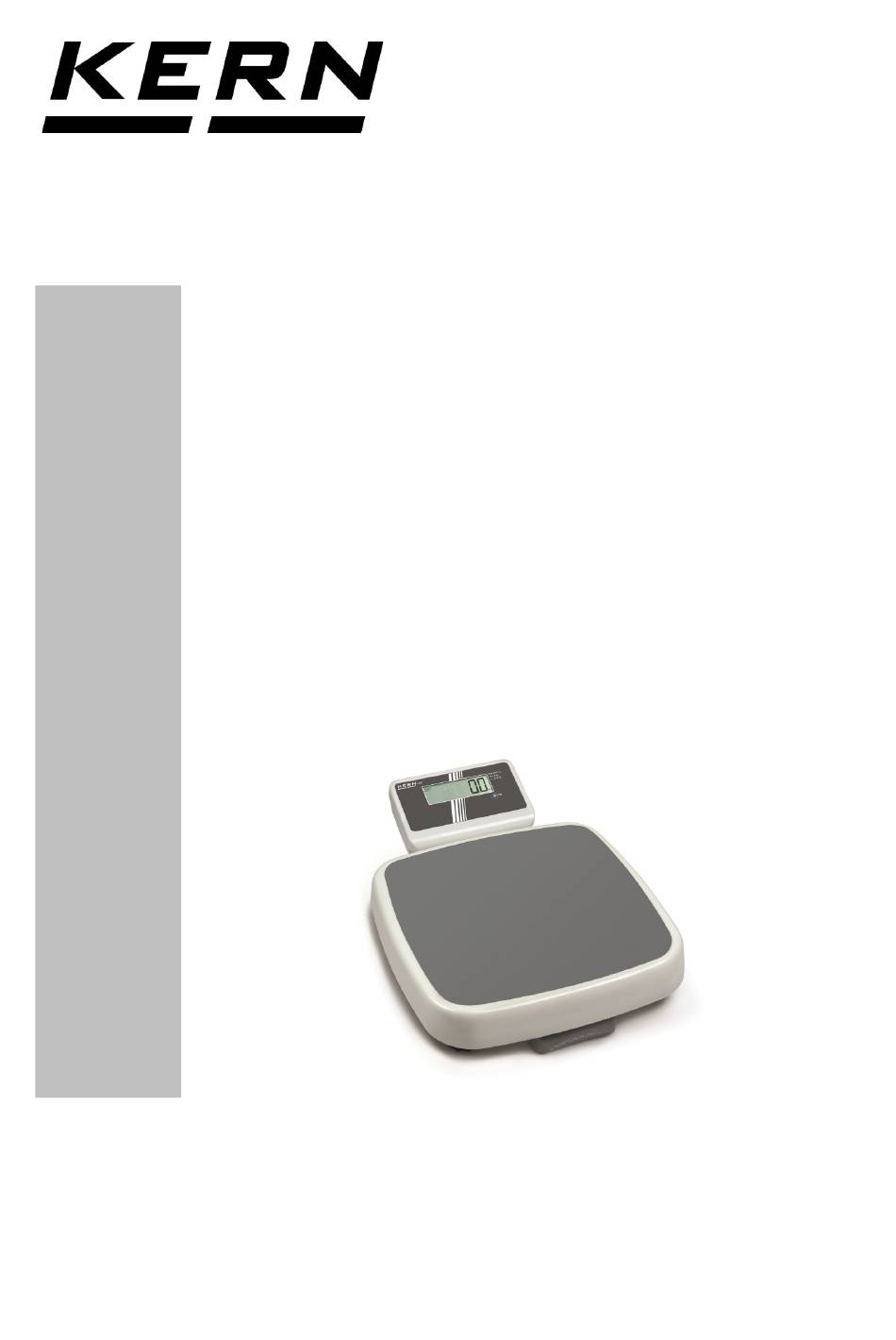

- Page 1 KERN & Sohn GmbH Ziegelei 1 Tel: +49-[0]7433- 9933-0 D-72336 Balingen Fax: +49-[0]7433-9933-149 E-Mail: info@kern-sohn.com Internet: www.kern-sohn.com Operating instructions Step-On Personal scale KERN MPD Type MPD 250K100M Type MPD 250K100NM Type MPD 200K-1EM Version 1.0 2017-02 MPD-BAPS-e-1710...
-
Page 2: Table Of Contents
KERN MPD Version 1.0 2017-02 Operating instructions Step-On Personal scale Contents Technical data .................... 3 Declaration of conformity ................5 Appliance overview ..................6 Overview of display ....................6 Basic Information (General) ..............7 Proper use ......................7 Improper Use ......................8 Warranty ........................ -
Page 3: Technical Data
1 Technical data KERN (Type) MPD 250K100NM MPD 200K-1EM Trademark MPD 250K100M MPD 200K-1EM Display 6-digit Weighing range (max) 250 kg Reproducibility 0.1 kg 0,2 kg Linearity ± 0.1 kg 0,2 kg Display LCD with 25mm high digits Recommended adjustment... - Page 4 KERN (Type) MPD 250K100M MPD 200K-1EM Display 6-digit Weighing range (max) 250 kg Reproducibility 0.1 kg 0,2 kg Linearity ± 0.1 kg 0,2 kg Display LCD with 25mm high digits Recommended adjustment 200 kg weight, (Class) (M1) Stabilization time (typical) 3 sec.
-
Page 5: Declaration Of Conformity
2 Declaration of conformity To view the current EC/EU Declaration of Conformity go to: www.kern-sohn.com/ce MPD-BAPS-e-1710... -
Page 6: Appliance Overview
3 Appliance overview 1 Display unit 2 Weighing platform (anti-slip surface) 3 Foot switch Underside 4 Mains port 5 Rechargeable battery compartment 6 Rubber feet (adjustable height) 3.1 Overview of display Display Description Description Stability display Scales are in a steady state STABLE ZERO Zeroing display... -
Page 7: Basic Information (General)
4 Basic Information (General) 4.1 Proper use These scales are used to determine weight of people sitting at rest, The person should be weighed carefully and have contact with the center of the seat, sit and stay calm. As soon as a stable weighing value is reached the weighing value can be read. The scales are designed for long-term usage. -
Page 8: Improper Use
In KERN’s accredited DKD calibration laboratory test weights and balances may be calibrated (return to the national standard) fast and at moderate cost. MPD-BAPS-e-1710... -
Page 9: Basic Safety Precautions
5.1 Pay attention to the instructions in the Operation Manual Carefully read this operation manual before setup and commissioning, even if you are already familiar with KERN balances. 6 Transport and storage 6.1 Testing upon acceptance When receiving the appliance, please check packaging immediately, and the appliance itself when unpacking for possible visible damage. -
Page 10: Unpacking, Setup And Commissioning
7 Unpacking, Setup and Commissioning 7.1 Installation Site, Location of Use The balances are designed in a way that reliable weighing results are achieved in common conditions of use. You will work accurately and fast, if you select the right location for your balance. On the installation site observe the following: •... -
Page 11: Placing
The stated voltage value must be the same as the local voltage. Always use genuine approved KERN power pack units. The small sticker attached to the side of the display unit indicates the power port: The LED remains illuminated as long as the weighing scale remains connected to the mains. -
Page 12: Battery Operation
Voltage has dropped below prescribed minimum. Rechargeable battery very low. Rechargeable battery completely reloaded If the balance is not used for a longer time, take out the rechargeable battery and store it separately. Leaking liquid could damage the balance. 7.7 Battery operation As an alternative to rechargeable battery operation, the balance may also be operated with 6x AA batteries. -
Page 13: Initial Commissioning
Insert batteries Remove battery compartment cover Connect battery holder to housing contact acc. to illustration Insert battery holder Insert batteries into battery compartment and lock with battery compartment cover. 7.8 Initial Commissioning In order to obtain exact results with the electronic balances, your balance must have reached the operating temperature (see warming up time chap. -
Page 14: Operation
8 Operation Turn on weighing scale by foot switch (chap. 3). The balance will carry out a self-test The scales are ready for operation as soon as the weight display for “0.0 kg“ has appeared. Have person stand in the centre of the scales. Wait until the standstill display „STABLE“... -
Page 15: Error Messages
9 Error messages Display Description OL or------ Weighing range has been exceeded (excess load) ------or Null Below weighing range (underload) Zero range exceeded (on start-up or when pressing the key) • Load on weighing pan • Excess load, during zero setting of weighing scale •... -
Page 16: Service, Maintenance, Disposal
Sterilisation of the appliance is not allowed. 10.3 Service, maintenance The appliance may only be opened by trained service technicians who are authorized by KERN. Disconnect the scales before opening. 10.4 Disposal Disposal of packaging and appliance must be carried out by operator according to valid national or regional law of the location where the appliance is used. -
Page 17: Instant Help
11 Instant help In case of an error in the program process, briefly turn off the balance and disconnect from power supply. The weighing process must then be restarted from the beginning. Fault Possible cause • The balance is not switched on. The displayed weight does not glow. -
Page 18: Adjustment
Carry out adjustment as closely as possible to admissible maximum load of weighing scale. Information about test weights you will find in the internet under http://www.kern-sohn.com • Observe stable environmental conditions. For warm-up time required for stabilisation see chap. 1. - Page 19 Procedure: Switch off the balance. Press adjustment switch and turn on weighing scale by operating foot switch (chap. 3).. Wait until the size of the adjustment weight (see chap. 1) required is displayed. Place adjustment weight in the centre of the weighing platform. Wait until „Ld 0“ is shown.
