KERN MPL
Version 1.0
2017-09
GB
KERN & Sohn GmbH
Ziegelei 1
D-72336 Balingen
E-Mail: info@kern-sohn.com
Operation manual
Personal scales
Phone: +49-[0]7433- 9933-0
Fax: +49-[0]7433-9933-149
Internet: www.kern-sohn.com
MPL-BA-e-1710

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MPL 200K-1P and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for KERN MPL 200K-1P

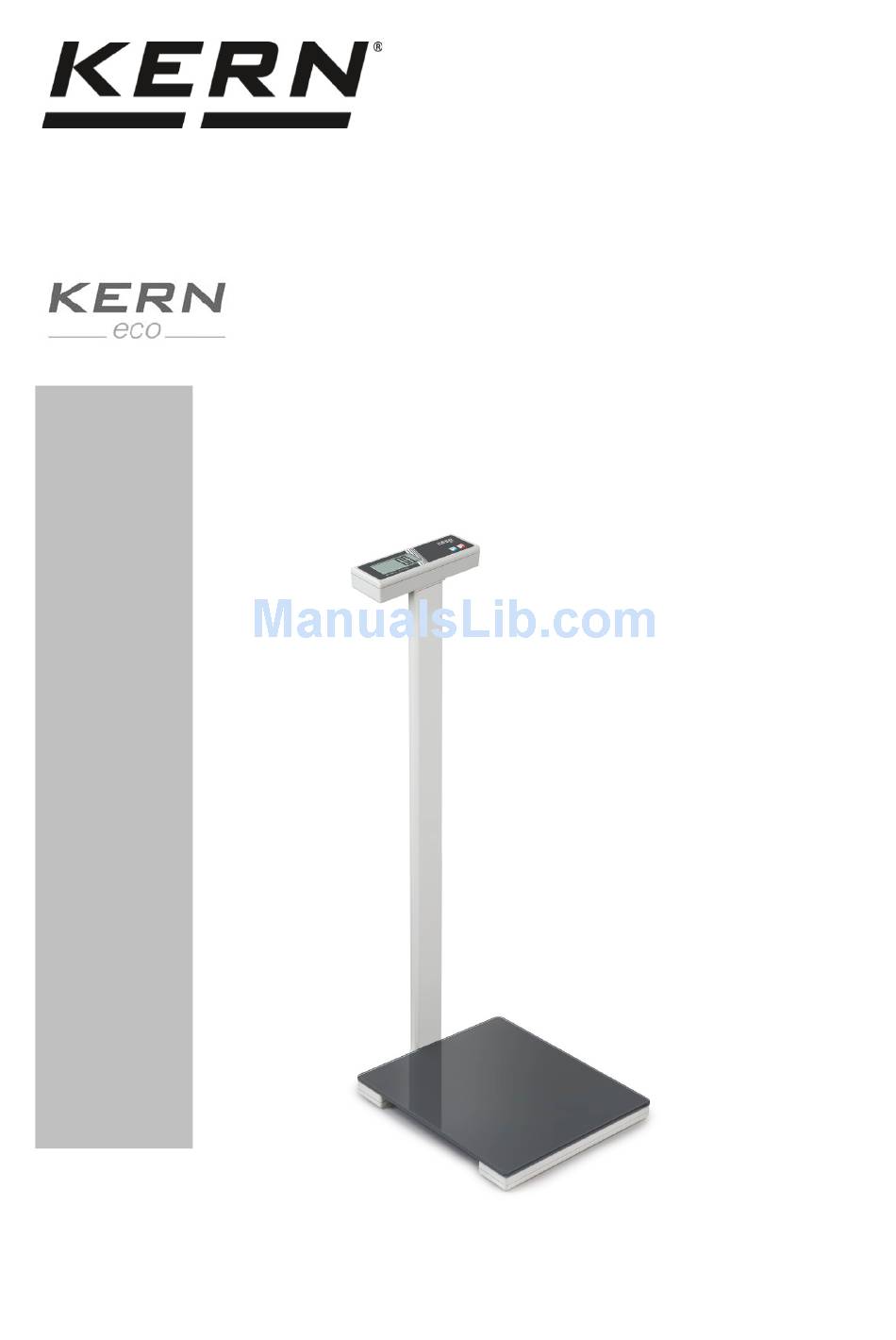

  • Page 1 KERN & Sohn GmbH Ziegelei 1 Phone: +49-[0]7433- 9933-0 D-72336 Balingen Fax: +49-[0]7433-9933-149 E-Mail: info@kern-sohn.com Internet: www.kern-sohn.com Operation manual Personal scales KERN MPL Version 1.0 2017-09 MPL-BA-e-1710...
  • Page 2: Table Of Contents

    KERN MPL Version 1.0 2017-09 Operation manual for personal scales Contents Technical data ....................3 Dimensions ......................4 Declaration of conformity ................. 5 Appliance overview ................... 6 Keyboard overview ....................7 Overview of display ....................7 Basic Information (General) ................8 Proper use ........................
  • Page 3: Technical Data

    1 Technical data KERN MPL 200K-1P Readability (d) 0.1 kg Weighing range (max) 250 kg Reproducibility 0.1 kg Linearity 1 kg Weighing Units kg, lb Recommended adjustment weight, (not 250 kg (M1) added, class) Stabilization time 2 sec. Operating temperature 10°...
  • Page 4: Dimensions

    1.1 Dimensions MPL-BA-e-1710...
  • Page 5: Declaration Of Conformity

    2 Declaration of conformity The current EC/EU Conformity declaration can be found online in: www.kern-sohn.com/ce MPL-BA-e-1710...
  • Page 6: Appliance Overview

    3 Appliance overview Display Buttons Weighing pan Bottom of the balance Adjustment button Weighing unit switching kg↔lb MPL-BA-e-1710...
  • Page 7: Keyboard Overview

    3.1 Keyboard overview • Call up BMI function • Confirm entry in menu • Taring • Scroll forward in menu 3.2 Overview of display Kilogram HOLD Hold function Battery symbol Body Mass Index Centimetre MPL-BA-e-1710...
  • Page 8: Basic Information (General)

    The balance may only be used according to the described conditions. Other areas of use must be released by KERN in writing. 4.3 Warranty Warranty claims shall be voided in case ...
  • Page 9: Basic Safety Precautions

    Stepping on the edge of the weighing plate may cause tilting of balance or fall of person.  Carefully read this operation manual before setup and commissioning, even if you are already familiar with KERN balances. 6 Transport and storage 6.1 Testing upon acceptance When receiving the appliance, please check packaging immediately, and the appliance itself when unpacking for possible visible damage.
  • Page 10: Unpacking, Setup And Commissioning

    7 Unpacking, Setup and Commissioning 7.1 Installation Site, Location of Use The balances are designed in a way that reliable weighing results are achieved in common conditions of use. You will work accurately and fast, if you select the right location for your balance. Therefore, observe the following for the installation site: Place the balance on a firm, level surface;...
  • Page 11: Unpacking

    7.2 Unpacking The delivery volume contains the balance, the operating manual and two screws for assembly. As well as 4 batteries 1.5 V AA. Assembly:  Place weighing plate on a stable, even surface  Insert tripod in the tripod holder (1) and fix it using the two screws (2) (see fig.) 7.3 Battery operation The battery compartment is located at the rear side of the display unit.
  • Page 12: Adjustment

    8 Adjustment As the acceleration value due to gravity is not the same at every location on earth, each display unit with connected weighing plate must be coordinated - in compliance with the underlying physical weighing principle - to the existing acceleration due to gravity at its place of location (only if the weighing system has not already been adjusted to the location in the factory).
  • Page 13: Using The Balance

    9 Using the balance  Step on the scales with bare feet. Try standing as still and upright as possible.  The weight of a person will be shown after a few seconds.  When the scales are not in use, they will switch off automatically after a few seconds.
  • Page 14: Taring

    Weighing with "Tap on" Tap on weighing plate briefly. After the self test appears the zero display. Step on scale. "------" will be briefly displayed flashing. After that the weighing value is displayed automatically. The „HOLD“ symbol appears flashing. The weighing value will be frozen for a short time.
  • Page 15: Bmi Function

    9.4 BMI function When the weight is displayed, press (example) The most recently entered body height will be shown in cm. (example) Press and keep pressed. The value of the body height (example) increases. Press until the respective body height is displayed, then release Press .
  • Page 16: Servicing, Maintenance, Disposal

    Remove dirt immediately. 10.2 Servicing, maintenance The appliance may only be opened by trained service technicians who are authorized by KERN. 10.3 Disposal Disposal of packaging and appliance must be carried out by operator according to valid national or regional law of the location where the appliance is used.
