Operating instructions

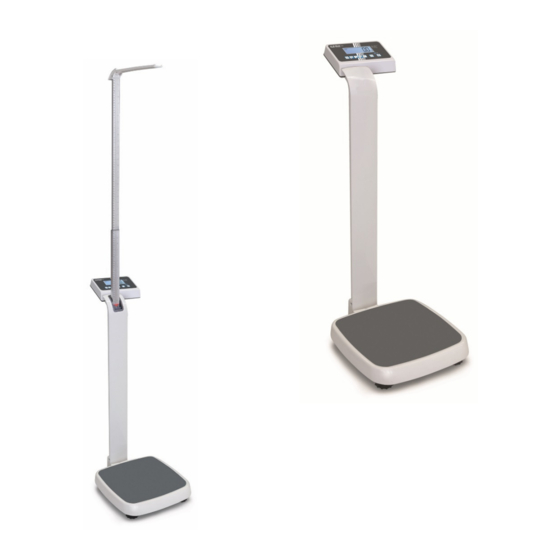

Personal floor scale with BMI function
KERN
MPE
MPE 250K100HNM
MPE 250K100PNM
TMPE 250K-1HEM-A
TMPE 250K-1PEM-A
Version 2.1
2021-05
GB
KERN & Sohn GmbH
Ziegelei 1
D-72336 Balingen
E-Mail: info@kern-sohn.com
Tel: +49-[0]7433- 9933-0
Fax: +49-[0]7433-9933-149
Internet: www.kern-sohn.com
MPE-BAPS-e-2121
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for KERN MPE Series
Summary of Contents for KERN MPE Series
- Page 1 KERN & Sohn GmbH Ziegelei 1 Tel: +49-[0]7433- 9933-0 D-72336 Balingen Fax: +49-[0]7433-9933-149 E-Mail: info@kern-sohn.com Internet: www.kern-sohn.com Operating instructions Personal floor scale with BMI function KERN MPE 250K100HNM MPE 250K100PNM TMPE 250K-1HEM-A TMPE 250K-1PEM-A Version 2.1 2021-05 MPE-BAPS-e-2121...
-
Page 2: Table Of Contents
KERN MPE Version 2.1 2021-05 Operating instructions Personal floor scale with BMI function Contents Technical data .................... 4 Declaration of conformity ................6 Appliance overview ..................7 Keyboard overview ..................9 Overview of display .................. 10 Basic Information (General) ..............10 Proper use ......................10... - Page 3 The menu ....................28 11.1 Navigation in the menu ..................28 11.2 Menu overview ......................29 Data output RS 232 .................. 32 12.1 Pin allocation of balance output bushing: ..............32 12.2 Technical data ......................32 12.3 Printer operation ....................33 Error messages ..................34 Service, maintenance, disposal ..............
-
Page 4: Technical Data
1 Technical data KERN (Type) 250K100HNM 250K100PNM Model 250K100HM 250K100PM Display 6-digit Weighing range (max) 250 kg Reproducibility 0.1 kg Linearity ± 0.1 kg Display LCD with 25mm high digits > 200 kg Recommended adjustment weight, (Class) (M1) Stabilization time (typical) 3 sec. - Page 5 TMPE TMPE KERN (Type) 250K-1HEM-A 250K-1PEM-A Model 200K-100HEM 200K-1PEM Display 6-digit Weighing capacity (max) 250 kg Minimum load (Min) 2 kg Verification value (e) 100 g Repeatability 0.1 kg Linearity ± 0.1 kg Display LCD with 25mm high digits > 200 kg...
-
Page 6: Declaration Of Conformity
2 Declaration of conformity To view the current EC/EU Declaration of Conformity go to: www.kern-sohn.com/ce MPE-BAPS-e-2121... -
Page 7: Appliance Overview
3 Appliance overview 1. Height measuring stick (MPE-HM models only) 2. Display Unit 3. Weighing platform (anti-slip surface) 4. Rubber feet (height adjustable) Underside 5. Rolls MPE-BAPS-e-2121... - Page 8 Secondary display at rear Display unit at rear 5 Rechargeable battery compartment 6 Mains connection 7 RS 232 C MPE-BAPS-e-2121...
-
Page 9: Keyboard Overview
4 Keyboard overview MPE 250K100HNM MPE 250K100PNM TMPE 250K-1HEM-A TMPE 250K-1PEM-A Description Function ON/OFF-switch Turn on/off HOLD button Hold function/Calculation of a stable weight value BMI key Calculation of the Body Mass Index PRINT button Data transfer via interface In menu: •... -
Page 10: Overview Of Display
5 Overview of display Display Description Description Stability display Scales are in a steady state Zeroing display Should the balance not display exactly zero despite empty weighing plate, press button. Your balance will be set to zero after a short standby time. Net weight display Illuminated when net weight is displayed Illuminated after weighing scale was... -
Page 11: Improper Use
In KERN’s accredited DKD calibration laboratory test weights and balances may be calibrated (return to the national standard) fast and at moderate cost. Using measuring technology to check the accuracy of the measuring device is... -
Page 12: Basic Safety Precautions
7.1 Pay attention to the instructions in the Operation Manual Carefully read this operation manual before setup and commissioning, even if you are already familiar with KERN balances. 8 Transport and storage 8.1 Testing upon acceptance When receiving the appliance, please check packaging immediately, and the appliance itself when unpacking for possible visible damage. -
Page 13: Unpacking, Setup And Commissioning
9 Unpacking, Setup and Commissioning 9.1 Installation Site, Location of Use The balances are designed in a way that reliable weighing results are achieved in common conditions of use. You will work accurately and fast, if you select the right location for your balance. On the installation site observe the following: •... -
Page 14: Scope Of Delivery
9.3 Scope of delivery 9.3.1 MPE-HM and MPE-PM models • Balance • Power pack unit • Operating instructions 9.3.2 MPE-HEM and MPE-PEM models • Weighing scale with tripod • Batteries 6 x AA 1,5 V • Operating instructions 9.4 Balance assembly and installation Scope of delivery: Fig. - Page 15 Refitting Procedure: Mount tripod (1) on tripod holder (2) at weighing platform Ensure that the cable (3) does not get clamped! Fasten tripod, using 4 screws Level balance with foot screws until the air bubble of the water balance is in the prescribed circle.
-
Page 16: Installing The Body Height Meter
9.4.1 Installing the body height meter The force required to extend the telescopic body height meter may be adjusted using to adjustment bolts on the stand (see the figure). To do it, proceed as follows: Hide the whole body height meter completely in the stand. -
Page 17: Mains Connection
The stated voltage value must be the same as the local voltage. Always use genuine approved KERN power pack units. The small sticker attached to the side of the display unit indicates the power port: The LED remains illuminated as long as the weighing scale remains connected to the mains. -
Page 18: Battery Operation Is Possible By Obtaining An Optional Battery Power Pack
9.6 Battery operation is possible by obtaining an optional battery power pack. Open the battery compartment cover (1) at the base of the display unit and insert the rechargeable battery. Charge the battery for at least 12 hours before initial use. The appearance of the symbol in the weight display indicates that the battery is almost exhausted. -
Page 19: Battery Operation
9.7 Battery operation As an alternative to rechargeable battery operation, the balance may also be operated with 6x AA batteries. Open battery compartment cover (1) at the lower side of the display unit and insert batteries according to the example below. Lock the battery cover again. If the batteries are empty, in the balance display appears the symbol . -
Page 20: Installation Of Accumulator / Battery Exemplified By A Battery Set
9.8 Installation of accumulator / battery exemplified by a battery set: Remove battery compartment cover Connect battery holder to housing contact acc. to illustration Insert battery holder Insert batteries into battery compartment and lock with battery compartment cover. 9.9 Initial Commissioning In order to obtain exact results with the electronic balances, your balance must have reached the operating temperature (see warming up time chap. -
Page 21: Operation
10 Operation 10.1 Weighing Start balance by pressing The balance will carry out a self-test The scales are ready for operation as soon as the weight display for “0.0 kg“ has appeared. • However, you can reset the weighing scale to zero by pressing key. -
Page 22: Subsequent Tare Weight
10.2.1 Subsequent tare weight The balance can be tared several times successively. 10.3 HOLD function The balance has an integrated standstill function (mean value calculation). With this function it is possible to weigh people accurately even if they do not stand still on the weighing plate. -
Page 23: Calculation Of The Body Mass Index
10.5 Calculation of the Body Mass Index You need to know a person’s body height before you can calculate the BMI for that person. It should either be known or can be determined directly with the MPE-HM and MPE-HEM model. 10.5.1 Measuring body height (MPE-HM and MPE-HEM only) ... -
Page 24: Calculating Body Mass Index
Read body height on measuring stick. 10.5.2 Calculating Body Mass Index Start balance by pressing Wait for stability display „STABLE” to appear. Press The most recently entered body height will be shown with the enable digit flashing. The „BMI“ symbol lights up. ... -
Page 25: Classification Of Bmi Values
• Reliable calculation of BMI is restricted to a body height of 100 cm to 200 cm and a weight of >10 kg. • If weighing has to take place under unsteady conditions, you can be stabilise the display by applying the Hold function. 10.5.3 Classification of BMI values Weight classification for adults over 18 years of age using the BMI in accordance with WHO, 2000 EK IV and WHO 2004. -
Page 26: Automatic Switch-Off Function „Auto Off
10.6 Automatic switch-off function „AUTO OFF“ The weighing scale will switch off automatically after the allotted time as long as neither the display unit nor the weighing plate is operated. • Menu settings: [F1 oFF] [oFF 0/3/5/15/30] (see chap. 12) ... -
Page 27: Display Background Illumination
10.7 Display background illumination • Menu settings: [F4 bk] [bL on / bL oFF / bL AU] see chap. (12) Start balance by pressing Wait for stability display „STABLE to appear. Press , [F1 oFF] is displayed ... -
Page 28: The Menu
11 The menu 11.1 Navigation in the menu Call up menu In weighing mode, press and the first function [F1 oFF] will be displayed. Select function With help of , the individual functions can be selected one after the other. Change settings ... -
Page 29: Menu Overview
11.2 Menu overview Available settings / explanation Menu block Menu item Main Menu Submenu oFF 0* Automatic shutdown off Automatic shutdown after 3 min oFF 3 Automatic cutout Automatic shutdown after 5 min oFF 5 Auto Off Automatic shutdown after 15 min oFF 15 Automatic shutdown after 30 min oFF 30... - Page 30 3. Data output format (P Prt, P Auto, P Cont settings only) the currently set data output format will be shown after the baud rate was confirmed. Select desired format by confirm with Prt 0-3 Data output format, see chap. 13. Sd0 –...
- Page 31 Password entry: press Service menu subsequently. Operate adjustment switch; for position see chap.17 Display speed Not documented Adjustment, see chap. 18 tri* Not documented CoUnt Not documented rESEt Reset weighing scale to factory setting SEtGrA Not documented * default setting MPE-BAPS-e-2121...
-
Page 32: Data Output Rs 232
• Use a suitable cable to connect the weighing balance to the interface of the printer. Faultless operation requires an adequate KERN interface cable. • Communication parameters (baud rate, bits and parity) of balance and printer must match. -
Page 33: Printer Operation
12.3 Printer operation Printout examples: 0 / 2 60.0kg 60.0kg 1 / 3 170.0cm 20.7BMI Remote control instructions: 29.03.2017 09:31:21: 20.0 kg Stable positive value 29.03.2017 09:31:55: -20.0 kg Stable negative value 29.03.2017 09:32:12: 44.3 kg Instable positive value 29.03.2017 09:32:38: -18.4 kg Instable negative value... -
Page 34: Error Messages
13 Error messages Display Description Zero range exceeded (on start-up or when pressing the key) • Load on weighing pan • Excess load, during zero setting of weighing scale • Incorrect adjusting process • Fault on load cell Value outside the A/D converter range •... -
Page 35: Service, Maintenance, Disposal
Sterilisation of the appliance is not allowed. 14.4 Service, maintenance The appliance may only be opened by trained service technicians who are authorized by KERN. We recommend regular verification of conformity with technical safety requirements (STK). Disconnect the scales from mains before opening. -
Page 36: Instant Help
15 Instant help In case of an error in the program process, briefly turn off the balance and disconnect from power supply. The weighing process must then be restarted from the beginning. Fault Possible cause • The balance is not switched on. The displayed weight does not glow. - Page 37 Position adjustment switch and seals: Self-destroying seal mark Cover Adjustment switch MPE-BAPS-e-2121...
-
Page 38: Adjustment
1. Carry out adjustment as closely as possible to admissible maximum load of weighing scale. Information about test weights you will find in the internet under http://www.kern-sohn.com • Observe stable environmental conditions. For warm-up time required for stabilisation see chpt 1. - Page 39 Press one after the other and [P1 SPd] will appear Press , „P2 CAL“ will be displayed Operate adjustment switch; for position see chap.16 Press and [dESC] will appear Press repeatedly until „CAL“ will be displayed. ...
- Page 40 Place adjustment weight in the centre of the weighing pan Wait until stability display „STABLE“ appears Confirm by pressing , [PASS] will be displayed. The balance carries out a selftest, after that [Err19] will be displayed and a signal will sound. ...
