Lift Axle Test Rig; Standard J560 Connector Wiring Diagram - WABCO iABS 2S/1M Standard Maintenance Manual

Troubleshooting

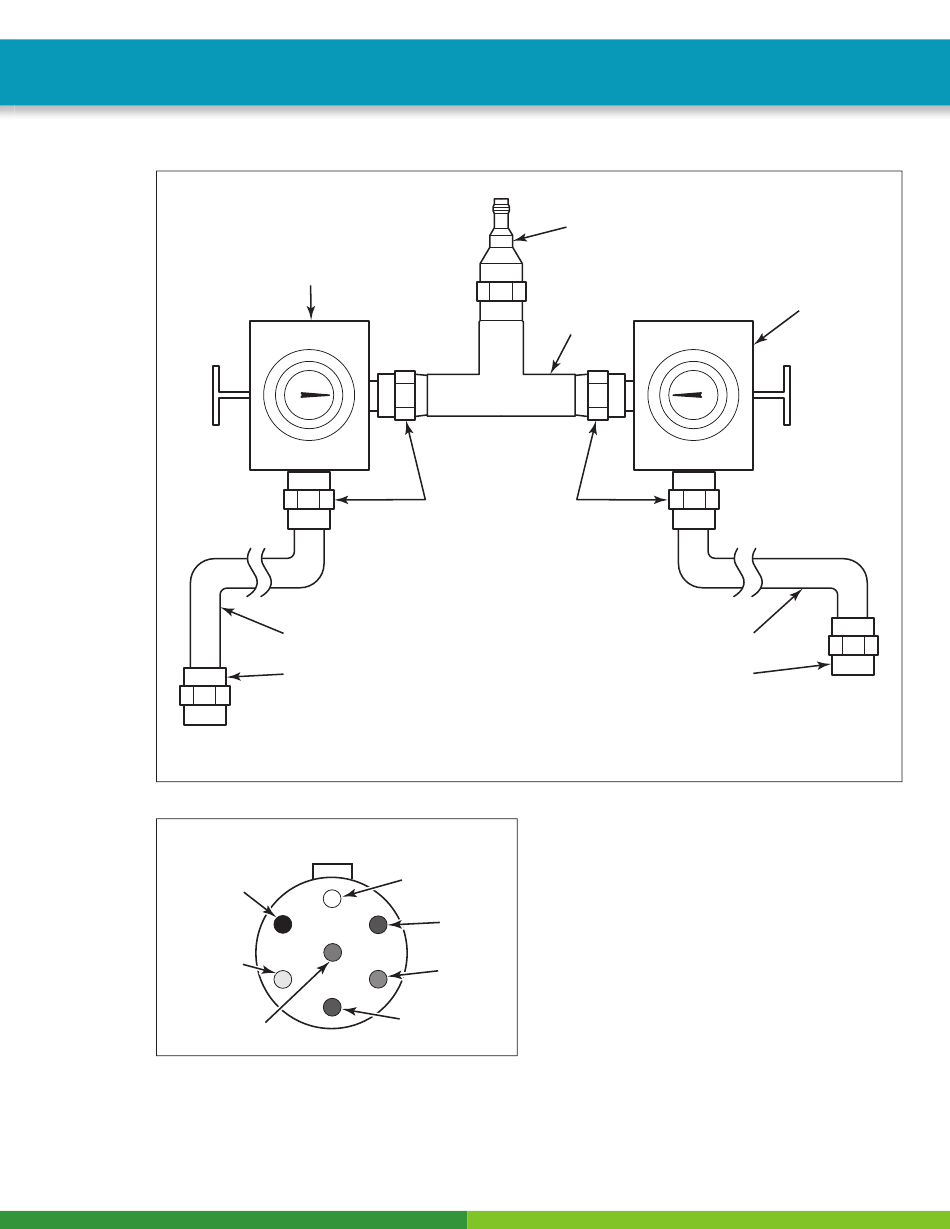

Fig. 9.12
SIMULATED
SPRING BRAKE
LINE
CONNECTS TO
PRESSURE SWITCH,
P/N 431 700 002 0
Fig. 9.13

STANDARD J560 CONNECTOR WIRING DIAGRAM

(AS VIEWED FROM THE TRAILER NOSE PLUG)
PIN 6
TAIL LIGHTS
PIN 5
RIGHT TURN
PIN 7
CONSTANT
ABS POWER
PRESSURE REGULATOR
WITH GAUGE
PSI
(0-100 PSI)
1/2" HOSE
1/2" TO 3/8"
FITTING
PIN 1
GROUND
PIN 4
BRAKE LIGHTS

LIFT AXLE TEST RIG

STANDARD MALE QUICK
COUPLER FITTING
TEE
FITTING
FITTING FITTING
PIN 2
MARKER
LIGHTS
PIN 3
LEFT TURN
4012478a
PRESSURE
REGULATOR
WITH GAUGE
PSI
(0-100 PSI)
SIMULATED AIR
SUSPENSION LINE
1/2" HOSE
1/2" TO 1/4"
FITTING
CONNECTS TO
PRESSURE SENSOR,
P/N 441 044 106 0
4012474a
151
