Introduction

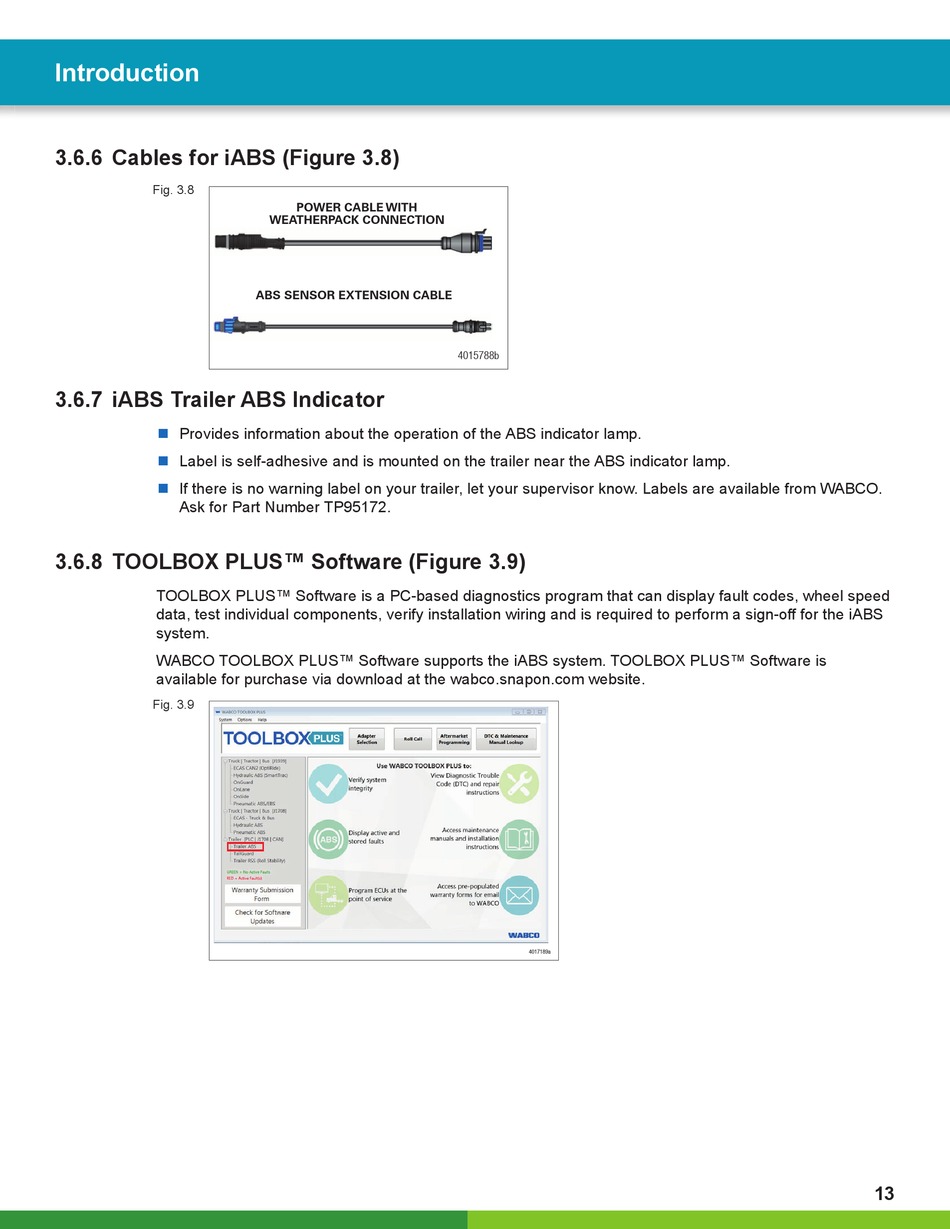

3.6.6 Cables for iABS (Figure 3.8)
Fig. 3.8

3.6.7 iABS Trailer ABS Indicator

 Provides information about the operation of the ABS indicator lamp.
 Label is self-adhesive and is mounted on the trailer near the ABS indicator lamp.
 If there is no warning label on your trailer, let your supervisor know. Labels are available from WABCO.
Ask for Part Number TP95172.
3.6.8 TOOLBOX PLUS™ Software (Figure 3.9)
TOOLBOX PLUS™ Software is a PC-based diagnostics program that can display fault codes, wheel speed
data, test individual components, verify installation wiring and is required to perform a sign-off for the iABS
system.
WABCO TOOLBOX PLUS™ Software supports the iABS system. TOOLBOX PLUS™ Software is
available for purchase via download at the wabco.snapon.com website.
Fig. 3.9
POWER CABLE WITH
WEATHERPACK CONNECTION
ABS SENSOR EXTENSION CABLE
4015788b
4017189a
13
