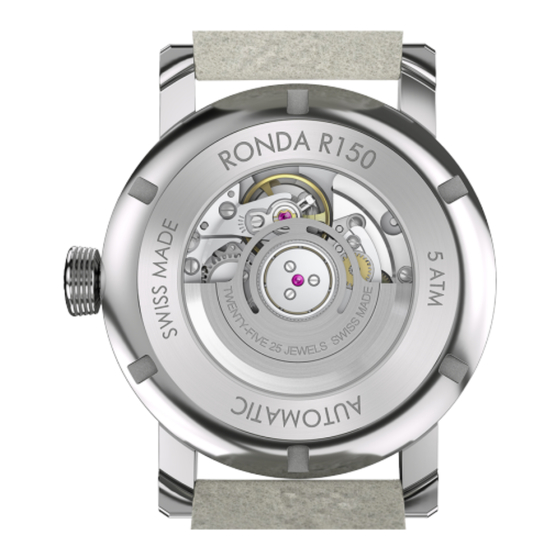

RONDA mecano 100
The new mechanical movement
Caliber R150 – 11½'''
Product Specifications
Mechanical movement
Line
Caliber
Size
Version
Swiss Made
Hand fitting height
Functions
– Date
mecano
– 3 hands
R150
Features
11½'''
– Automatic winding with ball bearing
25 Jewels
1
Date: 18.07.2017
www.ronda.ch
Page: 1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Ronda mecano R150
Summary of Contents for Ronda mecano R150
- Page 1 RONDA mecano 100 The new mechanical movement Caliber R150 – 11½''' Product Specifications Functions Mechanical movement – Date Line mecano – 3 hands Caliber R150 Features Size 11½''' – Automatic winding with ball bearing Version Swiss Made 25 Jewels Hand fitting height Date: 18.07.2017...
- Page 2 Caliber R150 – 11½''' RONDA mecano Escapement Swiss lever escapement Incabloc anti-shock system Index system for fine adjustment Regulation Average rate 12 s/d ±12 s/d at rate CH, 6H Maximum variance in all positions 30 s/d Isochronism over 24 h ±20 s/d...
-
Page 3: Technical Specifications
Caliber R150 – 11½''' RONDA mecano Technical Specifications Casing information (PDF) Movement holders for T2 (PDF) Diameter Total 26.00 mm User's manual Case fitting 25.60 mm User's manual (PDF) Movement height 4.40 mm Movement rest 1.20 mm Height over stem 1.80 mm... - Page 4 T2-Instructions R 150 Fitting dial and hands • Crown in position III • Wind hour hand forwards, until date changes • Remove working hand • Set friction spring 3315.003 on the hour wheel • Fit dial • Point all hands towards 12o‘clock •...
- Page 5 – Turn the crown anticlockwise until the required date You have decided to buy a watch, which was assembled appears. by a watchmaker using a Ronda movement. Please note – Push the crown back into position I. that no watches are produced or distributed under the Pos.
