EVALUATION BOARD HARDWARE

This section describes the hardware design of the EVAL-SDP-
CS1Z board.
The following topics are covered:
• LEDs—This section describes the SDP-S on-board LEDs.
• Connector details—This section details the pin
assignments on the 120-pin connector.
• Power—This section lists power requirements of the SDP-S
and identifies connector power inputs and output pins.
• Daughter board design guidelines—This section provides
guidelines on how to design daughter boards for use with
the SDP-S.
• Mechanical specifications—This section provides
dimensional information.

LEDS

There are two LEDs located on the SDP-S board (see Figure 3).
Power LED (PWR)
The green power LED indicates that the SDP-S board is
powered. This is not an indication of USB connectivity between
the SDP-S and the PC.
LED1
Rev 1.0

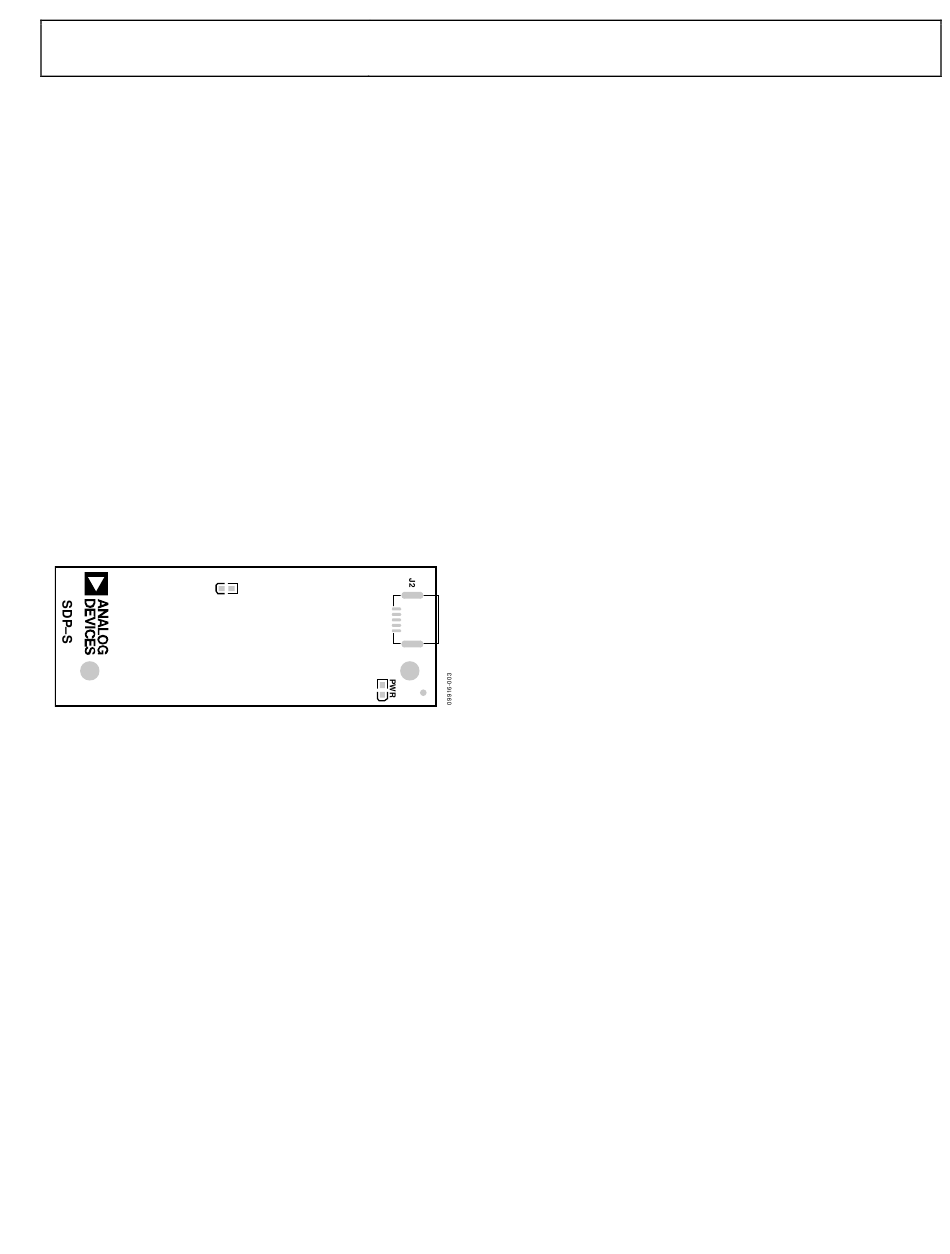

Figure 3. SDP-S Board LEDs
LED1
The orange LED is an LED used as a diagnostic tool for
evaluation application developers.

CONNECTOR DETAILS

The SDP-S board contains one Hirose FX8-120P-SV1(91),
120-pin header connector. Through this connector, the
peripheral communication interfaces of the USB-to-serial
engine are exposed. The exposed peripherals are
•
SPI
•
I 2 C/TWI
•
GPIO
Also included on the connector specification are input and out-
put power pins, ground pins, and pins reserved for future use.
Connector Pin Assignments
Table 1 lists the connector pins and identifies the functionality
assigned to each connector pin on the SDP-S board.
The pinout of this connector is consistent with other connectors
across the SDP family.
