Mechanical Specifications - Analog Devices SDP-S User Manual

SDP-S User Guide
3.30mm
50.50mm
Keep Out Area
To allow the greatest flexibility for future controller boards, a
keep out area is established for components higher that 3 mm.
The keep out area is 12.65 mm wide and extends down the
entire left side of the daughter board.
Restriction on Right Angle Connectors
Due to the layout of other boards in the SDP family, and their
daughter boards, right angle connectors are not allowed on the
top and left edges of the daughter boards and (if required)
should be placed on the right or bottom edges. A right angle
1.75mm
5.90mm
NO RIGHT-ANGLED CONNECTORS ALLOWED ALONG THIS EDGE
ORIGIN (0,0)
5.15mm
60
1
12.65mm

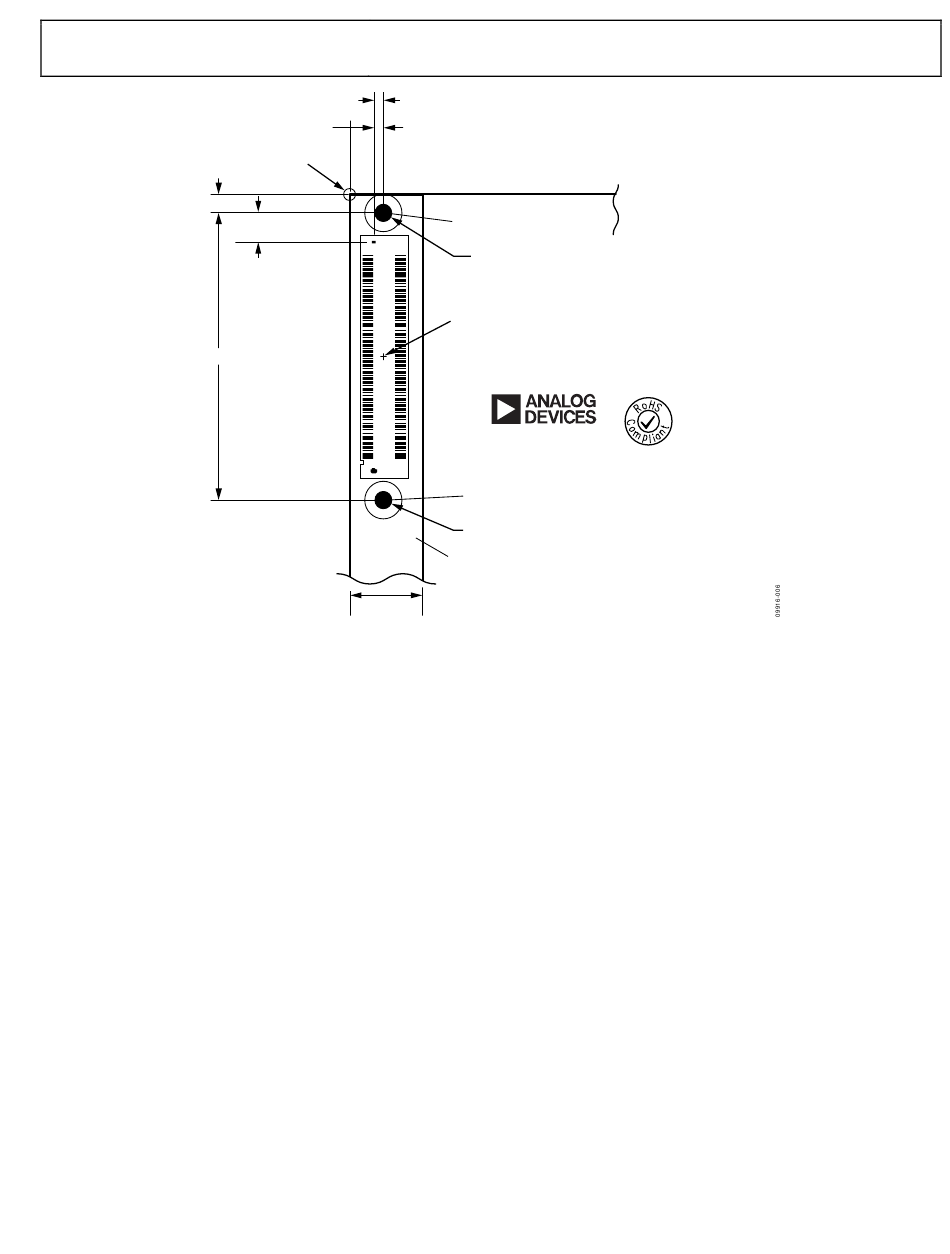

Figure 6. Connector Placement on Compatible Daughter Boards
x = 5.9mm, y = –3.3mm
61 D3.10mm
x = 5.95mm, y = –28.55mm (CENTER OF CONNECTOR)
EVAL-xxxxx-DB
Rev. D
120
x = 5.95mm, y = –53.8mm
D3.10mm
PLACEMENT KEEPOUT FOR COMPONENTS
OVER 3mm IN HEIGHT
(EXTENDS DOWN ENTIRE HEIGHT OF LEFT HAND SIDE OF PCB)
connector describes any connector that requires the connection
to protrude over the edge of the board (for example, right angle
SMB or screw terminal).

MECHANICAL SPECIFICATIONS

The mechanical specifications of the SDP-S board are 2.36 inch
× 0.87 inch (60 mm × 22 mm). The tallest component on the
top is approximately 0.17 inch (4.3 mm), and the tallest compo-
nents on the bottoms are the 120-pin connectors at approximately
0.152 inch (3.86 mm). Refer to Figure 7.
