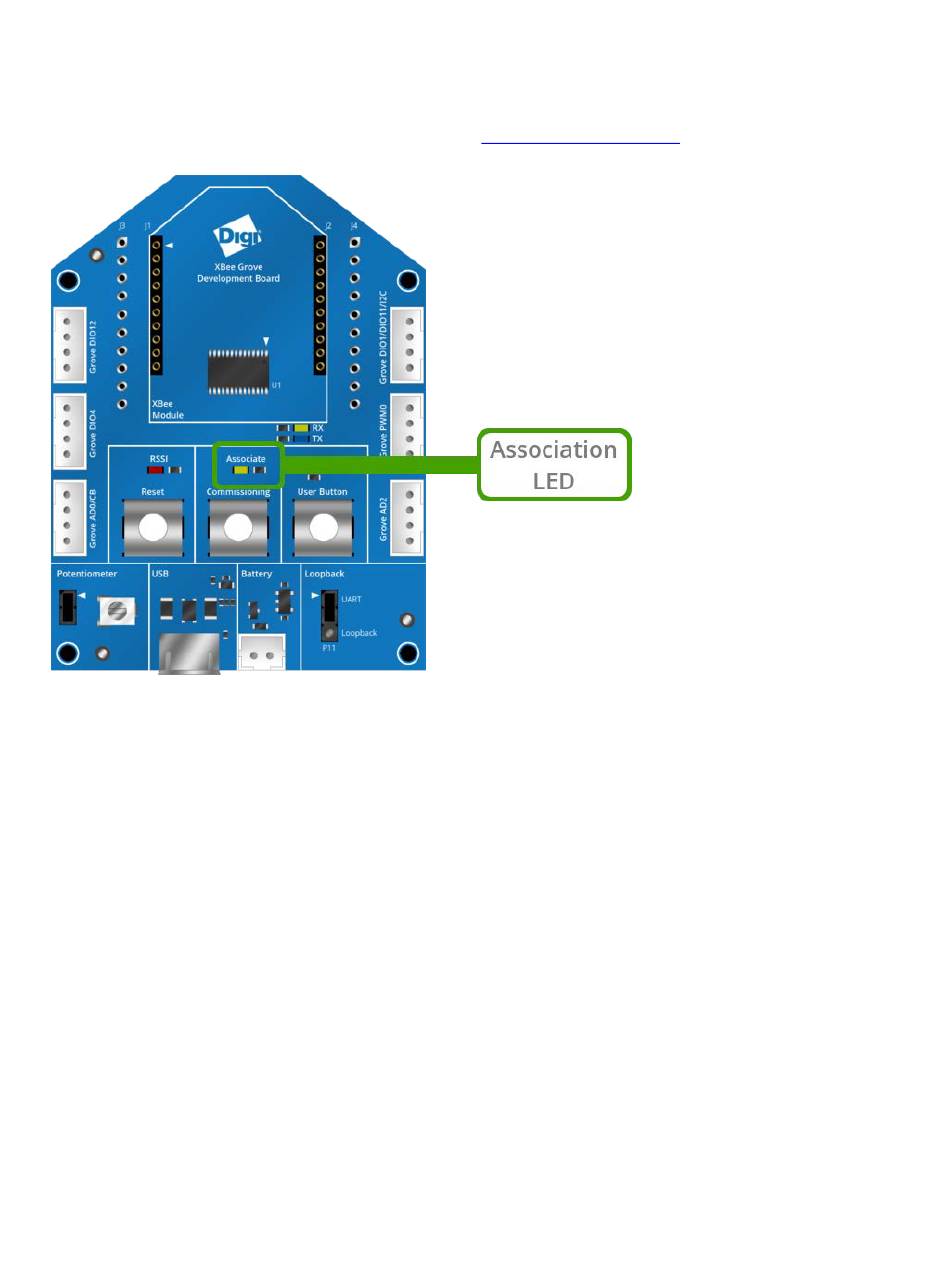

The XBee Grove Development Board provides an LED connected to the association pin of the
XBee module.
For more information about association, read the
XBee Product
Manual.
RSSI LED
The XBee Grove Development Board provides an LED connected to the RSSI/PWM0 pin of the
XBee module. The RSSI/PWM signal is also connected to the PWM Grove connector.
If the PWM0 pin (P0) is configured as RSSI, the brightness of this LED will display the signal
strength of the last packet received.
