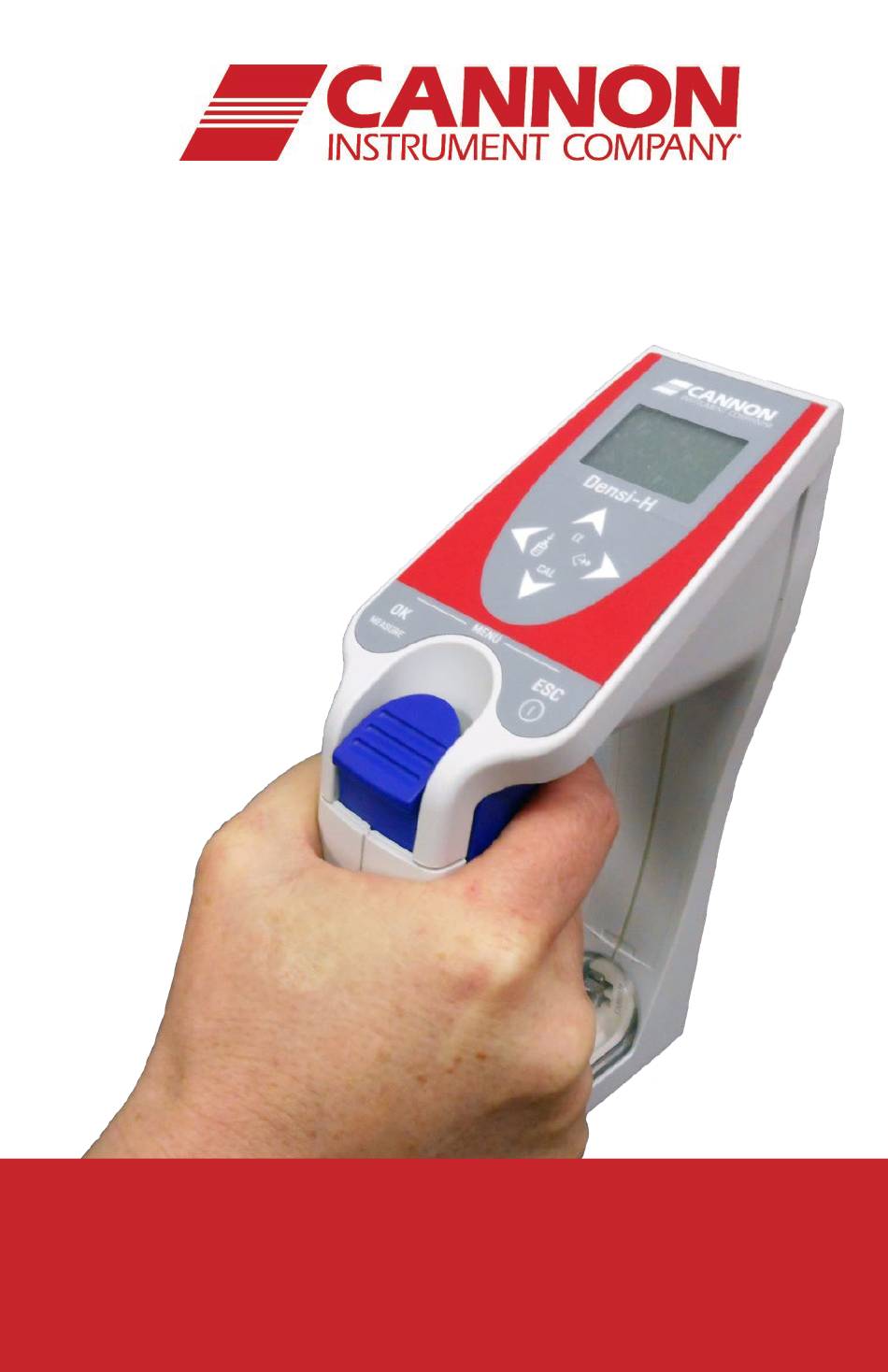

- Page 1 Densi-H Handheld Density/Specific Gravity Meter Operators Manual Revision 2.0...
-
Page 3: Table Of Contents
Select Functions ..................12 Numerical Input ..................13 Exit the Menu ................... 13 Measurement Unit ..................14 Density ..................... 14 Comp. Density (Temperature-Compensated Density) ......14 SG (t/t) Specific Gravity ................ 14 SG (Specific Gravity, Temperature-Compensated) ......14 CANNON Instrument Company® | Contents... - Page 4 Date and Time (Date&Time) ..............20 Identification .................... 20 Measurement (meas) ................... 21 Proper Measurement Procedure .............. 21 Fill the Measuring Cell using the Built-in Sample Pump ......22 Fill the Measuring Cell using an External Syringe ........22 Measuring ....................24 Densi-H Operator’s Manual...
- Page 5 Clean the Measuring Cell ................. 38 Clean the Housing ..................38 Replace the Sample Tube ................. 38 Replace the Sample Pump ............... 39 Standard Equipment ................40 Specifications and Technical Data ..............41 Appendix ...................... 43 CANNON Instrument Company® | Contents...
- Page 6 Density of Pure Water (0 °C to 40 °C) ............43 Temperature-compensation Coefficients α ..........44 Figures Figure 1: Densi-H Components (refer to Table 1) ............5 Figure 2: Display (refer to Table 2) ................6 Figure 3: Keys ......................7 Figure 4: Inserting Batteries ..................
- Page 7 Contents | CANNON Instrument Company®...
-
Page 9: Densi-H
For exact measurements, it is imperative to correct the temperature’s influence on the density. Depending on the selected unit the Densi-H carries out this result correction automatically. For this task, the instrument uses either internally-stored tables or one of the 10 temperature-compensation coefficients entered by the user. -
Page 10: Warning Symbols
The measuring instrument is intended for performing measurements for determining the density of liquids. Any other type of use and operation beyond the limits of technical specifications without written consent from Cannon Instrument Company is considered as not intended. Staff Qualification Incorrect use of the instrument or the chemicals used in the analysis can lead to death or injury. -
Page 11: Safety Notes
(hydrogen fluoride). Both substances chemically corrode the measuring cell. Use batteries of the specified type only. Otherwise, proper operation cannot be guaranteed. Do not submerge the housing in liquid. The instrument is only resistant to splashed water. CANNON Instrument Company® | Introduction... -
Page 12: Site Requirements
• Direct sunlight • High humidity • Corrosive gas atmosphere • Explosive atmosphere of gases, steam, fog, dust and flammable dust • Powerful electric or magnetic fields • Only ambient temperatures between -20 °C and 70 °C Densi-H Operator’s Manual... -
Page 13: Description Of The Instrument
Description of the Instrument Overview Figure 1: Densi-H Components (refer to Table 1) Table 1: Densi-H Components Number Part/Component Backlit Display Keypad Drain Button Sample Pump Cover of Sample Pump Connector for Syringe Adaptor Fixing Screw for Sample Tube Sample Tube... -
Page 14: Display
For the identification of invalid or incorrect results or for making a sample change ∆ Reference temperature (for units Comp. Density and SG only) Keys When using the keys: Red symbols: press key longer than 2 seconds. Blue symbols: press key briefly. Densi-H Operator’s Manual... -
Page 15: Figure 3: Keys
Confirm data transfer • While pressing and holding • key 5: enter the menu Only the arrow symbols are used to represent keys 1 – 4 in the following operating instructions. CANNON Instrument Company® | Description of the Instrument... -
Page 16: Tutorial
Tutorial Insert Batteries Figure 4: Inserting Batteries 1. Open the battery compartment cover on the back of the Densi-H. 2. Remove battery compartment. 3. Insert batteries into the battery compartment, observing correct polarity. 4. Insert battery compartment, ensuring that the contacts of the battery compartment face the instrument. - Page 17 Set the time as described above, using the side arrows to change the value. The Time is now set. 4. Exit the menu a. Press the key. The instrument is configured for test measurement. CANNON Instrument Company® | Tutorial...
-
Page 18: Test Measurement
If the deviation is ≤ 0.0005, then Adjustment is ok and the instrument is ready for measurement. • If the deviation is > 0.0005, adjust instrument. Refer to section Adjustment (cal). You must be in the mode to perform a expert water calibration. Densi-H Operator’s Manual... -
Page 19: Adjustment
Press and hold the key until the display is turned off. The instrument is now turned off. Switching On Press and hold the key until the display appears. The instrument is on and ready for operation. CANNON Instrument Company® | Tutorial... -
Page 20: Menu
Menu The DENSI-H menu offers the following functions: • Measurement Unit (Measure Unit) • Temperature Unit (Temp Unit) • Measure Mode • Adjustment Mode (Calib. Mode) • Interface • Beep • Background Lightning and LCD-Contrast (LCD) • Automatic Switch-off (Power) •... -
Page 21: Numerical Input
1. Use the right and left arrow keys to select the decimal places. 2. Use the up and down arrow keys to change the value. 3. Press the key to confirm the value. Exit the Menu Press the key to exit the menu function. CANNON Instrument Company® | Menu... -
Page 22: Measurement Unit
���� = ���������������������������� ���� ���� ���� ���� ������������������������ ���� ������������ ���� = �������������������� ���� ���� �������� ���� ℎ ���� �������������������� ���� �������� ���� ���� ���� ���� = Density of water at T ���� ���� SG (Specific Gravity, Temperature-Compensated) �������� = ���� ���� ���� ���� Densi-H Operator’s Manual... -
Page 23: Api (American Petroleum Institute)
Alcohol (Ethanol) Measurement of the ethanol concentration in water, percent weight (Wt%) or percent volume (Vol%) at 20 °C. H2SO4 (Sulphuric Acid Concentration) Measurement of the sulphuric acid concentration, percent weight at 20 °C. CANNON Instrument Company® | Measurement Unit... -
Page 24: Baumé (°Baumé Scale)
10 temperature-compensation coefficients can be saved. Input of temperature-compensation coefficients via Comp. Density. For typical temperature-compensation coefficients, refer to section Temperature-compensation Coefficients α. For calculation of α, refer to section Calculation of the Temperature-Compensation Coefficient α. Densi-H Operator’s Manual... -
Page 25: Calculation Of The Temperature-Compensation Coefficient Α
For typical temperature-compensation coefficients, refer to section Temperature-compensation Coefficients α. Temperature Unit (Temp. Unit) Data in °C or °F (selectable). Measure Mode This is the configuration of sample identification, stability mode and method of data storage. CANNON Instrument Company® | Measurement Unit... -
Page 26: Sample Name
Adjust measuring cell with desired density standard. The following input is required: • Density – Density of the density standard (g/cm³) at the reference temperature. • Temp. – Reference temperature • α × 1000 – Temperature-compensation coefficient of the density standard *1000 Densi-H Operator’s Manual... -
Page 27: Interface
• Data bits: 8 This is the serial interface. The Excel macro “PortableCapt” for data transfer to the computer via the infrared adapter is located on the Densi-H software. IrDA This is the data transfer to the PC with the integrated IrDA interface in accordance with protocol 1.20. -
Page 28: Automatic Switch-Off (Power)
Identification An identification consisting of ten letters and numbers (instrument name, user, etc.) may be entered here. This identification is included in the data transfer to a printer or computer. Densi-H Operator’s Manual... -
Page 29: Measurement (Meas)
±5 °C. 9. For samples of high viscosity (> 2000 mPa·s), use an external syringe to fill the measuring cell. CANNON Instrument Company® | Measurement (meas) -
Page 30: Fill The Measuring Cell Using The Built-In Sample Pump
Fill the Measuring Cell using an External Syringe 1. Press the drain button (#3 in Figure 8). 2. Slide up the lock button (#11). 3. Remove the screw stopper (#6) with a coin. 4. Screw in the adapter for the external syringe. Densi-H Operator’s Manual... -
Page 31: Figure 8: Filling The Measuring Cell Using An External Syringe
6. Slowly inject the sample into the measuring cell. 7. Ensure that there are no air bubbles in the measuring cell. 8. Do not remove the syringe while measuring. Figure 8: Filling the Measuring Cell using an External Syringe CANNON Instrument Company® | Measurement (meas) -
Page 32: Measuring
4. Measure using either automatic or manual stability control. Empty the Measuring Cell 1. Hold the sample tube over a waste container. 2. Press drain button (#3 in Figure 8) downward slowly and move it up again with the fill button (#12 in Figure 7). Densi-H Operator’s Manual... -
Page 33: Save Results
For PRN and RS interfaces, the infrared adapter must be connected to the printer/PC. The procedure for printing and transferring results is dependent upon the settings in the menu. Refer to section Measure Mode for proper settings. CANNON Instrument Company® | Measuring... -
Page 34: Important
3. The transfer symbol in the display flashes and all results are transferred. 4. After a successful transfer, the user is asked whether he/she would like to delete the transferred results with the message Memory All ClearExecute? (No). Densi-H Operator’s Manual... -
Page 35: Delete Results
Press the key to confirm. All results are deleted. Delete Results It is not possible to delete individual results with the Densi-H. Deleting All Results 1. Press and hold the left arrow key until Memory All Clear Execute? appears in the display. -
Page 36: Adjustment (Cal)
2. If the measuring cell is clean and contains no air bubbles, press the up or down arrow key. Execute? (Yes) appears. 3. Press the key. 4. If the measuring cell is dirty or contains air bubbles, press the button. Execute? (No) is confirmed. Densi-H Operator’s Manual... -
Page 37: Adjust The Measuring Cell With A Density Standard
1. Check whether the measuring cell is dirty and if there are air bubbles. 2. If the measuring cell is clean and contains no air bubbles, press the up or down arrow keys. Execute? (Yes) appears. 3. Press the key. is confirmed. Execute? (Yes) CANNON Instrument Company® | Adjustment (cal) -
Page 38: Adjust The Measuring Cell With Air
6. Clean the cell and readjust if necessary. Adjust the Measuring Cell with Air The Densi-H measures with the specified accuracy if the measuring cell is correctly adjusted with the accompanying density standard or distilled water. Additional adjustment with air is generally not necessary, but is recommended when: •... -
Page 39: Adjusting
2. Adjust measuring cell with water or a density standard of your choice. Adjust the Temperature Display Temperature display adjustment is generally not necessary, as the Densi-H is adjusted at the factory prior to shipment. If the displayed temperature deviates from the actual temperature, carry out the following steps for adjustment: (An external thermometer is required for this procedure.) - Page 40 The temperature display is now adjusted. Example: • Displayed value on instrument: 21.7 °C • Actual temperature: 21.3 °C • Difference: 21.3 °C - 21.7 °C = -0.4 °C • Value to be entered: -0.4 (°C) Densi-H Operator’s Manual...
-
Page 41: Interface
5. Set the following serial interface parameters, referring to the printer’s operating instructions: Baud rate: 9600 Stop bit: Parity None Data bits: Data Transfer to PC Configure the infrared interface of the Densi-H as follows. Refer to section Interface. • Interface: • Baud rate: 9600 • Parity: None •... -
Page 42: Procedure
Start Byte = 0 Type Date & Time Data Column Start Byte =10 Type Result Unit Data Column Start Byte = Type Temperature α6) α-value Data Α5) Column Start Byte = 46 Type Identification Data Column Start Byte = 63 Densi-H Operator’s Manual... - Page 43 3. Format yyyy/mm/dd hh:mm. 4. Temperature unit (°C or °F). 5. Number of the temperature-compensation coefficient. 6. These bytes contain only spaces, unless Comp. Density, SG, Baume or Conc. is selected as the result unit. CANNON Instrument Company® | Interface...
-
Page 44: Error Messages And Malfunctions
Error Messages and Malfunctions Table 4: Densi-H Error, Causes and Solutions Error Possible Causes What to do E-01 (Adjustment • Measuring cell not • Fill measuring cell error) filled with water with water • Air bubbles in • Use bubble-free,... - Page 45 CANNON service BATT • Batteries are empty • Replace batteries • Menu setting • Set Calib mode to incorrect • Result = 0.0000 or strongly negative results: Menu setting incorrect CANNON Instrument Company® | Error Messages and Malfunctions...
-
Page 46: Cleaning And Maintenance
Never use aggressive liquids or solvents to clean the housing of the Densi-H. • CANNON recommends using the cleaning tissues that come with the instrument. Replace the Sample Tube 1. Loosen fixing screw (#7 in Figure 10) of sample tube in the direction of the arrow and remove old sample tube. -
Page 47: Replace The Sample Pump
Figure 11) are situated in the corresponding guides when inserting the sample pump. c. Check for proper functioning of sample pump. d. Put the cover of the sample pump back in to place. CANNON Instrument Company® | Cleaning and Maintenance... -
Page 48: Standard Equipment
Figure 11: Inserting New Sample Pump Standard Equipment The instrument is delivered pre-assembled and includes the Densi-H density meter with carrying case and manual. Densi-H Operator’s Manual... -
Page 49: Specifications And Technical Data
0.0% to 20.0% • ± 0.3% Accuracy Measurement Range Proof (US) 0.0 to 200.0 • ± 2.0 Accuracy Measurement Range Proof (IP) 0.0 to 175.0 ± 1.75 • Accuracy Display Backlit LC-Display CANNON Instrument Company® | Specifications and Technical Data... - Page 50 Apx. 360 g Measuring time per sample 1 to 10 minutes Data Memory 1100 results Interface Infrared for Printer and PC Battery Operation 2 x 1.5V batteries (LR03); type AAA Battery Lifetime Apx. 90 hours (with backlighting off) Densi-H Operator’s Manual...
-
Page 51: Appendix
0.99996 0.99730 0.99997 0.99705 0.99996 0.99679 0.99994 0.99652 0.99990 0.99624 0.99985 0.99595 0.99978 0.99565 0.99970 0.99534 0.99961 0.99503 0.99950 0.99471 0.99938 0.99438 0.99925 0.99404 0.99910 0.99369 0.99894 0.99333 0.99878 0.99297 0.99860 0.99260 0.99841 0.99222 0.99821 CANNON Instrument Company® | Appendix... -
Page 52: Temperature-Compensation Coefficients Α
0 to 30 1.07 Benzene 6 to 30 1.21 Methanol 6 to 30 1.18 Acetone 0 to 30 1.42 Bromobenzene 0 to 30 0.91 Cyclohexane 0 to 30 1.20 Isopropanol 0 to 30 1.06 n-nonane 0 to 30 1.08 Densi-H Operator’s Manual... - Page 53 CANNON Instrument Company® | Appendix...
- Page 54 Densi-H Operator’s Manual...
- Page 55 CANNON Instrument Company® 2139 High Tech Road | State College, PA | 16803 | USA cannoninstrument.com | sales@cannoninstrument.com...
