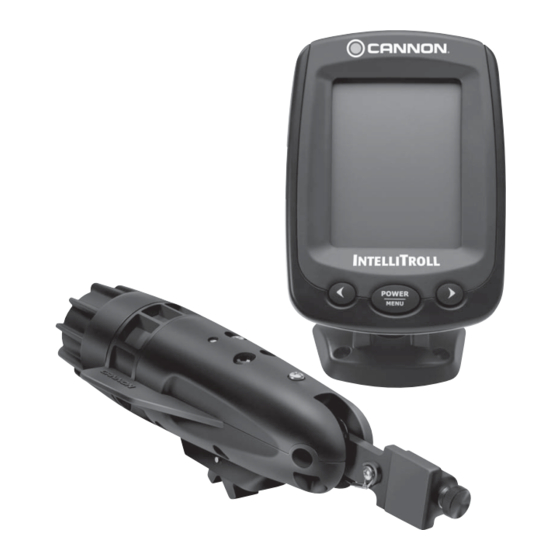

Cannon IntelliTroll Owner's Manual

Speed-n-temp monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
I
T
NTELLI
ROLL
SPEED-N-TEMP MONITOR
Owner's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IntelliTroll and is the answer not in the manual?

Questions and answers

Related Manuals for Cannon IntelliTroll

Summary of Contents for Cannon IntelliTroll

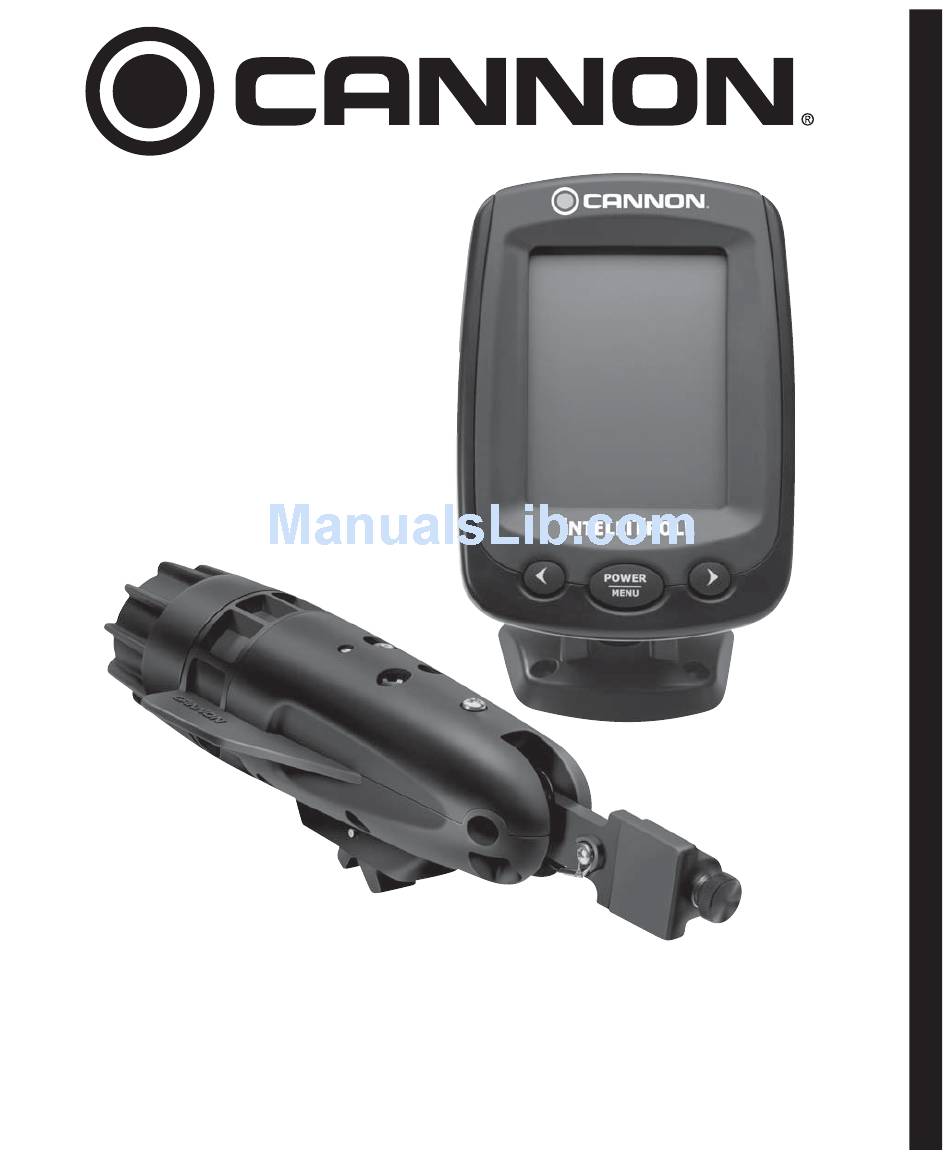

  • Page 1 NTELLI ROLL SPEED-N-TEMP MONITOR Owner’s Manual...
  • Page 2 Serial Number: _____________________________________ Purchase Date: _____________________________________ Store Where Purchased: ______________________________...
  • Page 3 Step 5: Install the coated downrigger cable (optional) Step 1: Mount the Display Your IntelliTroll Monitor has been designed to mount on a fl at surface using the gimbal bracket provided. Four holes in the base of the gimbal bracket allow for wood screws or through-bolt...
  • Page 4 When mounting the monitor to the boat consider rough water conditions. Step 2: Mounting the Spring Antenna The antenna cable provided with this IntelliTroll Monitor is a high grade shielded cable with a helix coil spring antenna on the end. For proper operation the downrigger cable must pass through the inner diameter of the helix coils.
  • Page 5 1/4 amp during use (1-amp peak). Connect fuse to the positive or red lead of the display. If you connect the monitor directly to a 12-Volt battery, obtain and install an inline fuse holder (not included) for the protection of the unit. Cannon is not responsible for over voltage or over-...
  • Page 6 1-amp fast-blow fuse in series with the red wire at the battery. • For best performance of the IntelliTroll the Monitor should be connected to a 12V battery that has the negative (battery–) terminal connected to the water. If the receiver/monitor ground (battery–) is not connected to the water the system will be prone to intermittent...
  • Page 7 For example, if your counter reads 100 feet the actual amount of cable out would be approximately 130 feet. With the IntelliTroll, however, you still have the benefi t of knowing the true depth of the ball and bait.
  • Page 8 The probe is designed to work for over 200 hours before changing batteries is required; however, several factors such as temperature and frequency of use will affect battery life. If you will be storing the IntelliTroll Probe for several months, you should remove the batteries in order to prevent acid leakage and terminal corrosion.
  • Page 9 PROBE INSTALLATION (cont.) Installing Probe on the Downrigger cable To prevent losing the probe overboard it is recommended that the safety lanyard clasp be installed fi rst. Open the clasp hook and place around the downrigger wire. Next loosen the thumb screw at the front end of the probe assembly so the cap slides back enough to slip the uncoated portions of the cable under the cover.
  • Page 10 PROBE INSTALLATION (cont.)
  • Page 11 PROBE INSTALLATION (cont.)
  • Page 12 Both the Digi-Troll 5 and Digi-Troll 10 downriggers are compatible with the IntelliTroll accessory. The Digi-Troll 5 receives the IntelliTroll data and displays it on your Humminbird fi sh fi nder through Cannonlink* or the Intellitroll monitor. The Digi-Troll 10 displays IntelliTroll data directly on the LCD screen on the downrigger.
  • Page 13 PROBE INSTALLATION (cont.) 4. With a 1/4” wrench, loosen the bolt and remove. 5. Install the antenna spring that came with the Intellitroll sensor kit. Insert bolt into the closed loop on the spring.
  • Page 14 PROBE INSTALLATION (cont.) 6. Tighten bolt. Caution: Do not over tighten as the stainless steel bolt head may shear with too much torque. 7. Once the antenna is installed, run downrigger cable through center of spring.
  • Page 15 PROBE INSTALLATION (cont.) 8. Terminate cable as previously described. Your Digi-Troll is now Intellitroll compatible. Once you attach your Intellitroll to the cable per the instructions included, your Digi-Troll 10 will display the data on it’s screen. The Digi-Troll 5...

  • Page 16: System Operation

    SYSTEM OPERATION On / Off of Probe There is no on / off switch for the IntelliTroll Probe. The probe automatically turns on when placed in the water. The probe will automatically turn off when 2 conditions exist: The probe is removed from the water and the speed wheel stops spinning for 60 seconds.
  • Page 17 (nautical miles per hour) 8. Temperature Adjust F° • The IntelliTroll uses the highest quality electronic components and the system is built to have very low error in temperature measurements. However you may see slight differences between the Monitor and other console electronics.
  • Page 18 SYSTEM OPERATION (cont.) On / Off of Display As mentioned previously, the display can be turned on by pressing the POWER/ MENU button. Once the display is on select the REAL mode and press POWER/MENU. At this point data from the probe can now be received. To turn off the display push and hold the POWER/MENU button for 4 seconds.

  • Page 19: Specifications

    SPECIFICATIONS Monitor diagonal: 4 inches Monitor resolution: 160V x 128H Monitor power consumption: 25mA with backlight off 55mA with backlight on Monitor Voltage requirements: 9-14VDC Probe battery requirements: Probe battery life: Greater than 200 hours of run time Display will not turn on: 1.
  • Page 20 Coated cable has a slightly larger diameter and will alter the results of the counter. 2. The probe will also transmit actual depth not line out. If you are trolling you need to consider blow back and how this affects the depth of the cannon ball.
  • Page 21 1. All electronic devices transmit unwanted signals. The receiver (monitor display) is a sensitive electronic radio system. Strong RF signals can interfere with the operation of the IntelliTroll. 2. Verify that the antenna and antenna cable are not in close proximity to larger motors or other radio communication equipment.
  • Page 22 PARTS DIAGRAM...

  • Page 23: Parts List

    PARTS LIST In the U.S.A., replacement parts may be ordered directly from CANNON Parts Dept., 121 Power Dr., Mankato, MN 56661. In Canada, parts may be ordered from any of the Canadian Authorized Service Centers. Visit cannondownriggers.com for a current listing. Be sure to provide the MODEL and SERIAL numbers of your downrigger when ordering parts.

  • Page 24: Limited Warranty

    When the product has been connected, installed, combined, altered, adjusted, serviced, repaired, or handled in a manner other than according to the instructions furnished with the product • When the motor housing is opened by anyone other than Cannon ® Authorized service repair personnel.
  • Page 25 Cannon® Authorized Service Center or Cannon®’s factory, labor to haul out, remove, re-install or re-rig products for warranty service, or any similar items are the sole and exclusive responsibility of the purchaser. Downriggers purchased outside of the U.S.
  • Page 26 ENVIRONMENTAL COMPLIANCE STATEMENT (cont.) most distributors, sellers, and manufacturers of consumer electronics in the European Union. The WEEE Directive requires the producer of consumer electronics to take responsibility for the management of waste from their products to achieve environmentally responsible disposal during the product life cycle. WEEE compliance may not be required in your location for electrical &...
  • Page 28 Consumer & Technical Service Johnson Outdoors Marine Electronics, Inc. PO Box 8129 121 Power Drive Mankato, MN 56001 Phone (800) 227-6433 Fax (800) 527-4464 cannondownriggers.com Copyright 2009 Johnson Outdoors Marine Electroincs, Inc. All rights reserved. Conforms to 89/336/EEC (EMC) under standards EN 55022A, EN 50082-2 since 1996 LN V9677264 WARNING: This product contains chemical(s) known to the state of California to cause cancer and/or reproductive toxicity.
