TriMark e-FOB Full-Function Installation Manual

Keyless-entry system
Hide thumbs Also See for e-FOB:
Table of Contents

Advertisement

Quick Links

Download this manual
e-ASK
A
S
K
e
lectronic
ccess
ecurity
eyless-entry
e
-
FOB
Keyless
-
entry System
e
-
FOB
Keyless
-
entry System
Full
-
Function Installation Manual
Full
-
Function Installation Manual
FCC ID: TV2EFOB1
FCC ID: TV2EFOB1
(UM20~ 22793-02)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the e-FOB and is the answer not in the manual?

Questions and answers

Related Manuals for TriMark e-FOB

Summary of Contents for TriMark e-FOB

  • Page 1 e-ASK lectronic ccess ecurity eyless-entry Keyless entry System Keyless entry System Full Function Installation Manual Full Function Installation Manual FCC ID: TV2EFOB1 FCC ID: TV2EFOB1 (UM20~ 22793-02)

  • Page 2: Table Of Contents

    Table of Contents Introduction ................... 1 e-FOB Operation and Features—Standard Mode ..... 2 e-PAD Operation and Features—Cargo Mode ......3 Teaching Additional FOB Transmitters ........4 Training Wireless Switches ............5 Smart LED ................5 Dip Switch Setting Assignment ..........6 DIP Switch #1: Cargo/Standard Mode ........
  • Page 3 Starter Kill Feature ..............9 Emergency Override ..............10 Vehicle Alarm ................10 Troubleshooting ................11 Appendix: Installation and Mounting e-FOB System ....I General Mounting Guidelines: ........... I Connection Information ............. I RF Receiver ................I Wiring Color Code Tables and Diagrams ........II...

  • Page 4: Introduction

    Introduction This manual provides the necessary information for the installation and use of TriMark’s RF transmitter/receiver system. Basic functions of the system include:  Locking and unlocking entry and compartment doors  Light activation  Panic mode (standard)  Auxiliary functions (standard) The e-FOB system includes: ...

  • Page 5: E-Fob Operation And Features-Standard Mode

    Notes:  While the engine is running only the unlock function of the e-FOB remains activated — other functions are deactivated.   For information on changing the default configuration, see DIP Switch Setting Assignment on page 12.

  • Page 6: E-Pad Operation And Features-Cargo Mode

    Cargo Unlock system. Notes:  While the engine is running only the entry unlock function of the e-FOB remains activated — other functions are deactivated.  For information on changing the default configuration, see DIP Switch Setting Assignment on page 6.

  • Page 7: Teaching Additional Fob Transmitters

    Teaching Additional FOB Transmitters 1. Plug the LED into C6 and the push button into C7 on the receiver. The OEM may have already installed these into the vehicle 2. Turn ignition off and disarm alarm. 3. Press and release the programming button 3 times. The LED will turn on after 3 seconds.

  • Page 8: Training Wireless Switches

    Training Wireless Switches Up to 20 wireless switches can be trained to the RF controller. A wireless switch can provide door ajar information, input from a shock sensor, motion sensor, glass break sensor, etc. 1. Plug the LED into C6 and the programming button into C7 on the receiver.

  • Page 9: Dip Switch Setting Assignment

    Dip Switch Setting Assignment The DIP Switch settings control additional functions. Power to the receiver should be disconnected and reconnected after a DIP switch is changed. Functional assignments are described below: Switch DIP Switch Settings Standard vs Cargo ON = Cargo OFF = Standard Mode Mode...

  • Page 10: Dip Switch #1: Cargo/Standard Mode

    DIP Switch #1: Cargo/Standard Mode  DIP Switch #1 ON: pressing the Cargo Lock (center left) button pulses the staggered lock output. A Cargo Unlock (center right) button press provides pulses from Auxiliary and 2nd unlock outputs.  DIP Switch #1 OFF: the Horn button (center left) activates panic mode.

  • Page 11: Dip Switch #8: Fob Long Unlock Output Selection

    DIP Switch #8: FOB Long Unlock Output Selection  DIP switch #8 ON: holding the Unlock (or Entry Unlock) button provides a mirrored output to the headlights.  DIP switch #8 OFF: holding the Unlock (or Entry Unlock) button provides a mirrored output to Aux 2. DIP Switch #9: FOB Long Unlock Time Selection ...

  • Page 12: Auxiliary Output

    Auxiliary Output Press and release the button. Possible assignments include: interior/ exterior lighting, awning control, gas cap, etc. (Available in standard mode only.) 2nd Auxiliary Output The 2nd Auxiliary output is actuated by holding down the Unlock button for two seconds. The output is either a pulse output or a 5 minute toggle dependent on DIP switch #9.

  • Page 13: Emergency Override

    Emergency Override To disarm the alarm in case of FOB transmitter and access code lose: 1. Turn ignition on (apply 12V to yellow wire). 2. Press and hold the push button for 3 seconds. 3. Turn ignition off (remove 12V from yellow wire). Vehicle Alarm In standard mode, the alarm is armed with either a single or double Lock button press.

  • Page 14: Troubleshooting

    Check FOB transmitter battery voltage. operation Batteries need to be changed every 1-2 years depending on usage. Check wire connection of affected One particular e-FOB function function at RF module and wiring does not work harness e-ASK System Hints Clean the door contacts and make sure they are not bent, damaged, or improperly aligned.
  • Page 15 Remote transmitter FOBs, batteries, and other equipment subject to normal wear and deterioration may need to be replaced periodically by dealer and/or end user and are not covered by this warranty. TriMark will not be liable for indirect, special, incidental or consequential damages.

  • Page 16: Appendix: Installation And Mounting E-Fob System

    Appendix: Installation and Mounting e-FOB System Contact TriMark for specific mounting details, such as drawings, placement suggestions, mounting hardware, etc. General Mounting Guidelines The RF receiver should be placed in an interior location that does not shield RF signals. You may need to try multiple locations to optimize reception.

  • Page 17: Wiring Color Code Tables And Diagrams

    Wiring Color Code Tables and Diagrams The following tables and diagrams are provided to show color-coded wire and pin assignments for the e-FOB system. Connect all wires be- fore plugging module into wiring harness. Wire Colors CONNECTOR 1: 4-PIN HARNESS...
  • Page 18 Wire Colors CONNECTOR 5: 10-PIN HARNESS Green/Black Door Lock (N/C) (relay 30A) Purple Dome Light Output (relay 15A) Pink Dome Light (N/O) (relay 15A) Pink/Black Dome Light (N/C) (relay 15A) Green/White Door Lock (N/O) (relay 30A) Green Lock Output (relay 30A) Blue/Black Door Unlock (N/C) (relay 30A) Blue/White...

  • Page 19: Typical Wiring Configurations

    Typical Wiring Configurations...
  • Page 23 VIII...

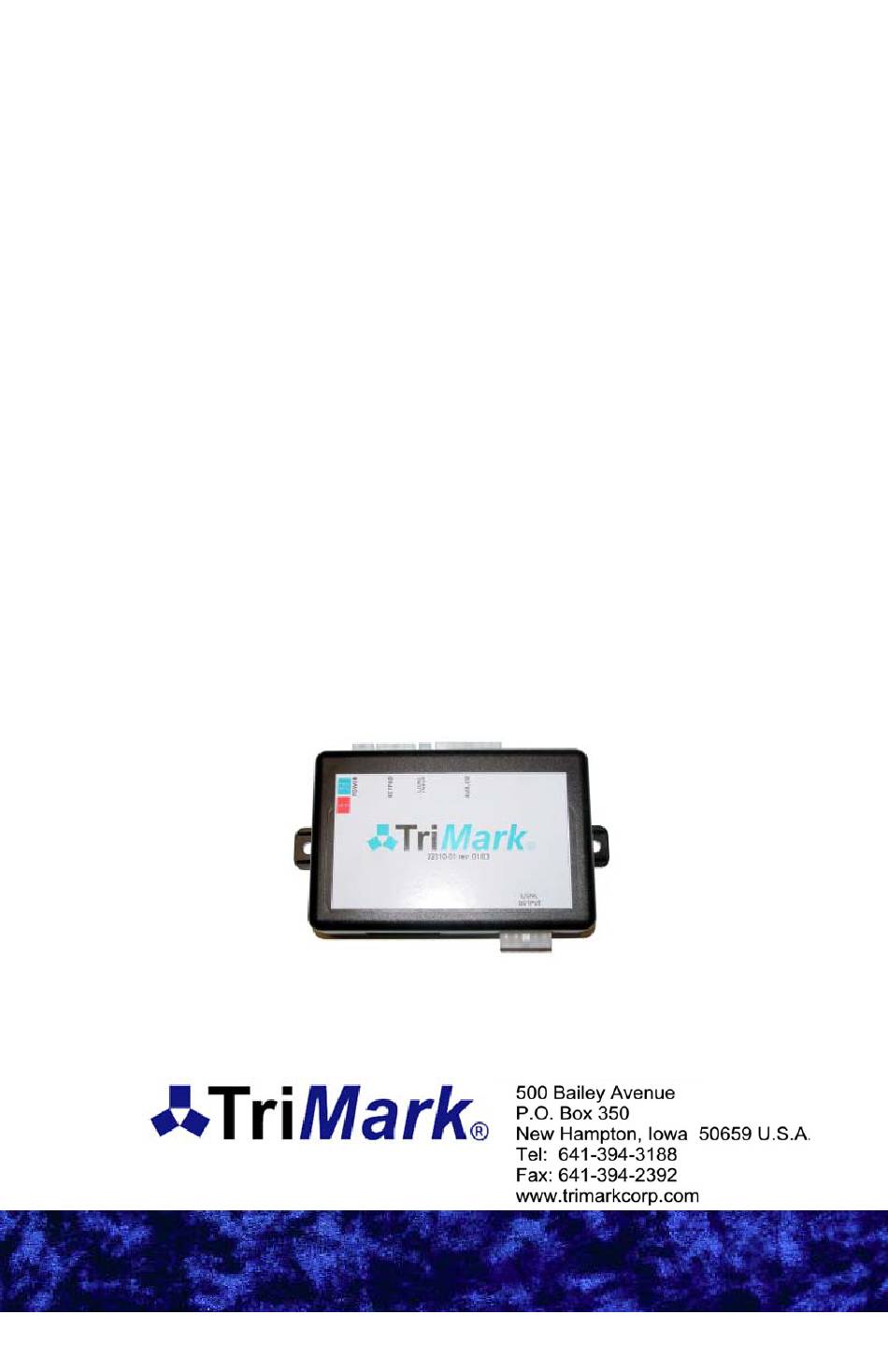

  • Page 24 UM20 22793-02 09/13-4...
