- Page 1 e-ASK lectronic ccess ecurity eyless-entry Installation Instructions Installation Instructions FCC ID: TV2EFOB1 FCC ID: TV2EFOB1 (UM17 ~ 22271-03)
-
Page 2: Table Of Contents
Table of Contents Introduction .................. 1 e-PAD Operation and Features - Standard ........ 2 e-PAD Operation and Features - Cargo ........3 Non-doorbell e-PAD Operation and Features ......3 Doorbell e-PAD Operation and Features ........4 Lock Doors With Keypad ............4 Secure Operations .............. - Page 3 Vehicle Alarm ................12 Lock/Unlock Confirmation Control ..........13 Training Wireless Switches ............13 Troubleshooting ................14 Appendix: Installation and Mounting e-FOB System ....I General Mounting Guidelines: ........... I Wiring Color Code Tables and Diagrams ........I Mating Connector Information ........... I RF Receiver ................
-
Page 4: Introduction
The receiver and FOB transmitters are shipped programmed. After making all necessary wiring connections (see appendix page IV), the e-PAD / e-FOB system will function as indicated in this manual. e-GRAB Handle RF Controller Keypad — available vertical... -
Page 5: E-Pad Operation And Features - Standard
Notes: • While the engine is running only the unlock function of the e-FOB remains activated — other functions are deactivated. • For information on changing the default configuration, see DIP Switch Setting Assignment on page 9. -
Page 6: E-Pad Operation And Features - Cargo
Operation and Features - Cargo Mode Entry Lock Cargo Lock Cargo Unlock Entry UnLock Button Function Entry Lock Locks entry doors and arms security system. Unlocks entry doors and disarms security system. Also Entry Unlock activates the porch light. -
Page 7: Doorbell E-Pad Operation And Features
Doorbell e-PAD Operation and Features Access code: Digit 1 Digit 2 Digit 3 Digit 4 Digit 5 Authority code: Digit 1 Digit 2 Digit 3 Digit 4 Digit 5 Lock Doors With Keypad Press and hold down the (1 / 2) or (1) button for 1-2 seconds. An access code is not needed to lock the doors. -
Page 8: Protective Deactivating Security Feature
Protective Deactivating Security Feature If a correct code is not entered after 20 button presses, the keypad enters an inactive mode that disables button recognition for 1 minute. This helps prevent unauthorized access by entering random codes. There is no button feedback while the system is disabled. Buzzer Operation The keypad buzzer chirps once when power is first applied to the keypad and for each key press during regular use. -
Page 9: Teaching Additional Fob Transmitters
Teaching Additional FOB Transmitters 1. Plug the LED into C6 and the push button into C7 on the receiver. 2. Turn ignition off and disarm alarm. 3. Press and release the programming button 3 times. The LED will turn on after 3 seconds. 4. -
Page 10: Teaching Keypad New Authority / Access Codes
Teaching Keypad New Authority / Access Codes The following procedure assigns an authority and access code. The 5- digit access code is assigned to position one. The same 5-digit code is assigned to the authority and access codes. If the attempt to assign new codes fails, previous authority and access codes remain active. -
Page 11: Assign New Access Codes
Assign New Access Codes With a valid authority code, an access code can be programmed with the following instructions. 1. Press the (5 / 6) or (3) button for 5 seconds, the keypad will beep. The backlighting LED of the keypad will flash indicating the learn mode. -
Page 12: Dip Switch Setting Assignment
DIP Switch Setting Assignment The DIP Switch settings control additional functions. Power to the receiver should be disconnected and reconnected after a DIP switch is changed. Functional assignments are described below: Switch DIP Switch Settings Standard vs Cargo ON = Cargo Mode OFF = Std.Mode Mode Left &... -
Page 13: Dip Switch #1: Cargo/Standard Mode
DIP Switch #1: Cargo/Standard Mode • DIP switch #1 ON: pressing the Cargo Lock button pulses the staggered lock output. A Cargo Unlock button press providespulses from Auxiliary and 2nd unlock outputs. • DIP switch #1 OFF: the Horn button (center left) activates panic mode. -
Page 14: Dip Switch #7: Automatic Lock/Unlock
DIP Switch #7: Automatic Lock/Unlock • DIP switch #7 ON: the auto-locking feature is activated. All doors are locked 5-seconds after ignition start. Doors unlock when the ignition is turned off. THIS FEATURE IS CANCELED if a door is open when the ignition is started. This protects against accidental locking of keys in the vehicle. -
Page 15: 2Nd Unlock Output
2nd Unlock Output Press and release the Unlock button on the FOB transmitter twice for a pulse output. Enter secure operation #2 from keypad in standard mode. In cargo mode, the 2nd unlock output occurs with a cargo unlock button press. 3rd Unlock Output The 3rd unlock output is actuated with the unlock command and with the secure operation #3. -
Page 16: Lock/Unlock Confirmation Control
The alarm is activated with a security trigger input or if the ignition is started. The horn, siren, parking lights and head lights flash for 30 seconds. The starter kill is activated for 30 minutes. Press the Lock or Unlock buttons to deactivate the alarm. There is a 5 second delay before the system will recognize a security input. -
Page 17: Troubleshooting
Check FOB transmitter battery voltage. operation Batteries need to be changed every 1-2 years depending on usage. Check wire connection of affected One particular e-FOB function function at RF module and wiring does not work harness e-PAD Hints No response with button press Verify connection of keypad. - Page 18 Remote transmitter FOBs, batteries, and other equipment subject to normal wear and deterioration may need to be replaced periodically by dealer and/or end user and are not covered by this warranty. TriMark will not be liable for indirect, special, incidental or consequential damages.
-
Page 19: Appendix: Installation And Mounting E-Fob System
Keypad harness provides connection between discrete keypad and RF controller. Wiring Color Code Tables and Diagrams The following tables and diagrams are provided to show color-coded wire and pin assignments for the e-FOB system. Connect all wires before plugging module into wiring harness. Mating Connector Information Power input:... -
Page 20: Rf Receiver
RF Receiver Wire Colors CONNECTOR 1: 4-PIN HARNESS Yellow Ignition Input Black Ground Input Power (+12V) Wire Colors CONNECTOR 2: KEYPAD HARNESS Integrated Harness Wire Colors CONNECTOR 3: 2-PIN HARNESS Green/White Lock Input (-) Blue/White Unlock Input (-) - Page 21 Wire Colors CONNECTOR 4: 14-PIN HARNESS White/Purple (-) Security Trigger Input 3 Orange Armed Output (-500 mA) Brown Starter Kill Output (-500 mA) Gray Lights Output (-500 mA) Brown/White Horn Output (-500 mA) White/Black (-) Security Trigger Input 1 White/Yellow Siren Output (A/C) Red/White Aux.
-
Page 22: Wiring Connections
Wiring Connections WIRING CONNECTION - LOCK/UNLOCK GREEN/ MOTORIZED BLACK ACTUATOR DRIVER'S LOCK INPUT DOOR: BANK 1 10-PIN CONNECTOR ADDITIONAL MOTORIZED GREEN ACTUATOR(S) LOCK OUTPUT MOTORIZED ACTUATOR 10-PIN CONNECTOR (SECONDARY DOORS: BANK 2) BLUE NOTE: ADDITIONAL DOOR UNLOCK OUTPUT ACTUATOR(S) SHOULD ONLY 10-PIN CONNECTOR BE INSTALLED AS APPROPRIATE BASED ON... - Page 23 ACCESSORY CONNECTIONS DOME LIGHT STARTER KILL PURPLE DOME LIGHT OUTPUT 10-PIN CONNECTOR PINK DOME LIGHT POLARITY (N/O) 10-PIN CONNECTOR STARTER KILL EXTERNAL RELAY SUPPLIED + 12 VDC FUSE POWER SIREN 4-PIN CONNECTOR BROWN STARTER KILL 14-PIN CONNECOTR WHITE/ YELLOW SIREN OUTPUT (A/C) 14-PIN CONNECTOR HORN LIGHT...

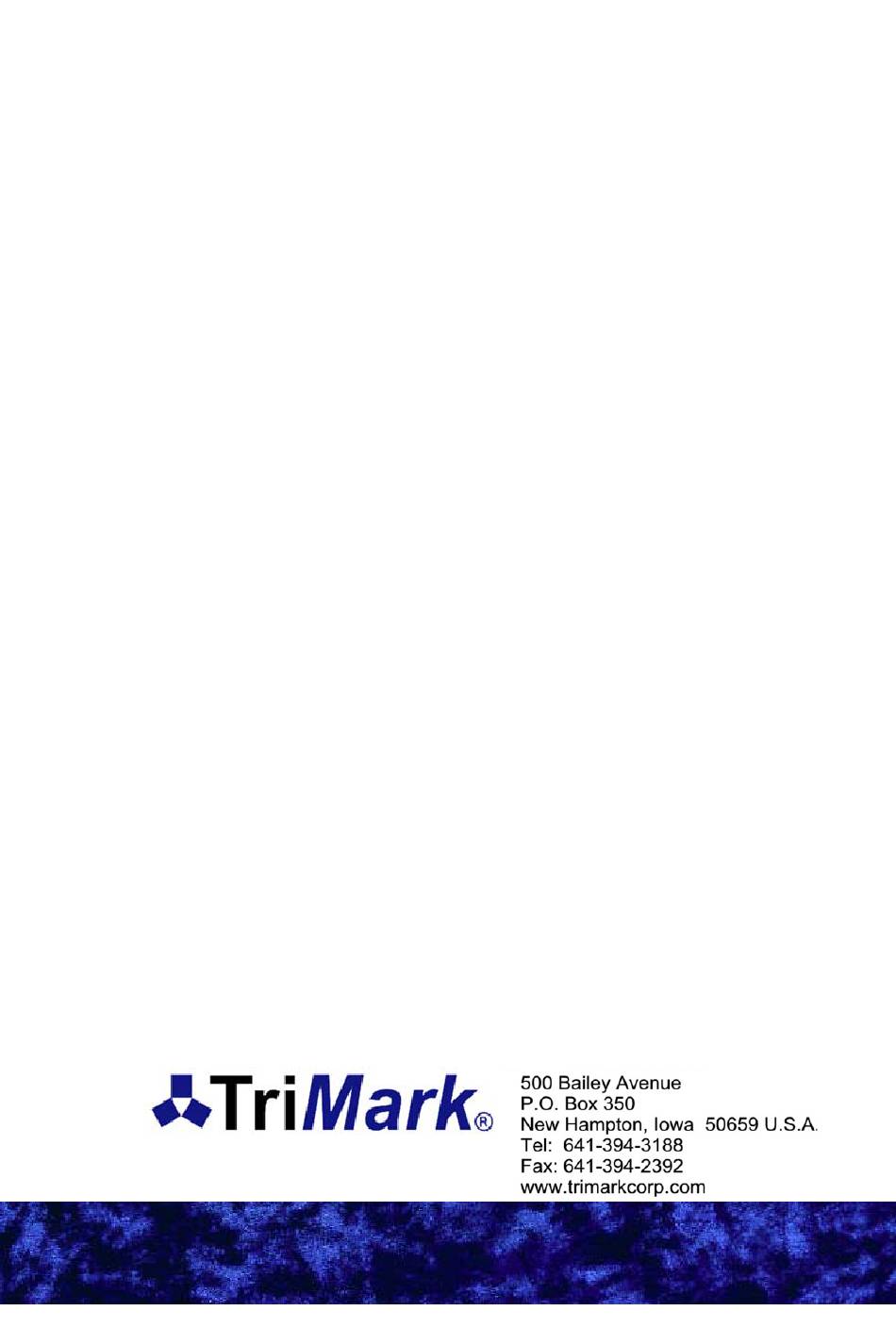

- Page 24 UM17 22271-03 12/07-2...
