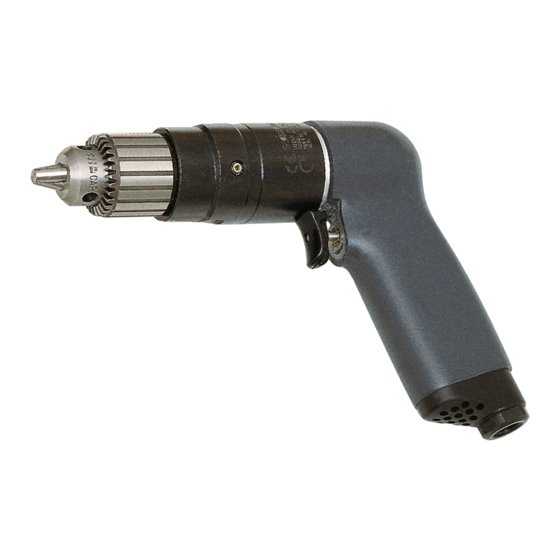

- Page 1 45612702 Edition 2 May 2014 Air Drill 6A Series Maintenance Information Save These Instructions...
- Page 2 Product Safety Information WARNING Failure to observe the following warnings, and to avoid these potentially hazardous situations, could result in death or serious • injury. Read and understand this and all other supplied manuals before installing, operating, repairing, maintaining, changing accessories •...
- Page 3 pull the Seat out of the Motor Housing. CAUTION 9. Before removing the Trigger Bushing (2), all Seals and components must be removed from the Motor Housing. In the following step, apply enough heat to warm the Housing, Grasp the Motor Housing in copper–covered vise jaws with but do not exceed 200°F.
- Page 4 Housing until it seats. Spindle Planet Gears. 14. For M ratio, push the Gear Head Planet Gear Bearings (38) into 10. Withdraw the assembly dowel and insert the Cylinder Dowel (25) until the Cylinder Dowel is slightly below the surface of the Front the Gear Head Planet Gears (37).
