Comfort, Quality & Style Since 1998

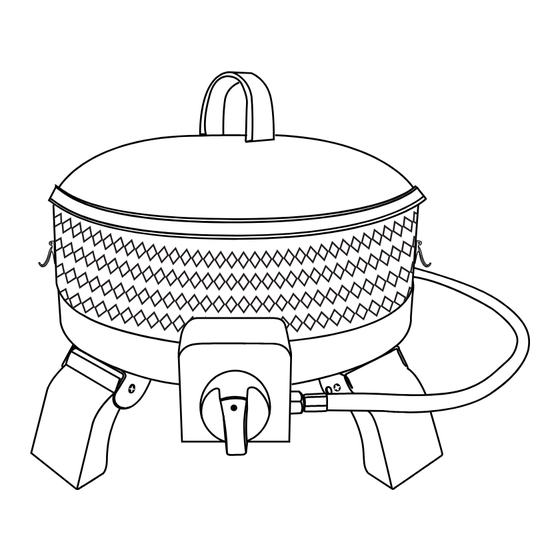

Sporty Portable Gas Fire Pit
Questions, problems, missing parts?
Before returning to your retailer, our exceptional customer service is available.
Call us toll-free at (866) 985-7877, email us at cservice@welltraveled.net, or go online
and live chat at www.wtliving.com. Our hours are: 9 a.m. – 6 p.m., EST, Monday – Friday
Item#: 62133
WARNING
FOR YOUR SAFETY
If you smell gas:
1. Shut off gas to the appliance
2. Extinguish any open flame
3. If odor continues, immediately call gas supplier.
WARNING
FOR YOUR SAFETY
Do not store or use gasoline or other flammable
vapors or liquids in the vicinity of this or any
other appliance.
WARNING
For Outdoor Use Only
WARNING
This product can expose you to chemicals
including carbon monoxide which is known to the
State of California to cause birth defects or other
reproductive harm. For more information go to
www.P65Warnings.ca.gov.
ATTACH YOUR
RECEIPT HERE
Keep a copy of your proof of
purchase or order confirmation
which will be needed if you
need to contact us about
warranty coverage.
Purchase Date:
H
L
Advertisement
Related Manuals for Fire Sense 62133
Summary of Contents for Fire Sense 62133
- Page 1 Comfort, Quality & Style Since 1998 Sporty Portable Gas Fire Pit Item#: 62133 WARNING FOR YOUR SAFETY If you smell gas: 1. Shut off gas to the appliance 2. Extinguish any open flame 3. If odor continues, immediately call gas supplier.
-
Page 2: Table Of Contents
www.wtliving.com TAblE OF CONTENTS Table of Contents Page 2 before You begin Page 2 Package Contents Page 3 Safety Information Page 4-5 Assembly Page 6-7 Operating Instructions Pages 8-11 Care and Maintenance Page 12 Troubleshooting Page 13 Warranty Information Page 14 bEFORE YOU bEGIN Please read and understand this entire manual before attempting to assemble, operate or install this appliance. - Page 3 PACKAGE CONTENTS PART DESCRIPTION QUANTITY Handle Fire Ring Fire Bowl Buckle Fire Bowl Base Isolation Plate Ignition Box Control Valve Valve Base Ignition Button Isolation Plate Support Ignition Needle Ignition Cap Folding Leg Lava Rocks 3.3 lbs Regulator/Hose Assembly Tank Stand Contact us for assistance: (866) 985-7877 | www.wtliving.com...
-
Page 4: Safety Information
SAFETY INFORMATION DANGER CAUTION DANGER EXPLOSION - FIRE HAZARD SERVICE SAFETY CARBON MONOXIDE HAZARD • Keep all connections and fittin gclean. • Keep solid combustibles, such as building • This fire pit is a combustion appliance. All Make sure propane cylinder valve outlet materials, paper or cardboard, a safe distance combustion appliances produce carbon is clean. -
Page 5: Safety Information
SAFETY INFORMATION WARNING WARNING WARNING We cannot foresee every use which may be FOR OUTDOOR USE ONLY • This product is fueled by propane gas. Propane gas is invisible, odorless, and made of our fire pit. Check with your local CARBON MONOXIDE HAZARD flammable. -
Page 6: Folding Leg
ASSEMblY PREPARATION Before beginning assembly, be sure to empty contents of carton and make sure all parts are present. If any parts are missing, please contact Customer Service at (866)-985-7877, Monday-Friday, 9 a.m. - 6 p.m. EST or email at cservice@welltraveled.net. Place all parts on a soft, level surface for assembly. - Page 7 ASSEMblY Add the lava Rocks Connect the Hose and Regulator to the LPG cylinder. Place cylinder in the Tank Stand and tighten the screw at the base of the stand. Use this fire pit only with a propane vapor withdrawal supply system. See Chapter 5 of the standard for storage and handling of liquefied petroleum gas, ANSI/NFPA 58.
-
Page 8: Assembly
OPERATING INSTRUCTIONS A dented, rusted or damaged propane cylinder may be hazardous and should be checked by your cylinder supplier. Never use a propane cylinder with a damaged valve connection. The propane cylinder must be constructed and marked in accordance with the specifications for LPG cylinders of the U.S. - Page 9 OPERATIONS INSTRUCTIONS lEAK CHECK WARNING: • Perform all leak tests outdoors. • Extinguish all open flames. • NEVER leak test when smoking. • Do not use the fire pit until all connections have been leak tested and do not leak. Hose / Regulator Connection Underside of burner...
-
Page 10: Assembly
OPERATING INSTRUCTIONS CAUTION WARNING DANGER! Do not attempt to operate until you FOR OUTDOOR USE ONlY have read and understand all General Very hot while in operation! Never lean over the fire pit while in use. Safety Information in this manual and CARbON MONOXIDE HAZARD Do not touch the burner Assembly while all assembly is complete and leak... -
Page 11: Operating Instructions
OPERATING INSTRUCTIONS OPERATION INFORMATION OPERATION CHECKlIST: AND SAFETY: For a safe and pleasurable heating experience, perform this check before each use: • Unit will operate at reduced efficiency below 40 degrees F. bEFORE OPERATING: • Children and adults should be I am familiar with entire owner’s manual and understand all alerted to the hazards of high surface precautions noted. -
Page 12: Care And Maintenance
CARE & MAINTENANCE STORAGE: To enjoy years of outstanding performance from your fire pit, make sure you between uses: perform the following maintenance activities on a regular basis: • Turn control knob OFF. • Disconnect LP source. 1. Use warm soapy water for cleaning. Never use flammable or corrosive •... -
Page 13: Troubleshooting
TROUblESHOOTING PROblEM POSSIblE CAUSE CORRECTIVE ACTION Propane cylinder is empty Replace propane cylinder Burner will Blockage in orifice Clear blockage not light Control knob is not in ON position Turn control knob to ON Gas pressure is low Turn cylinder valve OFF and replace cylinder Burner flame Outdoor temperature is less than Use a full cylinder... - Page 14 716 S 8th Street, Amelia Island, FL 32034 online and live chat at www.wtliving.com. Our hours are: wtliving.com | cservice@welltraveled.net 9 a.m. – 6 p.m., EST, Monday – Friday (866) 985-7877 Fire Sense ® , Mojave Sun ® , and Well Traveled Living ®...
