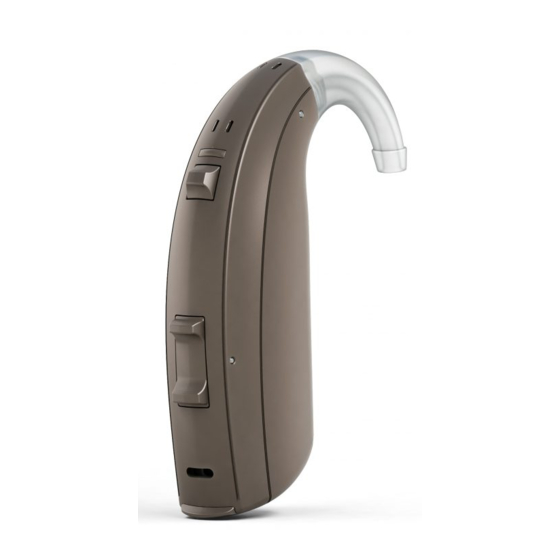

Technical Manual
RS LONDON Platform
ReSound A/S
Global Technical Operations
http://gto.gnresound.com
Lautrupbjerg 7
DK-2750 Ballerup
Denmark

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ENZO QUATTRO Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ReSound ENZO QUATTRO Series

Summary of Contents for ReSound ENZO QUATTRO Series

  • Page 1 Technical Manual ReSound A/S Global Technical Operations RS LONDON Platform http://gto.gnresound.com Lautrupbjerg 7 DK-2750 Ballerup Denmark...

  • Page 2: Table Of Contents

    Doc 0223520 rev N Table of Contents Form-Factor-Matrix & Product Information ....................3-8 Colour overview ............................9-10 Part list - LO85 models ............................11 Part list - LO90 models ............................12 Part list - CROS ..............................13 Part list - accessories (pediatrics all form factors) ..................14 Part list - programmed service modules ......................15 Part list - test &...
  • Page 3 Form-Factor-Matrix & Prod Info - ENZO QUATTRO (LO90 Coyote 5.0) Doc 0223520 rev N Data Sheet Platform (C5.0) Family Model Doc No EQ998-DWT LONDON (LO90) CK (Cloud Key) EQ798-DWT SUPER POWER BTE ENZO QUATTRO 401238000 Batt size 675 zinc air no LED - manual child lock EQ598-DWT DWT: Dual mic, Wireless, Telecoil...
  • Page 4 Form-Factor-Matrix & Prod Info - ENZO, ENZO & ENZO 3D (LO90 Coyote 4.5) Doc 0223520 rev N Data Sheet Platform (C4.5) Family Model Doc No LONDON (LO90) ENZO 3D 9 (MFI) ET998-DW CK (Cloud Key) ENZO 3D 7 (MFI) ET798-DW SUPER POWER BTE 400740000 Batt size 675 zinc air...
  • Page 5 Form-Factor-Matrix & Prod Info - UP SMART & M (LO90 Coyote 4.5) Doc 0223520 rev N Data Sheet Platform (C4.5) Family Model Doc No UP SMART 9 (MFI) UPS998-DLW LONDON (LO90) SUPER POWER BTE UP SMART 7 (MFI) UPS798-DLW Batt size 675 zinc air 400312000 UP SMART 5 (NO-MFI) UPS598-DLW...
  • Page 6 Form-Factor-Matrix & Prod Info - LiNX (LO85 Coyote 4.5) Doc 0223520 rev N Data Sheet Platform (C4.5) Family Model Doc No LiNX 9 (MFi) LN988-DW LONDON (LO85) POWER BTE LiNX 7 (MFi) LN788-DW 400304000 wireless batt size 13 zinc air LiNX 5 (NO MFi) LN588-DW LONDON (LO85)
  • Page 7 Form-Factor-Matrix & Prod Info - UP SMART / M (LO85 Coyote 4.5) Doc 0223520 rev N Data Sheet Platform (C4.5) Family Model Doc No UP SMART 9 (MFI) UPS988-DLW LONDON (LO85) POWER BTE UP SMART 7 (MFI) UPS788-DLW Batt size 13 zinc air 400311000 UP SMART 5 (NO MFI) UPS588-DLW...

  • Page 8: Form-Factor-Matrix & Product Information

    Form-Factor-Matrix & Product Information - UP (LO85 Coyote 4.5) Doc 0223520 rev N Data Sheet Platform (C4.5) Family Model Doc No LONDON (LO85) UP 9 UP988-DLW POWER BTE Batt size 13 zinc air 400217000 (PEDIATRIC) UP 7 UP788-DLW with LED and “automatic” child lock LONDON (LO85) UP 9 UP977-DLW...

  • Page 9: Colour Overview

    Colour Overview HSG Parts - LiNX models (LO85) Doc 0223520 rev N HOUSING (HSG) PART - COLOUR HI COLOUR TGL LID TOP HSG BOT HSG BAT DOOR LIGHT BLONDE (LBL) MEDIUM BLONDE (MBL) DARK BROWN (DBR) BEIGE (BGE) MONZA RED (MON RED) PNT BLK PNT BLK MON RED...
  • Page 10 Colour Overview HSG Parts - UP & UP SMART / M Models (LO85) Doc 0223520 rev N HOUSING (HSG) PART - COLOUR HI COLOUR TGL LID TOP HSG BOT HSG BAT DOOR LIGHT BLONDE (LBL) MEDIUM BLONDE (MBL) DARK BROWN (DBR) MONZA RED (MON RED) PNT BLK PNT BLK...

  • Page 11: Part List - Lo85 Models

    Part List - LO85 Models Doc 0223520 rev N Description Part No Description Part No TONE TUBE, BABY (tone tube/hook without filter) * 17006200 PIN REMOVAL TOOL, PACKED 15502500 TONE TUBE, CHILD (tone tube/hook without filter) * 17006000 CHILDLOCK, RED (colour marker) 15966400 TONE TUBE, ADULT (tone tube/hook without filter) * 17508500...

  • Page 12: Part List - Lo90 Models

    Part List - LO90 Models Doc 0223520 rev N Description Part No Description Part No PIN,0.60X6.80 (for BAT DR & TGL) 16949100 FM02,NB (US/CA) 19079900 PIN,0.60X5,65 (top/bot HSG hook end) 16059300 FM02,HA (EU) 18645600 KIT,PINS,LO90 BAT & VC/TGL,5PCS 19216100 FM02,HA,PED,ANT (pediatric) 19396400 TOGGLE CAP,SGL 17525600...

  • Page 13: Part List - Cros

    Part List - CROS Doc 0223520 rev N Description Part No CROS,SUREFIT,EUROPLUG,SMALL* 20040500 CROS,SUREFIT,EUROPLUG,MEDIUM * 20040600 CROS,SUREFIT,EUROPLUG,LARGE * 20040700 CROS,SUREFIT,AUDIO SHOE,SMALL * (fits LO85 models only) 20040900 CROS,SUREFIT,AUDIO SHOE,MEDIM * (fits LO85 models only) 20041000 CROS,SUREFIT,AUDIO SHOE,LARGE * (fits LO85 models only) 20041100 * Lengths: S = 25 cm, M = 28 cm, L = 31 cm (excl CROS hook) CROS,SF...

  • Page 14: Part List - Accessories (Pediatrics All Form Factors)

    Part List - Accessories Pediatrics (fit all form factors) Doc 0223520 rev N Blister packs with guides Part No BEND AND GO KIT 19229700 CLIP AND GO 19057000 STICK AND GO 19212500 KIT Bend & Go (pediatrics) Stick & Go (pediatrics) Clip &...

  • Page 15: Part List - Programmed Service Modules

    Part List - Programmed Service Module/ASM FRAME Doc 0223520 rev N Serv Mod/ASM Frame prog Serv Mod/ASM Frame prog Serv Mod/ASM Frame prog Part No Part No Part No LiNX (LO85) UPS & UPS M (LO90) ENZO (LO90) LN988-DW 19231900 UPS998-DLW 19227800 EN998-DW...

  • Page 16: Part List - Test & Prog Equipment 70/80

    Part List - Test & Prog Equipment (LO85 models) Doc 0223520 rev N Test Equipment Part No PROG. CABLE EXTENSION, MILANO 17517800 SERVICE JIG/FIXTURE 16695100 COUPL MIC,TSYS,TM-12,MEASURED 18220700 TEST FRAME 16902800 BATTERY PILL, 13+ 17449400 PROG CABLE R (CS44) 9022 907 69019 PRG ADAPTOR 2 (CS44) PROG CABLE L (CS44) 9022 907 69029...

  • Page 17: Part List - Test & Prog Equipment 90

    Part List - Test & Prog Equipment (LO90 models) Doc 0223520 rev N Test Equipment Part No PROG. CABLE EXTENSION, MILANO 17517800 TEST JIG, DELHI90 18985500 COUPL MIC,TSYS,TM-12,MEASURED 18220700 BATTERY PILL, 675+ 17449500 PROG CABLE R (CS44) 9022 907 69019 PROG CABLE L (CS44) 9022 907 69029 DAI-PRGM,LO90,PKG (NON-PED)

  • Page 18: Part List - Separate Hsg Parts

    Part List - HSG Parts - ENZO QUATTRO (LO90 models) Doc 0223520 rev N COLOUR TGL LID * TOGGLE HSG TOP HSG BOT BAT DOOR 19228201 19227701 19228101 19228401 20540501 21330401 19228202 19227702 19228102 19228402 20540502 21330402 19228204 19227704 19228104 19228404 20540522 21330404...
  • Page 19 Part List - HSG Parts - ENZO, ENZO & ENZO 3D (LO90 models) Doc 0223520 rev N COLOUR TGL LID * TOGGLE HSG TOP HSG BOT BAT DOOR EO/EN98-DW ET98-DW EO98-DW EN98-DW ET98-DW 19228201 19227701 19228101 19228401 19228601 20540501 19228501 19948201 20540401 19228202...
  • Page 20 Part List - HSG Parts - UP SMART & UP SMART M (LO90 models) Doc 0223520 rev N COLOUR TGL LID * TOGGLE HSG TOP HSG BOT BAT DOOR 19228201 19227701 19228101 19443801 19444001 19443701 19228202 19227702 19228102 19443802 19444002 19443702 19228204 19227704...
  • Page 21 Part List - HSG Parts - LiNX (LO85 models) Doc 0223520 rev N TOGGLE COLOUR TGL LID* HSG TOP HSG BOT BAT DOOR (TGL) 18100701 18099301 18100901 18101001 18101601 19227301 18100702 18099302 18100902 18101002 18101602 19227302 18100704 18099304 18100904 18101004 18101604 19227304 18100705...
  • Page 22 Part List - HSG Parts - UP SMART & UP SMART M (LO85 models) Doc 0223520 rev N COLOUR TGL LID* TOGGLE HSG TOP HSG BOT BAT DOOR 18100701 18099301 18100901 18717101 18101601 19226701 18100702 18099302 18100902 18717102 18101602 19226702 18100704 18099304 18100904...
  • Page 23 Part List - ADULT Repl Packs / Kits - UP SMART & UP SMART M (LO85 models) Doc 0223520 rev N Description Part No REPL KIT,UPS 77/88,ADULT,LBL 19711901 REPL KIT,UPS 77/88,ADULT,MBL 19711902 REPL KIT,UPS 77/88,ADULT,DBR 19711904 REPL KIT,UPS 77/88,ADULT,MON RED 19711906 By replacing top HSG to the “adult”...
  • Page 24 Part List - HSG Parts - UP (LO85 models) Doc 0223520 rev N COLOUR TOGGLE LID* TOGGLE HSG TOP HSG BOT BAT DOOR 18100701 18099301 18100901 18717101 18101601 18717201 18100702 18099302 18100902 18717102 18101602 18717202 18100704 18099304 18100904 18717104 18101604 18717204 MON RED 18717106...

  • Page 25: Part List - Thin Tubes & Domes

    Part List - SUREFIT Thin Tubes & Domes (STD BTE only) Doc 0223520 rev N THIN TUBE BLISTER PACKS DOMES FOR SUREFIT THIN TUBES RIGHT LEFT (3 x cleaning tubes / 5 x thin tubes) Description THIN TUBE,SF,0A 19402600 19403500 (10 pcs) THIN TUBE,SF,0B 19402700...

  • Page 26: Disassemble - 90 Models

    Disassemble - LO90 Models (ENZO 90 is shown) Doc 0223520 rev N The LO85 & 90 models are quite similar to disassemble. For the 90 model there is however a few extra steps to get it separated - shown in the pics below.
  • Page 27 Disassemble - LO85 Model shown Doc 0223520 rev N Remove the hook by tur- LiNX LO85: Recomended batt door opening process: Hold UP/UPS LO85: Hold HI between thumb and index finger. Use ning counterclockwise the HI between thumb and index finger. Use index finger index finger on the other hand to gently press down.
  • Page 28 Disassemble - LO85 Model shown Doc 0223520 rev N PB and cap Bat door PB and silicone cap come easily off Push out the batt pin with the pin removal tool and pull it out to separate the batt door from the module. together with the top HSG Gently remove the batt door TGL silicone cap...
  • Page 29 HI - Disassembled Doc 0223520 rev N Disassembled LO85 Disassembled LO90 Page 29 of 39 Not subject to issue control when printed...

  • Page 30: Replace Parts

    Replace Parts on LO85 Models Doc 0223520 rev N When changing HSG bot, the ID plate must be transferred to new HSG (only LO85 mod- els). Please note the ID plate is not an available spare part. Push out the plate from inside the old HSG by using a pin or tweezer Two prong One prong...
  • Page 31 Reassembling - LO85 Model shown Doc 0223520 rev N Pin for bat door PB to be PB in place cover inserted Re-assembling: The LED cover is clicked in place into top HSG. Insert PB into top HSG with the widest side towards batt door. For LO85 models: Add TGL/LID to the module.
  • Page 32 Replace Parts - TGL / LID & Hook Filter LO85 Models Doc 0223520 rev N Check that the silicone cap is in place. Insert new TGL or TGL. Press down until it clicks in place. Make sure the arrow on the back side of the TGL is pointing towards the hook Only for LO85 models: Open bat door with the childlock release tool Toggle / lid as descriped already and gently press with a small screwdriver onto...

  • Page 33: Test Equipment - 70/80 Models

    Test Equipment - LO85 Models Doc 0223520 rev N Prog adaptor (generic) 2cc coupler insert BTE p/n 18041400 p/n 40B4609601 Prog adaptor clip 2cc coupler Coupl Mic,TM-12,measured Batt pill must be CS44 Prog cable 17736900 Red p/n 30-4838800 p/n 18220700 used during test (Left blue is shown) 17736901 Blue...

  • Page 34: Testing - 70/80 Models

    Testing - LO85 Models Doc 0223520 rev N Button (press down to unlock after use) Add a batt pill and close batt door. Insert the one end of the prog adapt into Push the bot part of the prog the square prog port of the device adapt until it clicks to lock it on the device Connect the ext prog cable to the...
  • Page 35 Prog Adaptor Clip - LO85 Models Doc 0223520 rev N Prog adaptor clip To be used with prog adapt 18041400 only Clip for prog adaptor L/R It is important to have the programming cable connected before adding the clip to the prog adapt.
  • Page 36 HI Testing - LO85 Models Doc 0223520 rev N Use of test fixture is mandatory during DSA6000 final HI testing. The HI fixture/jig is to be placed in the black test frame. Place the HI in the fixture according to pic and place it all in the test chamber and select the correct test tpix and make sure to follow instructions coming up on the screen. During the test programme execution the IAD calibration will be performed at the appropriate time.

  • Page 37: Test Equipment - 90 Models

    Test Equipment - LO90 Models Doc 0223520 rev N Prog Adapt with CS44 2cc coupler insert BTE 2cc coupler Batt pill must be used CS44 Prog cable prog socket p/n 40B4609601 p/n 30-4838800 during test (Left blue is shown) 19299400 non pediatric p/n 17449500 size 675 9022 907 69019 (R) Both coupler parts can be ordered with GTO...

  • Page 38: Testing - 90 Models

    Testing - LO90 Models Doc 0223520 rev N Locate the pin for the bat door. Push it out and remove the bat door. Add the correct prog adapt (pediatric or non pediatric) and fix it with the pin. Insert batt pill size 675 Gently close the batt door and connect the CS44 prog cable.

  • Page 39: Wireless Test

    Wireless Test Doc 0223520 rev N The wireless range test is a combined DSA6000 NOAHLINK SAS-3 Noahlink/SAS Range Check test using the SAS-3 with its MAC address entered into the DSA 6000 system configuration and a Noahlink mounted directly in any of the DSA 6000 units USB ports. No fixture is required performing a wireless range test How to get the MAC address of the SAS: It is not...
