5.7

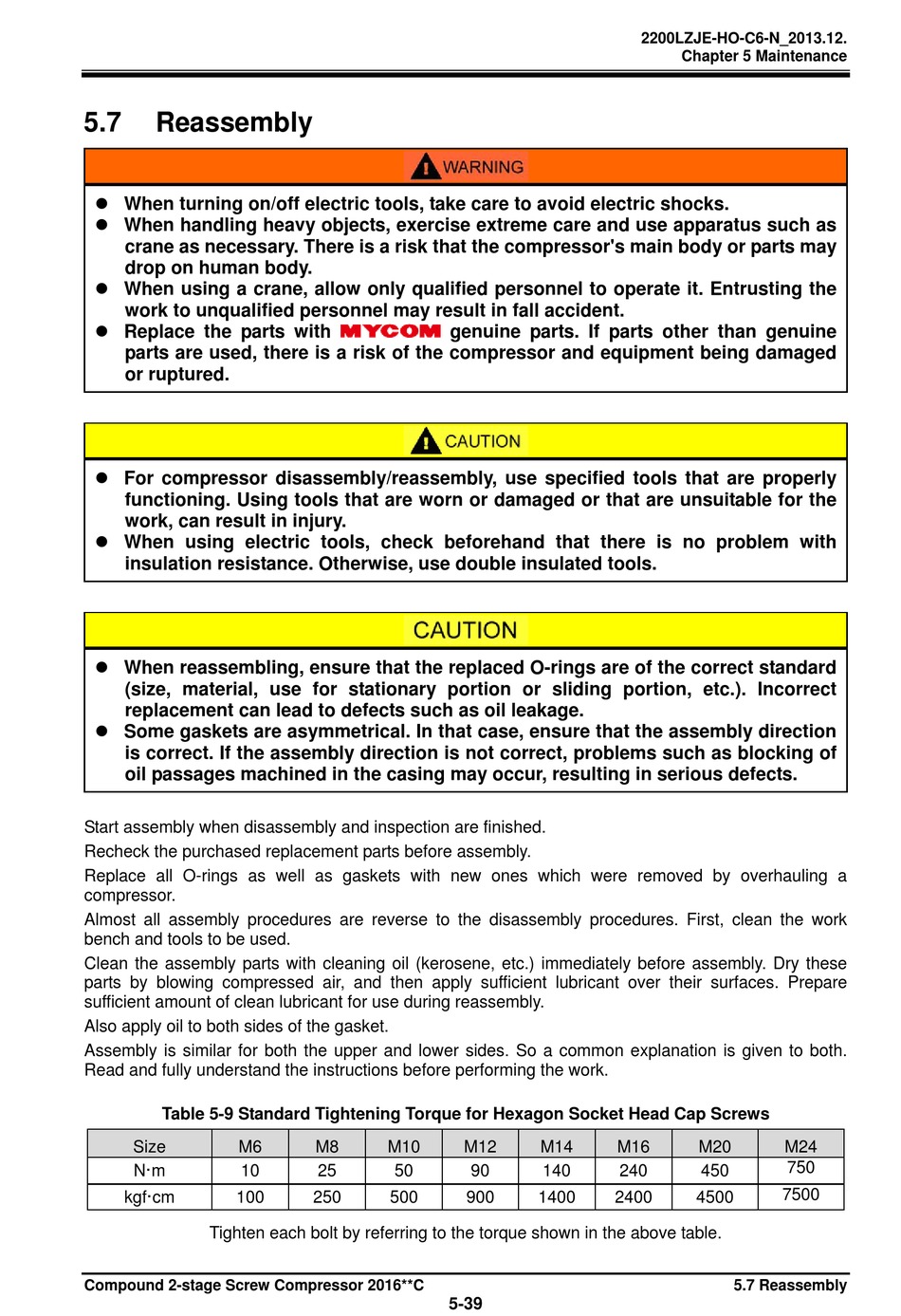

Reassembly

 When turning on/off electric tools, take care to avoid electric shocks.
 When handling heavy objects, exercise extreme care and use apparatus such as
crane as necessary. There is a risk that the compressor's main body or parts may
drop on human body.
 When using a crane, allow only qualified personnel to operate it. Entrusting the
work to unqualified personnel may result in fall accident.
 Replace the parts with
parts are used, there is a risk of the compressor and equipment being damaged
or ruptured.
 For compressor disassembly/reassembly, use specified tools that are properly
functioning. Using tools that are worn or damaged or that are unsuitable for the
work, can result in injury.
 When using electric tools, check beforehand that there is no problem with
insulation resistance. Otherwise, use double insulated tools.
 When reassembling, ensure that the replaced O-rings are of the correct standard
(size, material, use for stationary portion or sliding portion, etc.). Incorrect
replacement can lead to defects such as oil leakage.
 Some gaskets are asymmetrical. In that case, ensure that the assembly direction
is correct. If the assembly direction is not correct, problems such as blocking of
oil passages machined in the casing may occur, resulting in serious defects.
Start assembly when disassembly and inspection are finished.
Recheck the purchased replacement parts before assembly.
Replace all O-rings as well as gaskets with new ones which were removed by overhauling a
compressor.
Almost all assembly procedures are reverse to the disassembly procedures. First, clean the work
bench and tools to be used.
Clean the assembly parts with cleaning oil (kerosene, etc.) immediately before assembly. Dry these
parts by blowing compressed air, and then apply sufficient lubricant over their surfaces. Prepare
sufficient amount of clean lubricant for use during reassembly.
Also apply oil to both sides of the gasket.
Assembly is similar for both the upper and lower sides. So a common explanation is given to both.
Read and fully understand the instructions before performing the work.
Table 5-9 Standard Tightening Torque for Hexagon Socket Head Cap Screws
Size M6
N·m 10
kgf·cm 100
Tighten each bolt by referring to the torque shown in the above table.
Compound 2-stage Screw Compressor 2016**C
genuine parts. If parts other than genuine
M8 M10 M12
25 50 90
250 500 900
5-39
2200LZJE-HO-C6-N_2013.12.
Chapter 5 Maintenance
M14 M16 M20
140 240 450
1400 2400 4500
M24
750
7500
