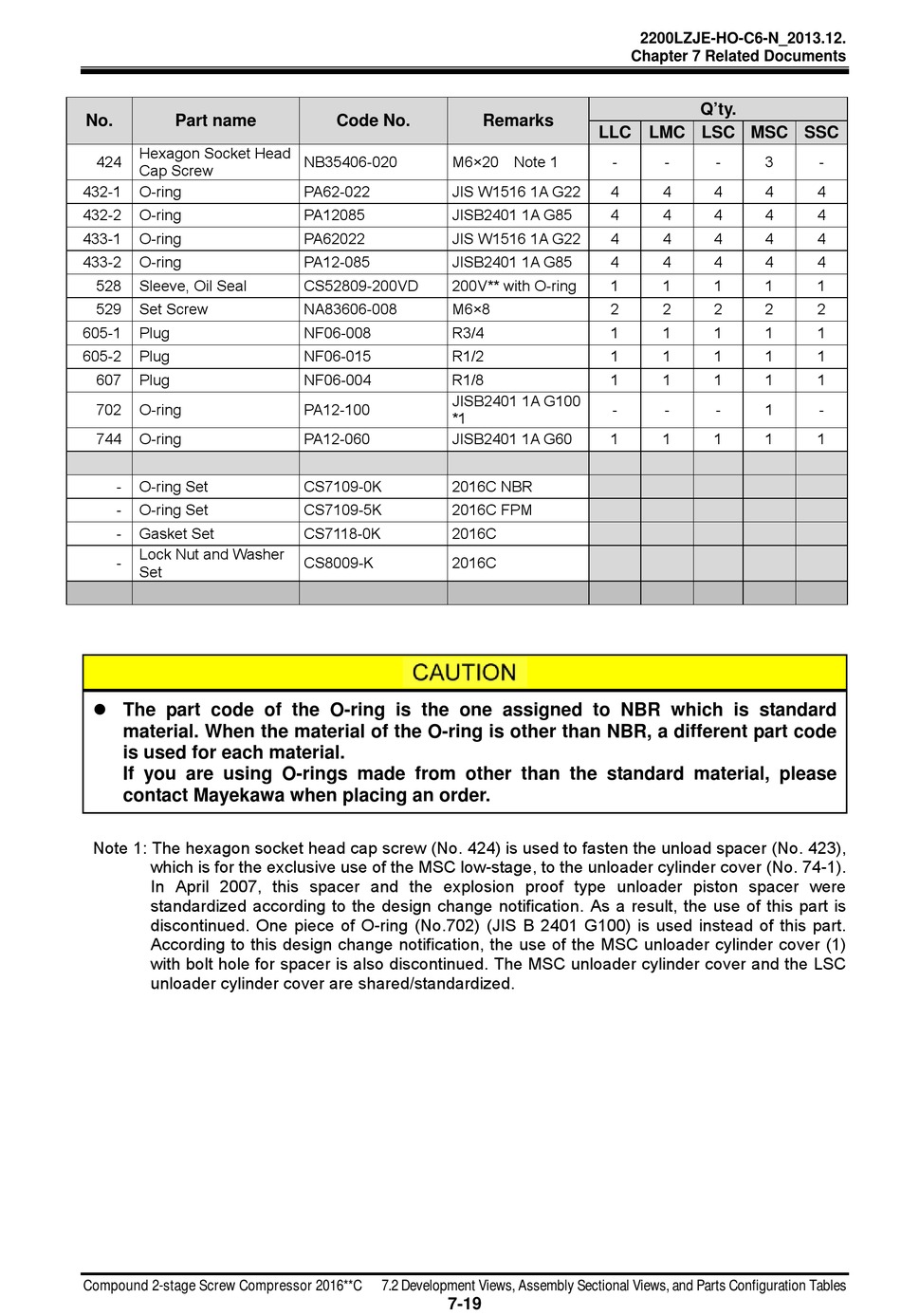

mycom 2016 C Series Instruction Manual page 141

No. Part name
Hexagon Socket Head
424
Cap Screw
432-1 O-ring
432-2 O-ring
433-1 O-ring
433-2 O-ring
528 Sleeve, Oil Seal
529 Set Screw
605-1 Plug
605-2 Plug
607 Plug
702 O-ring
744 O-ring
- O-ring Set
- O-ring Set
- Gasket Set
Lock Nut and Washer
-
Set
 The part code of the O-ring is the one assigned to NBR which is standard
material. When the material of the O-ring is other than NBR, a different part code
is used for each material.
If you are using O-rings made from other than the standard material, please
contact Mayekawa when placing an order.
Note 1: The hexagon socket head cap screw (No. 424) is used to fasten the unload spacer (No. 423),
which is for the exclusive use of the MSC low-stage, to the unloader cylinder cover (No. 74-1).
In April 2007, this spacer and the explosion proof type unloader piston spacer were
standardized according to the design change notification. As a result, the use of this part is
discontinued. One piece of O-ring (No.702) (JIS B 2401 G100) is used instead of this part.
According to this design change notification, the use of the MSC unloader cylinder cover (1)
with bolt hole for spacer is also discontinued. The MSC unloader cylinder cover and the LSC
unloader cylinder cover are shared/standardized.
Compound 2-stage Screw Compressor 2016**C
Code No.
NB35406-020 M6×20 Note 1
PA62-022 JIS W1516 1A G22
PA12085 JISB2401 1A G85
PA62022 JIS W1516 1A G22
PA12-085 JISB2401 1A G85
CS52809-200VD 200V** with O-ring
NA83606-008 M6×8
NF06-008 R3/4
NF06-015 R1/2
NF06-004 R1/8
JISB2401 1A G100
PA12-100
*1
PA12-060 JISB2401 1A G60
CS7109-0K 2016C NBR
CS7109-5K 2016C FPM
CS7118-0K 2016C
CS8009-K 2016C
7.2 Development Views, Assembly Sectional Views, and Parts Configuration Tables
7-19
2200LZJE-HO-C6-N_2013.12.
Chapter 7 Related Documents
Remarks
LLC LMC LSC MSC SSC
-
4
4
4
4
1
2
1
1
1
-
1
Q'ty.
- - 3 -
4 4 4 4
4 4 4 4
4 4 4 4
4 4 4 4
1 1 1 1
2 2 2 2
1 1 1 1
1 1 1 1
1 1 1 1
- - 1 -
1 1 1 1
