mycom 2016 C Series Instruction Manual page 110

b) In a normal state where the capacity control oil pressure pipe is not opened, move the unloader
piston by using a manual capacity control circuit. When the control power is turned on, keep the
indicator cover attached to avoid electrical shock. After the position of the piston is determined, turn
off the control power and conduct lockout/tagout. After that, remove the indicator cover and fix the
indicator needle.

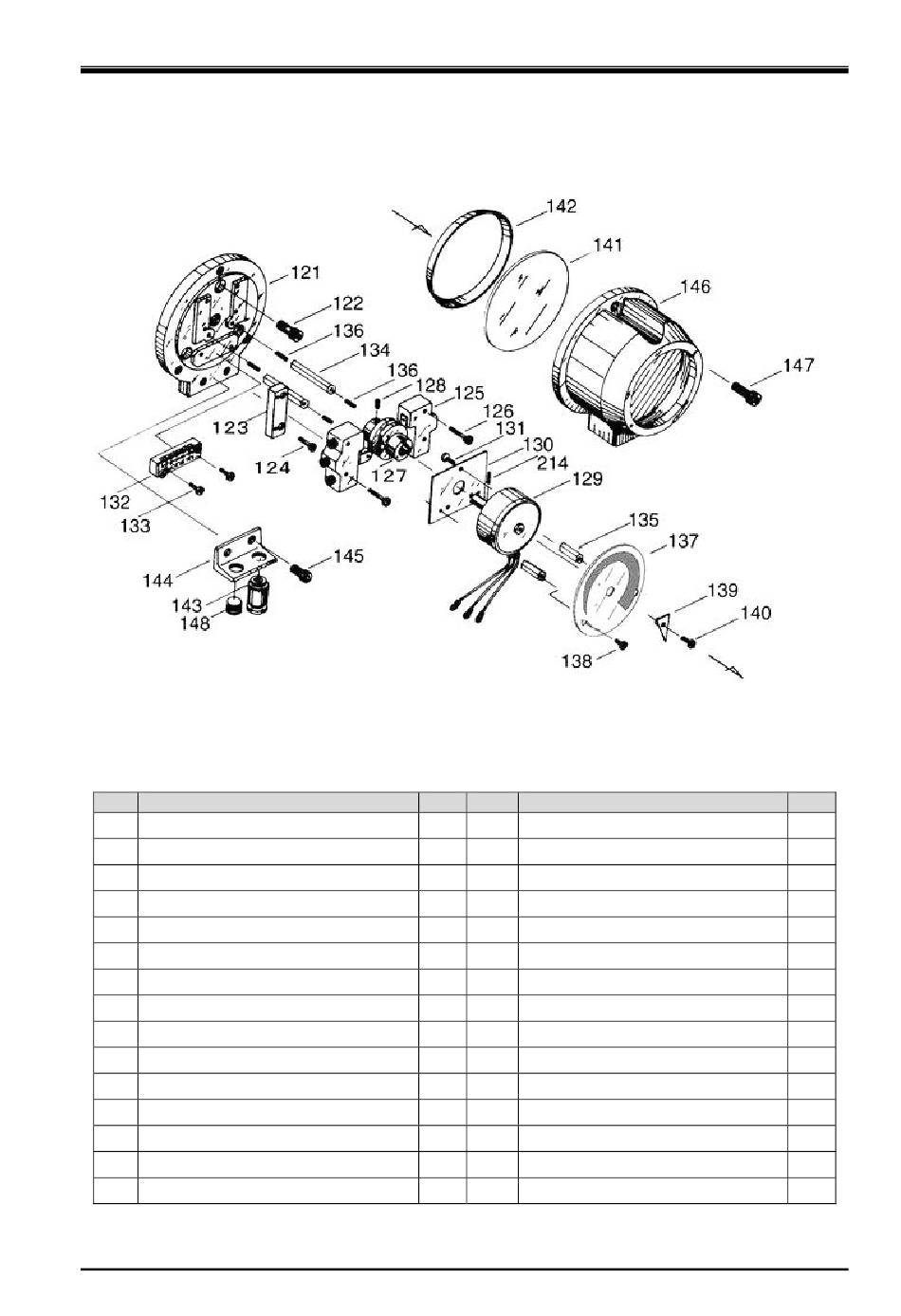

Figure 5-16 Development View of the 2016**C Standard-type High-stage Indicator
Table 5-12 Unloader Indicator Components (Standard type)
No. Part name
121 Micro-switch base plate
122 Hexagon socket head cap screw
123 Micro-switch set plate
124 Philips screw
125 Micro-switch
126 Philips screw
127 Micro-switch cam
128 Set screw
129 Potentiometer
130 Potentiometer set- plate
131 Philips screw
132 Terminal block
133 Philips screw
134 Potentiometer support arm [1]
135 Potentiometer support arm [2]
Compound 2-stage Screw Compressor 2016**C
Qty. No.
1 136 Potentiometer mounting screw
3 137 Indicator dial
1 138 Indicator dial screw
2 Indicator needle
139
2 140 Indicator needle screw
4 Indicator glass
141
1 142 Indicator glass spacer
1 Electric wiring connector
143
1 144 Connector support
1 145 Hexagon socket head cap screw
3 146 Indicator cover (2)
1 147 Hexagon socket head cap screw
2 148 Plug
2 214 Spring pin
2 265-2 Spring washer
5-65
