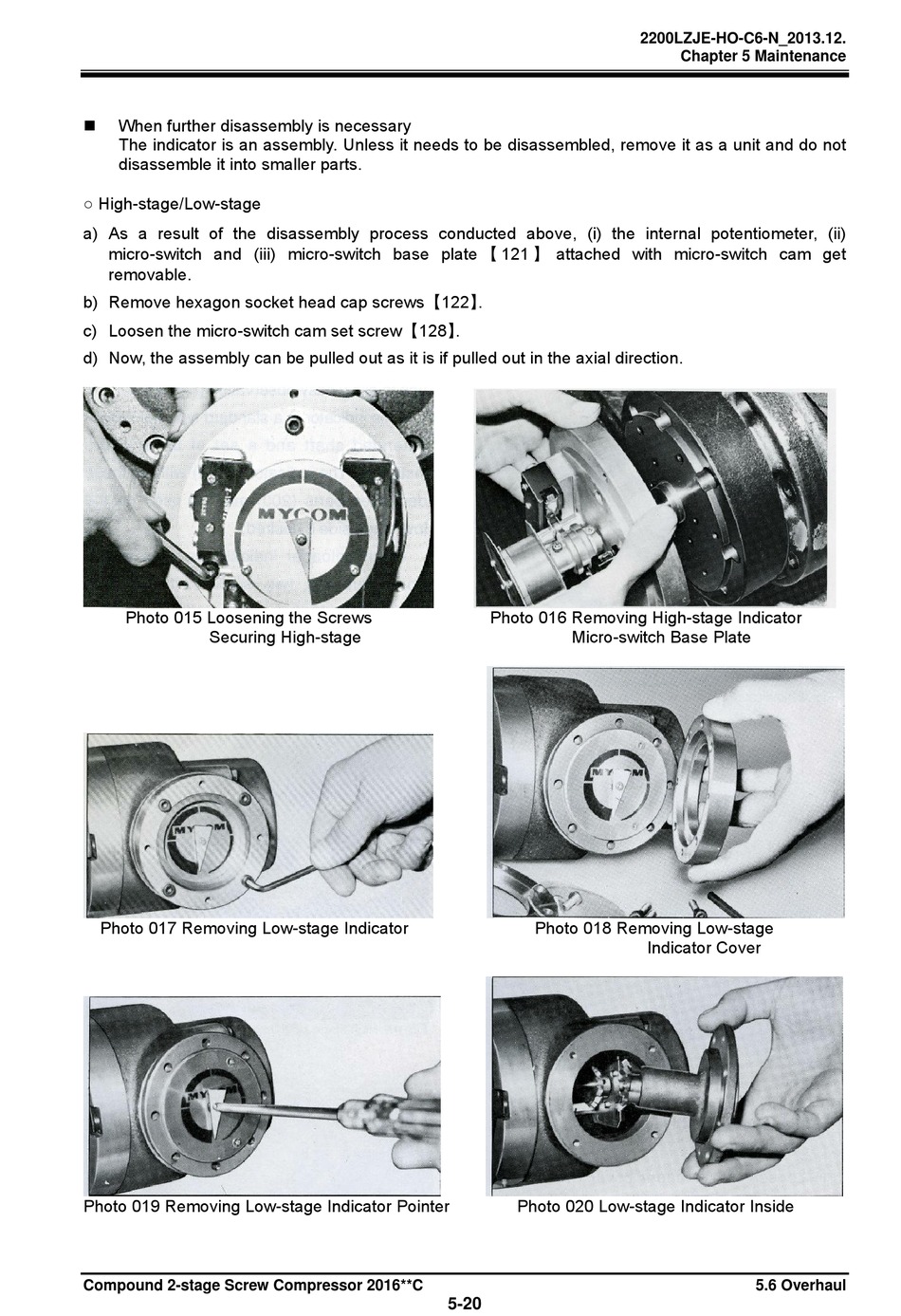

 When further disassembly is necessary
The indicator is an assembly. Unless it needs to be disassembled, remove it as a unit and do not
disassemble it into smaller parts.
○ High-stage/Low-stage
a) As a result of the disassembly process conducted above, (i) the internal potentiometer, (ii)
micro-switch and (iii) micro-switch base plate 【 121 】 attached with micro-switch cam get
removable.
b) Remove hexagon socket head cap screws 【122】.
c) Loosen the micro-switch cam set screw 【128】.
d) Now, the assembly can be pulled out as it is if pulled out in the axial direction.
Photo 015 Loosening the Screws
Securing High-stage
Photo 017 Removing Low-stage Indicator
Photo 019 Removing Low-stage Indicator Pointer
Compound 2-stage Screw Compressor 2016**C
Photo 016 Removing High-stage Indicator
Micro-switch Base Plate
Photo 018 Removing Low-stage
Photo 020 Low-stage Indicator Inside
5-20
2200LZJE-HO-C6-N_2013.12.
Chapter 5 Maintenance
Indicator Cover
5.6 Overhaul
