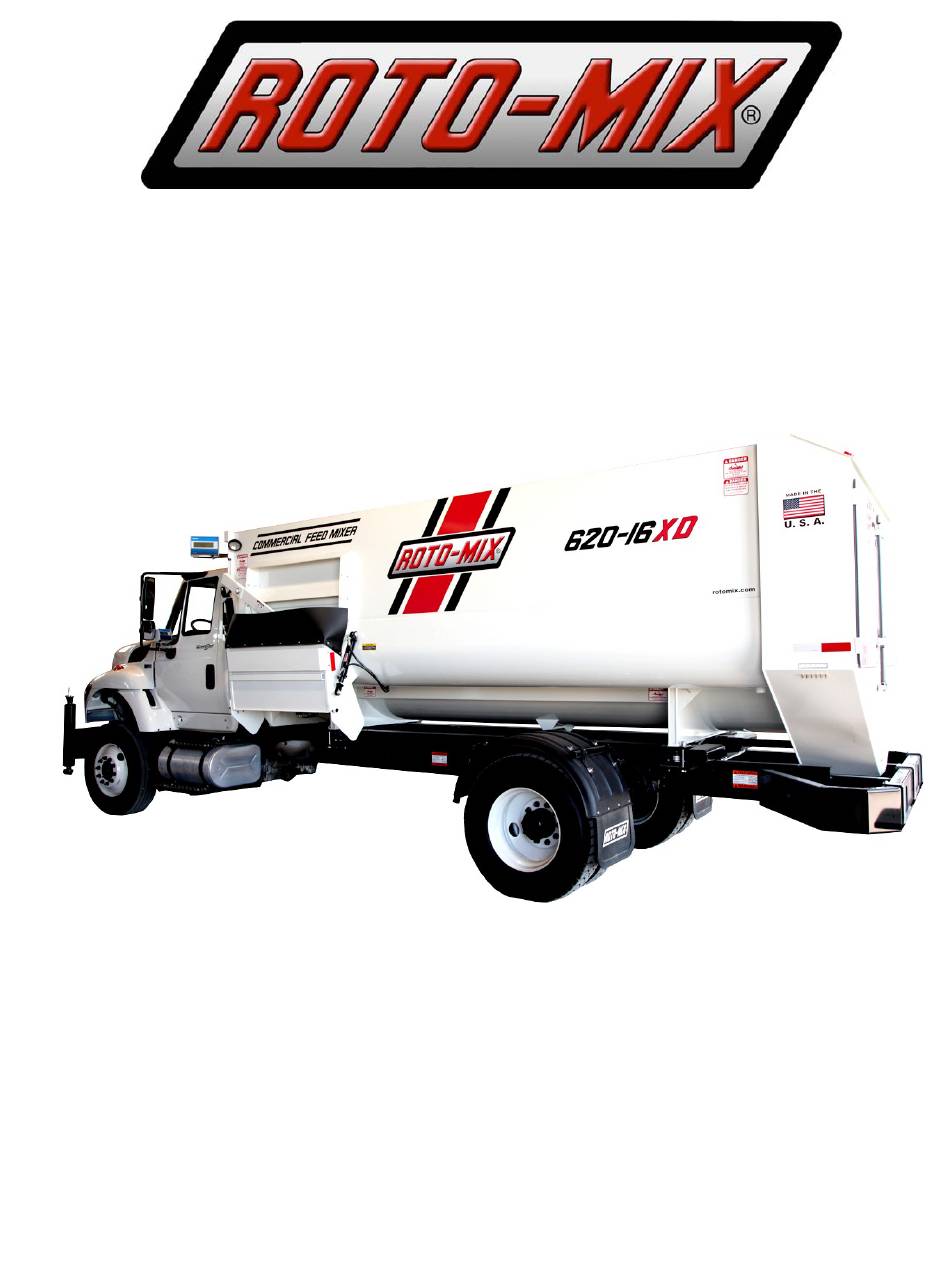

620-16XD FEED MIXER
OPERATION AND
PARTS MANUAL
ROTO-MIX LLC
P.O. BOX 1724
2205 E. Wyatt Earp Blvd.
Dodge City, Kansas 67801
(620) 225-1142
©ROTO-MIX 2006
SERIAL NUMBER_________________
441910 07/2020
Printed in U.S.A.
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 620-16XD and is the answer not in the manual?

Questions and answers

Related Manuals for Roto-Mix 620-16XD

Summary of Contents for Roto-Mix 620-16XD

  • Page 1 620-16XD FEED MIXER OPERATION AND PARTS MANUAL ROTO-MIX LLC P.O. BOX 1724 2205 E. Wyatt Earp Blvd. Dodge City, Kansas 67801 (620) 225-1142 ©ROTO-MIX 2006 SERIAL NUMBER_________________ 441910 07/2020 Printed in U.S.A. Page 1...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS PAGE NO. WARRANTY ........................3 SCALES WARRANTY & SERVICE POLICY ..............4 OPERATOR QUALIFICATIONS ................... 5 SAFETY ........................6-15 OPERATION ......................16-19 MAINTANCE ......................19-21 LOADING & UNLOADING ..................21-23 LUBRICATION ......................24-25 SPECIFICATIONS ......................26 PTO CHART ......................... 27 DIMENSIONS ......................

  • Page 3: Warranty

    ROTO-MIX and that it be returned to ROTO-MIX within 10 days of purchase and be re- corded in ROTO-MIX’s owner file for this warranty to be valid. In the event an owner’s card is not on file at the ROTO-MIX office, the warranty period will extend only from date equipment was picked up or shipped from the ROTO-MIX plant.

  • Page 4: Scales Warranty & Service Policy

    - ROTO-MIX is not responsible and will not be liable for damage caused to persons or property, commercial loss, loss of time or production, loss of use by reason of the installation or use of ROTO-MIX products or their mechanical failure.

  • Page 5: Operator Qualifications

    OPERATOR QUALIFICATIONS Operation Of this mixer/feeder shall be limited to competent and experienced persons. In addition, anyone who will operate or work around a mixer/feeder must use good common sense. In order to be qualified, he or she must also know and meet all other qualifications, such as: 1.

  • Page 6: Safety

    If you have questions not answered in this manual or require additional copies or the man- ual is damaged, please contact your dealer or ROTO-MIX, 2205 E. Wyatt Earp, Dodge City, Kansas, 67801. (Telephone) 620-225-1142 (Fax) 620-225-6370 Page 6...
  • Page 7 SAFETY FIRST REMEMBER: The careful operator is the best operator. Most accidents are caused by human error. Certain precautions must be observed to prevent the possibility of injury or death. DO NOT ALLOW PERSONNEL OTHER THAN THE QUALIFIED OPERATOR NEAR THE MACHINE. NEVER START MACHINE UNTIL ALL GUARDS AND SAFETY SHIELDS ARE IN PLACE.
  • Page 8 SAFETY READ BEFORE YOU FEED EQUIPMENT SAFETY GUIDELINES Safety of the operator is one of the main concerns in designing and developing a new piece of equipment. Designers and manufactures build in as many safety features as possible. However, every year many accidents occur which could have been avoided by a few seconds of thought and a more careful approach to handling equipment.
  • Page 9 SAFETY READ BEFORE YOU FEED KEEP ALL SHIELDS IN PLACE Do not operate mixer/feeder without safety shields in place. Rotating parts can crush or dismember causing personal in- jury or death. Disconnect PTO driveline before removing shields for adjust- ment or service. OPERATE MIXER/FEEDER SAFELY Rotating parts can entangle or strike people, resulting in personal injury or death.
  • Page 10 SAFETY READ BEFORE YOU FEED STAY CLEAR OF ROTATING DRIVELINES Entanglement in rotating driveline can cause serious injury or death. Keep tractor master shield and driveline shields in place at all times. Make sure rotating shields turn freely. Wear close fitting clothing. Stop the engine and be sure PTO driveline is stopped before making adjustments, connections, or cleaning out PTO driven equipment .
  • Page 11 SAFETY READ BEFORE YOU FEED PREPARING TRACTOR FOR TRAILER MIXER POSITIONING DRAWBAR IMPORTANT: Drive components can be damaged from excessive speed. Under no circumstances should a feed mixer equipped with 540 RPM be operated by a tractor with 1000 RPM PTO. Feed mixers are available with either 540 or 1000 RPM driveline.
  • Page 12 SAFETY SIGNS (B) #440819 (A) #440035 (C) #440818 (D) #440826 Page 12...
  • Page 13 SAFETY SIGNS (A) #440034 (B) #440826 Page 13...
  • Page 14 SAFETY SIGNS BACK OF MIXER (C) #440801 (B) #440819 (A) #440822 FRONT OF MIXER Page 14...
  • Page 15 Replace safety decals and signs that are missing or have become illegible. Replaced parts that displayed a safety sign should also display the current sign. Safety decals or signs are available from your dealer or the ROTO-MIX manu- facturing plant.
  • Page 16 Your best assurance against accidents is a careful and responsible opera- tor. If there is any portion of this manual or function you do not under- stand, contact your dealer or the ROTO-MIX plant. BEFORE OPERATION: Carefully study and understand this manual.
  • Page 17 SAFETY READ BEFORE YOU FEED DURING OPERATION: Beware of bystanders, particularly children! Always look around to make sure that it is safe to start the engine of the towing vehicle or move the unit. This is particularly important with higher noise levels and quiet cabs, as you may not hear people shouting.
  • Page 18 SAFETY READ BEFORE YOU FEED DURING OPERATION (CONT.) Never leave running mixer/feeder unattended. As a precaution, always recheck the hardware on mixer/feeder following every 100 hours of operation. Correct all problems. Follow the maintenance safety procedures. FOLLOWING OPERATION: Following operation, or when unhitching, stop the tractor or towing vehicle, set the brakes, disengage the PTO and all power drives, shut off the engine and remove the ignition keys.

  • Page 19: Maintance

    SAFETY READ BEFORE YOU FEED HIGHWAY AND TRANSPORT OPERATIONS (CONT.): Comply with state and local laws governing highway safety and movement of farm machinery on public roads. Use approved accessory lighting flags and necessary warning devices to protect operators of other vehicles on the highway during daylight and nighttime transport.
  • Page 20 If equipment has been altered in any way from original design, ROTO-MIX does not accept any liability for injury or warranty. A fire extinguisher and first aid kit should be kept readily accessible while performing maintenance on this mixer/feeder.

  • Page 21: Loading & Unloading

    READ THE FOLLOWING BEFORE WELDING ON THIS MIXER/FEEDER When welding on your mixer/feeder, do not allow the current to flow through the ball bearings or the roller chains. Ground directly to the item being welded. Always disconnect the scale instrumentation from the weigh bars or load cells and the power source.

  • Page 22: Operation

    THE ROTO-HAY PROCESSOR MUST BE PROPERLY USED ALWAYS USE DRY HAY Drain rain water out of mixer before use. 1” of rain in a 620-16XD equals (78 gal) 650 lbs. of water which will increase the moisture in 1000 lbs. of dry hay (12%) to 46% moisture or 500 lbs.
  • Page 23 LOADING INSTRUCTIONS FOR HAY PROCESSOR Load all commodities except liquids on the discharge (auger) side with the hay pan in the raised position. The raised hay pan does not affect the mixing action 1. If molasses and/or liquid protein is used, load on the rotor side of the mixer first with the mixer not running.

  • Page 24: Lubrication

    ADJUST TRAILER HITCH CLEVIS Mixer should be approximately level when attached to tractor. Adjust clevis by changing hole location on tongue. Hitch Pin Size — 1” x 7” LUBRICATION DISENGAGE PTO & SHUT OFF POWER BEFORE LUBRICATING THE MACHINE. LOOSE OR FLOPPY CLOTHING SHOULD NOT BE WORN BY THE OPERATOR. OIL BATH: Fill the oil bath with 30 weight motor oil to sight plug level.
  • Page 25 This Page intentionally left blank. Page 25...

  • Page 26: Specifications

    620-16XD SPECIFICATIONS Capacity (Cu. ft.) ..........620 Struck level capacity (Cu. ft.) ......680 Top Auger Bearing (Front) ......2-7/16” 4-Bolt Top Auger Bearing (Rear) ......4” 4-Bolt Bottom Auger Bearing (Front) ......2-716” 4-Bolt Bottom Auger Bearing (Rear) ......4” 4-Bolt Rotor Bearing (Front) ........

  • Page 27: Pto Chart

    PTO CHART 620XD-16 GEARBOX INPUT JACKSHAFT (% ENGINE SPEED) RATIO SPROCKET SPROCKET DIESEL (80-85) AUTOMATIC 250 ft./lb. min. 2:1 Gearbox 17 Tooth 17 Tooth TRANS Engine rotation 48 Tooth (For other engine or transmission applications, consult factory.) 1000 PTO TRACTOR DRIVE 17 Tooth 17 Tooth (STANDARD)

  • Page 28: Dimensions

    ADD 3 1/2” TO HEIGHT IF CROSS P R O S E S S O R OVER BARS ARE INSTALLED. 54 3/4" APPROXIMATE WEIGHT 620-16XD ON TRUCK ..15,280 lb W/HAY PROCESSOR ..16,250 lb 14” 24” 1 1 7 "...
  • Page 29 OPTIONAL HAY PROSESSOR 4 1/4" APPROXIMATE WEIGHT 54 3/4" 3" LESS MOTOR 620-16XD STATIONARY .. 15,000 lb W/HAY PROCESSOR ..15,970 lb 61 3/4" 85 1/4" NOTE: ADD 3 1/2” TO HEIGHT IF CROSS OVER BARS ARE INSTALLED. 3 3/4"...
  • Page 30 P R O S E S S O R ADD 3 1/2” TO HEIGHT IF CROSS OVER BARS ARE INSTALLED. 5 4 3 /4 " APPROXIMATE WEIGHT 620-16XD ON TRAILER ... 16,700 lb W/HAY PROCESSOR ..17,670 lb 1 1 1 " 24” SPOUT SPOUT 4 5 1 /4 "...
  • Page 31 36” 50” 48” 62” 60” 620-16XD TRAILER MOUNTING DIMENSIONS 1 1/2" 4 8" A U G E R S ID E O F P E D E S T A L All Dimensions & Specifications are Approximate and Subject to Change Without Notice.
  • Page 32 How to read a Roto-Mix Serial Number 4 1 01 5 0157 Manufactured Location Year Manufactured Month Manufactured Consecutive Numbering Page 32...

  • Page 33: Repair Parts Content Page

    5-ARM ROTOR ASSEMBLY ....................50 6- ARM ROTOR ASSEMBLY ....................51 TOP AUGER ........................52-55 BOTTOM AUGER ......................56-57 620-16XD DRIVE ASSEMBLY ................... 58-63 620-16 DRIVE ASSEMBLY ....................64-65 STATIONARY ELECTRIC DRIVE ..................66-67 GEARBOX ASSEMBLY ..................... 68-69 TRUCK DRIVELINE ASSEMBLY ..................70-71 TRAILER DRIVELINE ASSEMBLY (540 RPM) ..............

  • Page 34: Wiring Schematic For Straight Door

    620-16XD WIRING SCHEMATIC DISCHARGE DOOR YELLOW WIRE RED WIRE JOYSTICK ASSY - PAGE 34 GREEN WIRE TO 12 VOLT BROWN WIRE RED WIRE RED WIRE YELLOW WIRE GREEN WIRE BROWN WIRE REF # PART # DESCRIPTION QTY. 780080 PUSH BUTTON SWITCH PANEL ASSY (See page 35)

  • Page 35: Push Button Switch Panel Assembly

    620-16XD PUSH BUTTON SWITCH PANEL REF # PART # DESCRIPTION QTY. 183392 SWITCH PANEL 357702 PUSH BUTTON SWITCH 781055 TRUCK TO MIXER WIRE ASSEMBLY 781056 SWITCH WIRE ASSEMBLY Page 35...

  • Page 36: Joystick Assembly

    620-16XD JOYSTICK ASSEMBLY TOP SIDE BOTTOM SIDE TO 12 VOLT GREEN WIRE RED WIRE RED WIRE YELLOW WIRE YELLOW WIRE BROWN WIRE BROWN WIRE REF # PART # DESCRIPTION QTY. 185575 JOYSTICK BRACKET 357705 JOYSTICK SWITCH 781056 SWITCH WIRE ASSEMBLY...

  • Page 37: Control Panel Assembly

    620-16XD CONTROL PANEL ASSEMBLY ITEM # PART # DESCRIPTION QTY. 190928 TRUCK SWITCH PANEL 357705 JOYSTICK, (4-WAY) SCHNEIDER 9001K35 357753 RED LIGHT INDICATOR 3/4" DIA. 440835 DECAL, 4-WAY JOYSTICK (HORIZONTAL) 452744 SWITCH, ROCKER ON-OFF, (SPST), 44301 Page 37...

  • Page 38: Double Hydraulic Valve Assy 12V

    620-16XD DOUBLE HYDRAULIC VALVE #780123 OUTLET INLET BUILT IN PRESSURE RELIEF PRESET TO 1500 PSI ITEM # PART # DESCRIPTION QTY. 362209 HYD VALVE 12V DOUBLE, BUCHER 368024 HYD SWIVEL 9/16"MOR x 3/8"FPS 45º 368115 STRAIGHT ADAPTER 9/16 MOR x 3/8 FPS...
  • Page 39 This Page intentionally left blank. Page 39...

  • Page 40: Oil Reservoir

    620-16XD HYDRAULIC PUMP REF # PART # DESCRIPTION QTY. 182766 HYDRAULIC PUMP BRACKET 324040 1B x 4.0” SH BELT SHEAVE 336008 SH BUSHING 1/2” BORE 362017 HYDRAULIC PUMP 368040 3/8” FP x 3/4” MOR 90o SWIVEL 368050 3/4” FP x 7/8” MOR 90o SWIVEL 368512 3/4”...
  • Page 41 620-16XD OIL RESERVOIR ITEM # PART # DESCRIPTION 362403 FILTER HEAD 3/4", ZAF-07-25-0 362440 FILTER ELEMENT - AE-10 362504 SUCTION SCREEN 362550 FILLER CAP ASSY. FLOE EZY - AB1000-3 368512 PUSH LOCK HOSE BARB (3/4)x 3/4" MP 368612 STEEL BUSHING 3/4"MP x 3/8"FP 870477 OIL RESERVOIR W.A.

  • Page 42: Hydraulic Schematic Straight Door

    620-16XD HYDRAULIC SCHEMATIC TRUCK DISCHARGE DOOR NOTE (D) NOTE (C) NOTE (A) NOTE (B) NOTE A: CONNECT TO SPOUT CYLINDER BASE NOTE B: CONNECT TO SPOUT CYLINDER ROD END NOTE C: CONNECT TO DOOR CYLINDER BASE NOTE D: CONNECT TO DOOR CYLINDER ROD END...

  • Page 43: Stationary Hydraulic Schematic

    620-16XD HYDRAULIC SCHEMATIC STATIONARY DISCHARGE DOOR DISCHARGE DOOR CYLINDER ITEM # PART # DESCRIPTION QTY. 189088 SUCTION HOSE 3/4" x 94" 189250 ELECTRIC SOLONOID BRACKET - 5 1/2" x 14" 324046 BELT SHEAVE 1B x 4.6 336009 BUSHING, SDS 1/2" QD...
  • Page 44 620-16XD SPOUT ASSEMBLY 16 34 26 27 5 19 24 29 19 24 29 22 25 32 Page 44...
  • Page 45 620-16XD SPOUT ASSEMBLY ITEM # PART # DESCRIPTION QTY. 183145 SPOUT RUBBER 16" x 64" 183152 SPOUT BACKUP ANGLE, 47" 183160 SPOUT RUBBER SIDE BAR x 8" 189079 SPOUT MAGNET GUARD, 24" XD 190865 SPOUT MAGNET GUARD, 14" XD 190758...

  • Page 46: 620-16 Spout Assembly

    620-16 SPOUT ASSEMBLY REF # PART # DESCRIPTION QTY. 182238 SPOUT HINGE SHAFT 183145 SPOUT RUBBER 183152 BACK-UP ANGLE 47” 183160 BACK-UP STRAP 185896 SPOUT CYLINDER BAR 187091 SPOUT HINGE LEFT HAND SIDE 189079 SPOUT MAGNET GUARD (Used on 24" Spout) 190865 SPOUT MAGNET GUARD (Used on 14"...

  • Page 47: Discharge Door Assembly

    620-16 & 620-16XD DISCHARGE DOOR ASSEMBLY 11 7 5 ITEM # PART # DESCRIPTION QTY. 184259 DOOR CYL MARKER PLATE 10" 184267 CLAMP, DOOR CYLINDER MARKER 3" 364055 HYDRAULIC CYLINDER ASSY 2" x 8" 368007 HYDRAULIC ADAPTER 3/8"MP x 3/8"FPX 90º .109 orifice 400208 HEX NUT 1/2"-13 #5 PLTD...

  • Page 48: Staggered Rotor Assembly

    HEX CROWN LOCNUT 5/8"-11 #9 PLTD 402806 FLAT WASHER 3/8" #9 BOWMALLOY 406906 HHCS 3/8"-16 x 1-1/4" #9 BOWMALLOY 407130 CHCS 5/8"-11 x 2" #8 PLTD 872998 620-16XD STGRD ROTOR - 9-3/4" NYLATRON BRG 873132 620-16 STAG ROTOR WA GEN 2 (HEAVY TUBE) Page 48...

  • Page 49: 3-Arm Rotor Assembly

    HHCS 3/4"-10 x 6" #8 PLTD 410005 SPRING, COMPRESSION, 2 1/2" x 24" x .41" 850007 ROTOR SPRING COVER WA 872361 ROTOR SQUARE WIPER WA 872643 620-16 3-ARM ROTOR WA 873188 620-16XD 3-ARM ROTOR WA - Nylatron Bearing Page 49...

  • Page 50: 5-Arm Rotor Assembly

    SPRING, COMPRESSION, 2 1/2" x 24" x .41" 850007 ROTOR SPRING COVER WA 872361 ROTOR SQUARE WIPER WA 872634 620-16 5-ARM ROTOR WA 873139 620-16XD 5-ARM ROTOR WA - Nylatron Bearing 873139RH 620-16XD 5-ARM ROTOR WA - Nylatron BRG, RIGHT HAND Page 50...

  • Page 51: 6- Arm Rotor Assembly

    HHCS 3/4"-10 x 6" #8 PLTD 410005 SPRING, COMPRESSION, 2 1/2" x 24" x .41" 850007 ROTOR SPRING COVER WA 872361 ROTOR SQUARE WIPER WA 872641 620-16 6-ARM ROTOR WA 873189 620-16XD 6-ARM ROTOR WA - Nylatron Bearing Page 51...
  • Page 52 620-16XD TOP AUGER #872367 - 620/720 TOP AUGER WA ITEM # PART # DESCRIPTION QTY. 872367 620/720 TOP AUGER WA 185708 24" TOP AUGER PADDLE - 6" x 9 5/8" 382424 FLIGHT 24"OD x 6 5/8"ID x 3/8" RH 2/3 PITCH 400912 HEX CROWN LOCK NUT 3/4"-10 #5 PLTD...
  • Page 53 620-16XD TOP AUGER #872736 - 620/720 HEAVY DUTY TOP AUGER WA ITEM # PART # DESCRIPTION QTY. 872736 620/720 HEAVY DUTY TOP AUGER WA 185708 24" TOP AUGER PADDLE - 6" x 9 5/8" 382430 FLIGHT 24"OD x 6-5/8"ID x 1/2" RH 2/3 PITCH...
  • Page 54 620-16XD TOP AUGER #872691 - 620/720 TOP AUGER WA WITH KNIFE HOLES ITEM # PART # DESCRIPTION QTY. 872691 620/720 TOP AUGER WA with KNIFE HOLES 185708 24" TOP AUGER PADDLE - 6" x 9 5/8" 382428 FLIGHT 24"OD x 6-5/8"ID x 3/8" RH 16" PITCH...
  • Page 55 620-16XD TOP AUGER #872627 - 620/720 DOUBLE FLIGHT TOP AUGER WA ITEM # PART # DESCRIPTION QTY. 872627 620/720 DOUBLE SLIGHT TOP AUGER WA 185708 24" TOP AUGER PADDLE - 6" x 9 5/8" 382045 FLIGHT 20"OD x 6 5/8"ID x 1/4" x 16"P RH 382428 FLIGHT 24"OD x 6-5/8"ID x 3/8"...
  • Page 56 620-16XD BOTTOM AUGERS #872728 - 620-16 BOTTOM AUGER WA ITEM # PART # DESCRIPTION QTY. 872728 620 BOTTOM AUGER WA, 3/4" & 1/2" 382427 24" OD x 8 5/8" ID x 1/2" LH FULL PITCH 382454 24" OD x 8-5/8" ID x 3/4" RH FULL PITCH 382455 24"...
  • Page 57 620-16XD BOTTOM AUGERS #872720 - 620-16 EXTRA DUTY BOTTOM AUGER WA ITEM # PART # DESCRIPTION QTY. 872720 620-16 LEFT HAND EXTRA DUTY BOTTOM AUGER WA 189269 24" AUGER KICKER 4-7/16" x 9-7/16" 382435 24" OD x 8 5/8" ID x 5/8" LH FULL PITCH 382454 24"...

  • Page 58: Top Auger

    620-16XD DRIVE ASSEMBLY CHAINS & TIGHTENERS 5 13 17 AUGER ROTOR BOTTOM AUGER TOP AUGER BOTTOM AUGER AUGER IDLER SHAFT BOTTOM INPUT AUGER SHAFT 4 7 15 18 IDLER SHAFT Page 58...
  • Page 59 620-16XD DRIVE ASSEMBLY CHAINS & TIGHTENERS ITEM # PART # DESCRIPTION QTY. 185290 SPRING PULL BAR 185488 CHAIN-2/0 PASSING LINK 185652 IDLER BLOCK 6" OD, 120-140 187157 5/8" PULL TAB 190836 FORMED IDLER ANGLE 190889 IDLER BLOCK 6" OD, #80-100 190890 IDLER BLOCK 6"...
  • Page 60 620-16XD DRIVE ASSEMBLY USED ON SERIAL #'s 410729151 THRU 411029266 JACKSHAFT 24 31 37 12 15 49 48 TOP AUGER DRIVE ASSEMBLY WITHOUT ROTOR SHOWN TOP AUGER 24 31 37 26 33 41 BOTTOM AUGER BOTTOM AUGER JACKSHAFT INPUT SHAFT...
  • Page 61 620-16XD DRIVE ASSEMBLY USED ON SERIAL #'s 410729151 THRU 411029266 ITEM # PART # DESCRIPTION 185270 ROTOR BEARING PLATE 185313 SHAFT SPACER, 4" x 3/4" 185320 SHAFT SPROCKET SPACER - 1/4" x 4" 185329 SPROCKET WASHER 3 1/2" SHAFT x 4 1/2"...
  • Page 62 620-16XD DRIVE ASSEMBLY SERIAL #'s 411129270 THRU CURRENT TOP AUGER DRIVE ASSEMBLY 25 15 14 Rotor not shown Top Auger Detail 49 32 42 35 28 Jackshaft Detail 7 46 BOTTOM AUGER Bottom Auger Detail JACKSHAFT INPUT SHAFT 19 20...
  • Page 63 620-16XD DRIVE ASSEMBLY SERIAL #'s 411129270 THRU CURRENT ITEM # PART # DESCRIPTION QTY. 150514 KEY, 1/2" x 5/8" x 2" 185270 ROTOR BEARING PLATE 185329 SPROCKET WASHER 3 1/2" SHAFT x 4 1/2" 185710 INPUT SHAFT, 620 189633 BOTTOM AUGER BEARING PLATE 620 189665 SPROCKET, 120A24H 5.515"...

  • Page 64: 620-16 Drive Assembly

    620-16 DRIVE ASSEMBLY Page 64...
  • Page 65 620-16 DRIVE ASSEMBLY Page 65...

  • Page 66: Stationary Electric Drive

    620-16XD STATIONARY ELECTRIC DRIVE 1 27 27 27 27 6 30 30 26 35 Optional parts that are only used when the 110VAC HYD POWER UNIT (#750129 below) is not used. Page 66...
  • Page 67 620-16XD STATIONARY ELECTRIC DRIVE ITEM # PART # DESCRIPTION QTY. 185115 ADJUSTING ALL THREAD, 3/4"-10 x 10" 185480 KEY 3/8" SQ. X 2" 185484 KEY 5/16" SQ. X 2" 185485 KEY, 1/2 x 1/2 x 2-1/2 LG. 185488 CHAIN-2/0 PASSING LINK 185948 620 MOTOR PIVOT TUBE 31-1/2"...

  • Page 68: Gearbox Assembly

    620-16XD 2:1 GEARBOX ASSEMBLY (WEASLER) #344040 REF # PART # DESCRIPTION QTY. 344244 END CAP, OPEN, HIGH SPEED SHAFT 344245 END CAP, CLOSED, HIGH SPEED SHAFT 344246 END CAP, CLOSED, LOW SPEED SHAFT 344247 END CAP, OPEN, LOW SPEED SHAFT...
  • Page 69 620-16XD 2:1 GEARBOX (HUB CITY) #344022 SECTION A-A ITEM # PART # DESCRIPTION 310710 PIPE BUSHING, 1/2" x 1/8" GALV 310718 BREATHER PLUG, 1/8" PIPE 310798 PIPE PLUG, 1/2" INTERNAL HEX 344209 GEARBOX SEAL 1-3/4" CR 18039 344210 BEARING CONE 1-13/16" ID 18690 344211 BEARING CUP 3-1/8"...

  • Page 70: Truck Driveline Assembly

    620-16XD TRUCK DRIVELINE ASSEMBLY ITEM # PART # DESCRIPTION QTY. 191974 GEAR BOX PLATE 183319 TRUCK JACKSHAFT BRACKET 185504 JACKSHAFT, 700 TRK, 1-3/8" x 48" 190487 700 INPUT SHAFT 2-7/16" x 50-3/4" 338048 TRUCK DRIVE SHAFT 340222 BEARING, 1 3/8" VCJT 340232 BEARING, 2", 2 BOLT FLANGE, VCJT...
  • Page 71 620-16XD/720-16 TRUCK DRIVELINES #780488 ITEM # PART # DESCRIPTION QTY. 338054 DRIVE SHAFT ASSY 338413 U-STRAP & BOLT KIT 1350 338423 YOKE 1-1/4" RD BORE, 5/16" KWY 338424 YOKE 1-3/8" RD BORE, 5/16" KWY 338436 CROSS KIT, SPICER 1350 5-178X...

  • Page 72: Trailer Driveline Assembly (540 Rpm)

    620-16XD TRAILER DRIVELINE ASSEMBLY (540 RPM) ITEM # PART # DESCRIPTION 183277 BEARING HANGER 185299 CARRIER BEARING ANGLE 185302 PTO SHIELD 185485 KEY, 1/2" SQUARE 185710 INPUT SHAFT, 620 185771 600 TRAILER DRIVELINE - 540 RPM, 160" 320818 COUPLER CHAIN #80-2 RC x 18 COMPLETE...
  • Page 73 TRACTOR TO TRAILER DRIVESHAFT (540 RPM) - #338050 1 3/8" 2" ITEM # PART # DESCRIPTION QTY. 338446 CROSS KIT W2500 312209 338453 INBOARD YOKE W2500 S4 097133 338454 INBOARD YOKE S5, W2500 097140 338459 YOKE, 2" RND BORE, 1/2" KEYWAY, W2500 338465 INNER PROFILE S4, W-2400 338466...

  • Page 74: Trailer Driveline Assembly (1,000 Rpm)

    620-16XD TRAILER DRIVELINE ASSEMBLY (1000 RPM) ITEM # PART # DESCRIPTION 183277 BEARING HANGER 185299 CARRIER BEARING ANGLE 185302 PTO SHIELD 185480 3/8" SQ. X 2" KEY 185485 KEY, 1/2" SQUARE 185710 INPUT SHAFT, 620 185733 600 TRAILER DRIVELINE 1-3/4"...
  • Page 75 TRACTOR TO TRAILER DRIVESHAFT (1000 RPM) - #338058 1 3/8"-21 SPLINE 1 3/4" ITEM # PART # DESCRIPTION QTY. 338442 SLIDE YOKE 1000 RPM, W2400 338443 CROSS KIT, W2400 338450 INBOARD YOKE W2400 S4 356905 338473 ROLL DRIVE PIN #10MM x 80MM 338473 ROLL DRIVE PIN W LTSH 10MM x 90MM 338475...

  • Page 76: Front End Bearing Assembly

    620-16XD FRONT END BEARING ASSEMBLY USED ON 620-16 USED ON 620-16XD ITEM # PART # DESCRIPTION QTY. 185258 ROTOR PLATE INDICATOR, 15/16" OD 185316 SHAFT SPACER, 1/4" x 3-1/16" ID 185889 SHAFT SPACER, 2-1/8" x 3-1/16" ID 192424 SHAFT SPACER, 1-11/16" x 3-1/2" ID 191969 SHAFT SPACER, 5/8"...

  • Page 77: Truck Load Cell Scale Frame Assembly

    620-16XD TRUCK LOAD CELL ASSEMBLY 8 11 ITEM # PART # DESCRIPTION QTY. 182881 SCALE MOUNT MIXER PLATE 182915 LOAD CELL CAGE PLATE 185997 SCALE PAD 192175 LOAD CELL SPPRT PLT, CRG HEAD 400116 HEX NUT, 3/4"-10 SERRATED FLANGE #5 PLTD 400210 HEX NUT 5/8"-11 #5 PLTD...

  • Page 78: Truck Weigh Bar Scale Frame Assembly

    620-16XD TRUCK WEIGH BAR SCALE FRAME ASSEMBLY REF # PART # DESCRIPTION QTY. 872409 620-16XD TRUCK WEIGH BAR FRAME SCALE W.A. 182998 TRUCK FRAME BRACKET 185609 MIXER BAR MOUNT PAD 872159 WEIGH BAR MOUNT 2 1/2” Page 78...

  • Page 79: Scale Indicator Arm Assembly

    620-16XD SCALE INDICATOR ARM ASSEMBLY REF # PART # DESCRIPTION QTY. 184283 HOSE CARRIER 185490 TRAILER SCALE INDICATOR TUBE 185491 SCALE ARM HINGE PLATE 185492 LOCKING HANDLE 1/2” 185493 SCALE HINGE WASHER 412205 CABLE CLAMP 3/8” 850047 SCALE INDICATOR PLATE WELDMENT...

  • Page 80: Trailer Load Cell Scale Frame Assembly

    620-16XD TRAILER LOAD CELL SCALE KIT 7 12 9 13 ITEM # PART # DESCRIPTION QTY. 182881 SCALE MOUNT MIXER PLATE 182915 LOAD CELL CAGE PLATE 185997 SCALE PAD 190075 DIGI-STAR LOAD CELL SUPPORT PT 400210 HEX NUT 5/8"-11 #5 PLTD 400212 HEX NUT 3/4"-10 #5 PLTD...

  • Page 81: Trailer Weigh Bar Scale Frame Assembly

    620-16XD TRAILER WIEIGH BAR SCALE FRAME ASSEMBLY REF # PART # DESCRIPTION 189294 WEIGH BAR MIXER PAD 7” 872360 T-BAR W.A. 2 1/2” 860055 BAR BLOCK W.A. 2 1/2” 872239 620-16XD TRAILER FRAME Page 81...

  • Page 82: Stationary Load Cell Scale Frame Assembly

    620-16XD STATIONARY LOAD CELL SCALE FRAME ASSEMBLY 10 6 10 6 ITEM # PART # DESCRIPTION QTY. 182881 SCALE MOUNT MIXER PLATE 182915 LOAD CELL CAGE PLATE 185997 SCALE PAD 400210 HEX NUT 5/8"-11 #5 PLTD 400212 HEX NUT 3/4"-10 #5 PLTD 400912 HEX CROWN LOCK NUT 3/4"-10 #5 PLTD...

  • Page 83: Trailer Assembly

    620-16XD TRAILER ASSEMBLY ITEM # PART # DESCRIPTION QTY. 357400 BATTERY BOX W/STRAP 374100 CAT 3 BASE HITCH BODY (PPI-237VR) 374101 CAT 3 CLEVIS INSERT (PPI-208VR) 400114 HEX NUT, 1/2-13 SERRATED FLANGE #5 400212 HEX NUT 3/4"-10 #5 PLTD 400216 HEX NUT, 1"-8 #5 PLTD...

  • Page 84: Trailer Hub & Spindle Assembly

    SINGLE AXLE TRAILER HUB & SPINDLE ASM 20,000 LB #750113, ( GREASE LUBED BEARINGS) (Used After Serial #810991539) ITEM # PART # DESCRIPTION QTY. 310750 FPT GREASE ZERK PLTD 1/8 342223 CONE, 3.25 BORE TIM #47687 342224 RACE 5.25 OD TIM #47620 355058 SEAL - 3 7/8"...
  • Page 85 SINGLE AXLE TRAILER HUB & SPINDLE ASM 20,000LB. #750010-C (OIL LUBED BEARINGS) (Used prior to Serial #810991539) ITEM # PART # DESCRIPTION QTY. 184614 SPINDLE, 20,000# 342213 INNER BEARING 3.543" BORE 342214 OUTSIDE BEARING 2-5/8" OD 342215 INNER BEARING RACE 5.787"OD 342216 OUTSIDE BEARING RACE 4-13/16"...

  • Page 86: Oil Bath Door Assembly

    620-16XD OIL BATH DOOR ASSEMBLY 16 18 19 16 18 20 Page 86...
  • Page 87 620-16XD OIL BATH DOOR ASSEMBLY ITEM # PART # DESCRIPTION QTY. 185219 OIL BATH TOP DOOR 12" x 12" 189503 CAM ROD SPACER 190713 OB DOOR SUPPORT PLATE - WIDE 190776 INSPECTION HOLE COVER 351056 RUBBER BULB SEAL 5/32" 370316...

  • Page 88: Roto-Hay Processor Assembly

    620-16XD ROTO-HAY PROCESSOR ASSEMBLY REF # PART # DESCRIPTION QTY. 150198 BAFFLE PLUNGER 150223 KNIFE BACKUP PLATE 189127 HAY TUBE SLEEVE RETAINER 189128 CROSS BAR PLATE 189150 SIDE REINFORCEMENT BAR 385002 KNIFE SECTION - HARD SURFACED 872351 620 HAY PAN W.A.

  • Page 89: Roto-Hay Processor Assembly (Cable Option)

    620-16XD HAY PROCESSOR ASSEMBLY (CABLE OPTION) ITEM # PART # DESCRIPTION QTY. 150186 CABLE WINCH MNT PLT-6 150188 CABLE BAR - 4" 150189 SLEEVE - 13/16" 150279 HAY PAN CABLE 13FT 150288 PULLY BACK - UP PLATE - 4" 150391 SPRING PULL BAR - 4"...

  • Page 90: Roto-Hay Processor Assembly (Hydraulic Option)

    620-16XD HAY PROCESSOR ASSEMBLY (HYDRAULIC OPTION) QTY. ITEM # PART # DESCRIPTION 188226 FEEDER ELECTRIC CONTROL BRACKET 5 1/4" x 6" 357702 SWITCH, 12V-2 POLE PUSH BUTTON 362206 HYD VALVE 12V SINGLE, BUCHER 368030 HYD SWIVEL 9/16"MOR x 3/8"FPS 90º...

  • Page 91: Cross Over Bar & Hay Shear Bar

    620-16XD CROSS OVER BAR & HAY SHEAR BAR 1 2 5 ITEM # PART # DESCRIPTION 400908 HEX CROWN LOCNUT 1/2"-13 #9 402408 WASHER, FLAT 1/2" MED PLTD 407101 CHCS 1/2"-13 x 1-1/4" #5 PLTD 407112 CHCS 1/2"-13 x 5" #5 PLTD 407113 CHCS 1/2"-13 x 4-1/2"...

  • Page 92: Fenders

    POLY FENDER 354392 POLY FENDER TUBING MOUNT KIT (2 per kit) 354393 POLY FENDER TAPER BRACKET KIT (4 per kit) 370200 ROTO-MIX MUD FLAP 24" x 30" 370202 ROTO-MIX MUD FLAP 24" x 18-1/2" 872120 MUD FLAP BRACKET WA 872130...

  • Page 93: Oil Bath & Front End Sheet Lube Line Assemblies

    620-16XD OIL BATH LUBE ASSEMBLY COPPER TUBING LINES ITEM # PART # DESCRIPTION QTY. 310750 GREASE ZERK PLTD 1/8" 402506 FLAT WASHER 3/8" SAE PLTD 356203 COPPER TUBING, 3/8" SAE PLTD 356001 COMPRESSION FITTING 1/8"MP x 3/16", 90º 356002 COMPRESSION FITTING 1/8" MP x 3/16" STRAIGHT...
  • Page 94 620-16XD OIL BATH LUBE ASSEMBLY HOSE LINES ITEM # PART # DESCRIPTION QTY. 310750 GREASE ZERK PLTD 1/8" 367524 GREASE LINE (FILLED) 23" LG 367525 GREASE LINE, (FILLED) 51" LG 367525 GREASE LINE, (FILLED) 51" LG 367526 GREASE LINE, (FILLED) 113 "LG 367527 GREASE LINE (FILLED) 61 "LG...
  • Page 95 620-16XD FRONT END SHEET LUBE ASSEMBLY 9 8 7 6 ITEM # PART # DESCRIPTION QTY. 310750 GREASE ZERK PLTD 1/8" 367521 GREASE LINE, (FILLED) 14"LG 367522 GREASE LINE, (FILLED) 55" LG 367523 GREASE LINE, (FILLED) 88" LG 368000 PIPE ELBOW, 90° STREET 1/8"MP x 1/8"FP 400204 HEX NUT 1/4"-20 #5 PLTD...

  • Page 96: Ladder Option

    LADDER OPTIONS AVAILABLE ITEM # PART # DESCRIPTION QTY. 780095 LADDER BUNDLE, (2 RUNG EXTN) 780288 LADDER BUNDLE, (6 RUNG) 780289 LADDER BUNDLE, (5 RUNG) 780906 LADDER BUNDLE, (7 RUNG) Page 96...

  • Page 97: Truck Front Bumpers

    DESCRIPTION QTY. 340222 BEARING, 1 3/8" VCJT 370334 MARKER, ORANGE STICK x 2 FT 440890 DECAL - ROTO-MIX - 15-11/16" x 3 11/16" 872434 ROLLER, FT BUMPER, 5" DIA. 872439 BUMPER FRT W/HIGH ROLLER WA. FRONT BUMPER With LOW ROLLER #981019 15°...
  • Page 98 QTY. 340222 BEARING, 1 3/8" VCJT 370334 MARKER, ORANGE STICK x 2 FT 440890 DECAL - ROTO-MIX - 15-11/16" x 3 11/16" 872431 BMPR FRT HYDRO W/HIGH RLLR WA 872434 ROLLER, FT BUMPER, 5" DIA. FRONT HYDROSTAT BUMPER With LOW ROLLER, #981023 30°...
  • Page 99 ITEM # PART # DESCRIPTION QTY. 370334 MARKER, ORANGE STICK x 2 FT 440890 DECAL - ROTO-MIX - 15-11/16" x 3 11/16" 872432 BUMPER, TRK FRT, NO ROLLER FRONT HYDROSTAT BUMPER WITH NO ROLLER, #981022 30° REF ITEM # PART # DESCRIPTION QTY.

  • Page 100: Truck Rear Bumpers

    ITEM # PART # DESCRIPTION QTY. 185600 TAIL LIGHT BRKT 192219 PLATE, FLR 10" RR BMPR ROTO-MIX 400005 FLANGE NUT, TOP LOCK. 5/8-11 GR"G" 400007 Flange Nut, Top Lock. 3/8-16 GR "G" 407040 CHCS 3/8"-16 x 1" #5 PLTD 407121 CHCS 5/8"-11 x 2"...
  • Page 101 TRUCK REAR BUMPER, 10", ROUND LIGHT HOLES #780949 ITEM # PART # DESCRIPTION QTY. 192219 PLATE, FLR 10" RR BMPR ROTO-MIX 400005 FLANGE NUT, TOP LOCK. 5/8-11 GR"G" 400007 Flange Nut, Top Lock. 3/8-16 GR "G" 407040 CHCS 3/8"-16 x 1" #5 PLTD 407121 CHCS 5/8"-11 x 2"...
