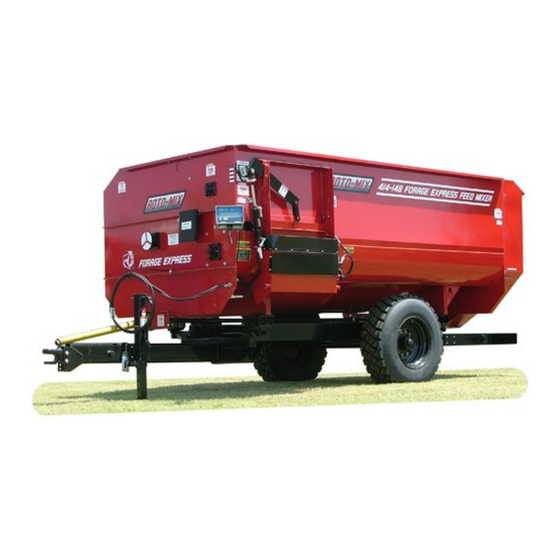

Roto-Mix 414-14B Operation And Parts Manual

Feed mixer
Hide thumbs

Advertisement

Quick Links

414-14B FEED MIXER
OPERATION AND PARTS MANUAL
ROTO-MIX
P.O. BOX 1724
2205 E. Wyatt Earp Blvd.
Dodge City, Kansas 67801
(620) 225-1142
© ROTO-MIX 2006
SERIAL NUMBER ____________
441905
1/201
Printed in U.S.A.

Advertisement

loading
Need help?

Need help?

Do you have a question about the 414-14B and is the answer not in the manual?

Questions and answers

Related Manuals for Roto-Mix 414-14B

Summary of Contents for Roto-Mix 414-14B

  • Page 1 414-14B FEED MIXER OPERATION AND PARTS MANUAL ROTO-MIX P.O. BOX 1724 2205 E. Wyatt Earp Blvd. Dodge City, Kansas 67801 (620) 225-1142 © ROTO-MIX 2006 SERIAL NUMBER ____________ 441905 1/201 Printed in U.S.A.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS PAGE NO. WARRANTY ------------------------------------------------------------------------------------------ 3 SCALES WARRANTY & SERVICE POLICY ----------------------------------------------- 4 OPERATOR QUALIFICATIONS --------------------------------------------------------------- 5 SAFETY --------------------------------------------------------------------------------------------- 6-16 OPERATION -------------------------------------------------------------------------------------- 17-23 LUBRICATION ------------------------------------------------------------------------------------- 24 SPECIFICATIONS --------------------------------------------------------------------------------- 25 PTO CHART ----------------------------------------------------------------------------------------- 26 DIMENSIONS ------------------------------------------------------------------------------------ 27-230 REPAIR PARTS ---------------------------------------------------------------------------------- 32-79...

  • Page 3: Warranty

    ROTO-MIX and that it be returned to ROTO-MIX within 10 days of purchase and be re- corded in ROTO-MIX’s owner file for this warranty to be valid. In the event an owner’s card is not on file at the ROTO-MIX office, the warranty period will extend only from date equipment was picked up or shipped from the ROTO-MIX plant.

  • Page 4: Scales Warranty & Service Policy

    - ROTO-MIX is not responsible and will not be liable for damage caused to persons or property, commercial loss, loss of time or production, loss of use by reason of the installation or use of ROTO-MIX products or their mechanical failure.

  • Page 5: Operator Qualifications

    OPERATOR QUALIFICATIONS Operation Of this mixer/feeder shall be limited to competent and experienced persons. In addition, anyone who will operate or work around a mixer/feeder must use good common sense. In order to be qualified, he or she must also know and meet all other qualifications, such as: 1.

  • Page 6: Safety

    It may also be used to alert against unsafe practices. If you have questions not answered in this manual or require additional copies or the manual is damaged, please contact your dealer or ROTO-MIX, 2205 E. Wyatt Earp, Dodge City, Kansas, 67801. (Telephone) 620-225-1142 (Fax) 620-225-6370...
  • Page 7 SAFETY FIRST REMEMBER: The careful operator is the best operator. Most accidents are caused by human error. Certain precautions must be observed to prevent the possibility of injury or death. DO NOT ALLOW PERSONNEL OTHER THAN THE QUALIFIED OPERATOR NEAR THE MACHINE. NEVER START MACHINE UNTIL ALL GUARDS AND SAFETY SHIELDS ARE IN PLACE.
  • Page 8 SAFETY READ BEFORE YOU FEED EQUIPMENT SAFETY GUIDELINES Safety of the operator is one of the main concerns in designing and developing a new piece of equipment. Designers and manufactures build in as many safety features as possible. However, every year many accidents occur which could have been avoided by a few seconds of thought and a more careful approach to handling equipment.
  • Page 9 SAFETY READ BEFORE YOU FEED KEEP ALL SHIELDS IN PLACE Do not operate mixer/feeder without safety shields in place. Rotating parts can crush or dismember causing personal injury or death. Disconnect PTO driveline before removing shields for adjustment or service. OPERATE MIXER/FEEDER SAFELY Rotating parts can entangle or strike people, resulting in personal injury or death.
  • Page 10 SAFETY READ BEFORE YOU FEED STAY CLEAR OF ROTATING DRIVELINES Entanglement in rotating driveline can cause serious injury or death. Keep tractor master shield and driveline shields in place at all times. Make sure rotating shields turn freely. Wear close fitting clothing. Stop the engine and be sure PTO driveline is stopped before making adjustments, connections, or cleaning out PTO driven equipment .
  • Page 11 SAFETY READ BEFORE YOU FEED PREPARING TRACTOR FOR TRAILER MIXER POSITIONING DRAWBAR IMPORTANT: Drive components can be damaged from excessive speed. Under no circumstances should a feed mixer equipped with 540 RPM be operated by a tractor with 1000 RPM PTO. Feed mixers are available with either 540 or 1000 RPM driveline.
  • Page 12 SAFETY SIGNS...
  • Page 13 SAFETY SIGNS...
  • Page 14 SAFETY SIGNS...
  • Page 15 Replace safety decals and signs that are missing or have become illegible. Replaced parts that displayed a safety sign should also display the current sign. Safety decals or signs are available from your dealer or the ROTO-MIX manufacturing plant. How to Install Safety Decals: Be sure that the installation area is clean and dry.
  • Page 16 Your best assurance against accidents is a careful and responsible operator. If there is any portion of this manual or function you do not understand, contact your dealer or the ROTO-MIX plant. BEFORE OPERATION: Carefully study and understand this manual.
  • Page 17 SAFETY READ BEFORE YOU FEED DURING OPERATION: Beware of bystanders, particularly children! Always look around to make sure that it is safe to start the engine of the towing vehicle or move the unit. This is particularly important with higher noise levels and quiet cabs, as you may not hear people shouting.
  • Page 18 SAFETY READ BEFORE YOU FEED DURING OPERATION (CONT.) Never leave running mixer/feeder unattended. As a precaution, always recheck the hardware on mixer/feeder following every 100 hours of operation. Correct all problems. Follow the maintenance safety procedures. FOLLOWING OPERATION: Following operation, or when unhitching, stop the tractor or towing vehicle, set the brakes, disengage the PTO and all power drives, shut off the engine and remove the ignition keys.
  • Page 19 SAFETY READ BEFORE YOU FEED HIGHWAY AND TRANSPORT OPERATIONS (CONT.): Comply with state and local laws governing highway safety and movement of farm machinery on public roads. Use approved accessory lighting flags and necessary warning devices to protect operators of other vehicles on the highway during daylight and nighttime transport.
  • Page 20 If equipment has been altered in any way from original design, ROTO-MIX does not accept any liability for injury or warranty. A fire extinguisher and first aid kit should be kept readily accessible while...
  • Page 21 READ THE FOLLOWING BEFORE WELDING ON THIS MIXER/FEEDER When welding on your mixer/feeder, do not allow the current to flow through the ball bearings or the roller chains. Ground directly to the item being welded. Always disconnect the scale instrumentation from the weigh bars or load cells and the power source.

  • Page 22: Operation

    The ROTO-HAY PROCESSOR will handle small amounts of damp hay, but this is done at your own risk. ROTO-MIX will not warranty bent or broken rotor tubes, bent or broken augers, or bent hay pans caused from misuse, wet hay, foreign objects, and/or overloading.
  • Page 23 LOADING INSTRUCTIONS FOR HAY PROCESSOR Load all commodities except liquids on the discharge (auger) side with the hay pan in the raised position. The raised hay pan does not affect the mixing action 1. If molasses and/or liquid protein is used, load on the rotor side of the mixer first with the mixer not running.

  • Page 24: Lubrication

    LUBRICATION CHART DISENGAGE PTO & SHUT OFF POWER BEFORE LUBRICATING THE MACHINE. LOOSE OR FLOPPY CLOTHING SHOULD NOT BE WORN BY THE OPERATOR. OIL BATH: Fill the oil bath with 30 weight motor oil to sight plug level. GREASE BANK: Grease every 100 hours. FRONT END BEARINGS: Grease every 100 hours.

  • Page 25: Specifications

    414-14 SPECIFICATIONS Capacity (Cu. ft.) .......... 410 Struck level capacity (Cu. ft.) ......470 Top Auger Bearing (Front) ......1-3/4” 4-Bolt Top Auger Bearing (Rear) ......2-1/2” 4-Bolt Bottom Auger Bearing (Front) ...... 2-3/16” 4-Bolt Bottom Auger Bearing (Rear) ....... 3” 4-Bolt Rotor Bearing (Front) ........

  • Page 26: Pto Chart

    PTO CHART 414-14 INPUT JACKSHAFT (% ENGINE SPEED) SPROCKET SPROCKET 17 Tooth 42 Tooth STANDARD 15 Tooth 42 Tooth TRANS 17 Tooth 54 Tooth 15 Tooth 54 Tooth AUTOMATIC 2:1 Gearbox 16 Tooth 42 Tooth TRANS 18 Tooth 42 Tooth DIESEL 16 Tooth 42 Tooth...
  • Page 27 414-14B STATIONARY DIMENSIONS APPROXIMATE WEIGHT, LESS MOTOR 414-14B STATIONARY ....9,260 LB. WITH HAY PROCESSOR ... 9,980 LB. 40" 22 1/2" OPTIONAL HAY PROCESSOR 53 1/2" 64 3/4" 2" 24 5/8" 13 3/8" 24" 47 1/2" 20 1/2" 185 1/2"...
  • Page 28 414-14B TRAILER DIMENSIONS HEIGHT DIMENSIONS ARE BASED ON 44" O.D. TIRES APPROXIMATE WEIGHT OPTIONAL HAY 414-14B ON TRAILER - 10,400 lbs PROCESSOR W/HAY PROCESSOR - 11,120 lbs *INCREASE DIMENSIONS BY 4" WHEN OPTIONAL RISER BLOCKS ARE INSTALLED. DECREASE DIMENSIONS BY 3"...
  • Page 29 24” ....330 LB. 36” ....415 LB. 48” ....500 LB. 39" - 41" 46" 50" - 52" 92" 60" - 62" 414-14B TRAILER MOUNTING DIMENSIONS AUGER SIDE OF PEDESTAL 46" 11" All Dimensions & Specifications are Approximate and Subject to Change...
  • Page 30 OPTIONAL HAY 92" TRUCK FRAME WITH 17" SPOUT PROCESSOR 22-1/2" APPROXIMATE WEIGHT 40" 414-14B ON TRUCK - - - - - - 9,700 LB WITH HAY PROCESSOR - - 10,420 LB 12" SPOUT 17" SPOUT 46" 44" 106" 49" 47"...
  • Page 31 This page intentionally left blank.
  • Page 32 PARTS PAGES TABLE OF CONTENTS PAGE NO. TRUCK HYDRAULIC SCHEMATIC ------------------------------------------------------------------- 33 JOYSTICK ASSEMBLY ---------------------------------------------------------------------------------- 34 WIRING SCHEMATIC FOR DISCHARGE DOOR ------------------------------------------------- 35 SPOUT MAGNET ASSEMBLY ----------------------------------------------------------------------- 36-37 CHAIN CONVEYOR ASSEMBLY ---------------------------------------------------------------------- 38 CHAIN CONVEYOR HYDRAULIC ASSEMBLY ---------------------------------------------------- 40 STAGGERED ROTOR ASSEMBLY ------------------------------------------------------------------- 41 3 ARM ROTOR ASSEMBLY ---------------------------------------------------------------------------- 42 5 ARM ROTOR ASSEMBLY ---------------------------------------------------------------------------- 43 STANDARD TOP &...
  • Page 33 TRUCK HYDRAULIC SCHEMATIC NOTE “A” NOTE “B” NOTE “C” NOTE “D” NOTE A - CONNECT TO DOOR CYL. BASE NOTE B - CONNECT TO DOOR CYL. ROD END NOTE C - CONNECT TO SPOUT CYL. BASE NOTE D - CONNECT TO SPOUT CYL. ROD END REF.
  • Page 34 JOYSTICK ASSEMBLY BOTTOM TO 12 VOLT BROWN BROWN GREEN YELLOW YELLOW GREEN REF. NO PART NO. DESCRIPTION QTY. 781056 SWITCH WIRE ASSEMBLY ............ 1 185575 JOYSTICK BRACKET .............. 1 357705 JOYSTICK SWITCH ..............1...
  • Page 35 WIRING SCHEMATIC FOR DISCHARGE DOOR TO 12 VOLT BROWN GREEN YELLOW GREEN YELLOW HYDRAULIC VALVES STARTER TO BATTERY BROWN HYDRAULIC VALVES REF. NO PART NO. DESCRIPTION QTY. 780081 JOYSTICK SWITCH PANEL ASSEMBLY ........1 362152 12V DC HYDRAULIC POWER UNIT VALVE ......... 1 368010 90 DEG.
  • Page 36 17" SPOUT ASSEMBLY 9 11 9 11 9 11...
  • Page 37 17" SPOUT ASSEMBLY ITEM # PART # DESCRIPTION QTY. 150150 SPOUT RUBBER END PLT 150299 SPOUT MAGNET GUARD 8" x 51-3/4" 150159 SPOUT MAGNET GUARD 8" x 39-1/2" 150383 SPOUT PIVOT TUBE 52-3/4" 150160 SPOUT PIVOT TUBE 40-3/4" 150384 SPOUT RUBBER, 6" x 57 1/2" 150161 SPOUT RUBBER, 6"...
  • Page 38 CHAIN CONVEYOR ASSEMBLY...
  • Page 39 CHAIN CONVEYOR ASSEMBLY #781411 ....24”L x 36”W CONVEYOR ASSEMBLY #781410 ....36”L x 36”W CONVEYOR ASSEMBLY #781412 ....48”L x 36”W CONVEYOR ASSEMBLY REF. NO PART NO. DESCRIPTION QTY. 160025 8 TOOTH #55 SPROCKET x 1”ID ........4 188412 36”W CONVEYOR DRIVE SHAFT ........
  • Page 40 CHAIN CONVEYOR HYDRAULIC ASSEMBLY TO MOTOR PORT A TO CONV FRONT TRACTOR DOWN TRACTOR END SHEET TO MOTOR PORT B TO CONV UP CONVEYOR CYLINDER REF. NO PART NO. DESCRIPTION QTY. 874071 CONVEYOR MOTOR PLATE WELDMENT ......1 781329 3/8” X 125” HYD. HOSE ASSY. (3/8”MP ENDS)....1 781328 1/2”...
  • Page 41 414-14 STAGGERED ROTOR ASSEMBLY REF. NO PART NO. DESCRIPTION QTY. 190339P PLASTIC WIPER ..............15 190500 WIPER CHANNEL ..............15 HEX NUT, 3/8"-16 NYLOCK #5 ..........90 401106 400908 HEX CENTER LOCKNUT 1/2”-13 PLTD ......60 FLAT WASHER 3/8" #9 BOWMALLOY ....... 90 402806 402408 FLAT WASHER 1/2”...
  • Page 42 3 ARM ROTOR ASSEMBLY REF. NO PART NO. DESCRIPTION QTY. 850556 3 ARM ROTOR WELDMENT ..........1 872563 FULL WIPER WELDMENT ............. 3 850007 ROTOR SPRING COVER WELDMENT ......... 6 150344 END WIPER STRAP ..............6 189373 CENTER WIPER STRAP ............3 150346 END PLASTIC WIPER..............
  • Page 43 5 ARM ROTOR ASSEMBLY REF. NO PART NO. DESCRIPTION QTY. 850557 5 ARM ROTOR WELDMENT ..........1 872563 FULL WIPER WELDMENT ............. 5 850007 ROTOR SPRING COVER WELDMENT ........ 10 150344 END WIPER STRAP ..............10 189373 CENTER WIPER STRAP ............5 150346 END PLASTIC WIPER.............
  • Page 44 414-14 STANDARD TOP & BOTTOM AUGER ASSEMBLY TOP AUGER BOTTOM AUGER REF. NO PART NO. DESCRIPTION QTY. 850559 TOP AUGER 1/4” FLIGHT W.A........... 1 382026 FILGHT RH 20”OD X 14” PITCH X 3/8” X 6 5/8”ID ..... 2 382024 FLIGHT LH 20”OD X 14”...
  • Page 45 414-14 OPTIONAL TOP & BOTTOM AUGER ASSEMBLIES TOP AUGER TOP AUGER BOTTOM AUGER REF. NO PART NO. DESCRIPTION QTY. 850570 TOP AUGER 3/8” FLIGHT W.A........... 1 382026 FLIGHT RH 20”OD X 6 5/8”ID X 3/8” X 14” PITCH .... 10 150126 TOP AUGER PADDLE .............
  • Page 46 414-14 FRONT END ASSEMBLY REF. NO PART NO. DESCRIPTION QTY. 340427 FLANGE BEARING 1 3/4” 4-BOLT ........1 340437 FLANGE BEARING 2 7/16” 4-BOLT ........1 340436 FLANGE BEARING 2 3/16” 4-BOLT ........1...
  • Page 47 414-14 OIL BATH DOOR ASSEMBLY REF. NO PART NO. DESCRIPTION QTY. 351056 RUBBER BULB SEAL 5/32” ..........25’ 370323 LEVELING PAD ................ 4 370316 CAM LOCK TOP PLATE ............4 370322 HANDLE STOP ................. 2 370321 CAM LOCK BUSHING ............. 2 370320 HANDLE CAM LOCK ..............
  • Page 48 414-14 DISCHARGE DOOR ASSEMBLY REF. NO PART NO. DESCRIPTION QTY. 850019 DISCHARGE DOOR WA 34” WIDE ........1 850378 DISCHARGE DOOR WA 46” WIDE ........1 850020 DOOR LEVER ARM WA (For 34” Door) ........ 1 850138 DOOR LEVER ARM WA (For 46” Door) ........ 1 150049 DOOR ARM ................
  • Page 49 414-14 HAND WHEEL ASSEMBLY REF. NO PART NO. DESCRIPTION QTY. 850079 HAND WHEEL FRAME WELDMENT ........1 850077 STATIONARY DOOR WELDMENT ........1 872030 HAND WHEEL WELDMENT ..........1 872349 BEARING BRAKE MOUNT WELDMENT ......1 189105 BEARING BRAKE BLOCK UHMW ........1 189106 HAND KNOB BOLT SUPPORT..........
  • Page 50 414-14 LUBRICATION ASSEMBLY REF. NO PART NO. DESCRIPTION QTY. 356001 1/8” NPTF X 3/16” COMP 90° ..........14 310750 1/8” FPT GREASE ZERK ............7 185045 3/16” COPPER GREASE LINE X 36” ........2 REAR JACKSHAFT BEARING FRONT JACKSHAFT BEARING 185547 3/16”...
  • Page 51 414-14 SCALE INDICATOR ASSEMBLY REF. NO PART NO. DESCRIPTION QTY. 184283 TRAILER HOSE CARRIER ............1 402205 3/8” CABLE CLAMP ..............1 850048 SCALE INDICATOR ARM WELDMENT ....... 1 405661 3/8”-16 X 3” HHCS ..............1 401106 3/8”-16 NYLOCK HEX NUT ............ 1 185493 SCALE HINGE WASHER ............
  • Page 52 414-14 TRUCK LOAD CELL SCALE FRAME ASSEMBLY REF. NO PART NO. DESCRIPTION QTY. 870527 TRUCK LOAD CELL SCALE FRAME ........1 182998 TRUCK FRAME BRACKET ............ 4 870519 MIXER SCALE CHECK ............2 870501 SCALE CHECK ROD ..............3 872053 OFFSET CHECK ROD ..............
  • Page 53 414-14 TRUCK WEIGH BAR SCALE FRAME ASSEMBLY REF. NO PART NO. DESCRIPTION QTY. 850080 TRUCK WEIGH BAR FRAME – 34” ........1 850274 TRUCK WEIGH BAR FRAME – 29 1/2” ......... 1 182998 TRUCK FRAME BRACKET ............ 4 185609 MIXER BAR MOUNT PAD ............4 872169 WEIGH BAR MOUNT 2 1/8”...
  • Page 54 414-14 TRUCK WEIGH BAR SADDLE BRACKET (USED WITHOUT REGULAR SCALE FRAME) #650070 WELD SUPPORT TO INSIDE USE SMALLER BACKING PLATE IN OF BACKING PLATES PLACES THAT THE REGULAR LARGER BETWEEN FRAME WHEN BACKING PLATE WILL NOT FIT. NEEDED. TRUCK FRAME REF.
  • Page 55 414-14 TRUCK LOAD CELL SADDLE BRACKET (USED WITHOUT REGULAR SCALE FRAME) #780137 WELD SUPPORT TO INSIDE OF BACKING PLATES BETWEEN FRAME WHEN NEEDED. TRUCK FRAME REF. NO PART NO. DESCRIPTION QTY. 872150 SADDLE MOUNT W.A............4 185567 SADDLE MOUNT BACKING PLATE ........4 450860 SCISSOR MOUNTING BRACKET ..........
  • Page 56 414-14 TRAILER WEIGH BAR SCALE FRAME ASSEMBLY REF. NO PART NO. DESCRIPTION QTY. 872169 WEIGH BAR MOUNT – 2 1/8” ..........4 850070 WEIGH BAR RISER BLOCK (OPTIONAL) ......4 185609 WEIGH BAR MOUNTING PAD ..........4...
  • Page 57 414-14 STATIONARY LOAD CELL SCALE FRAME ASSEMBLY REF. NO PART NO. DESCRIPTION QTY. 872019 STATIONARY SCALE FRAME LOAD CELL W.A....1 870519 MIXER SCALE CHECK ............2 182915 LOAD CELL CAGE PLATE ............. 8 185124 RUBBER SCALE PAD .............. 8 182881 SCALE MOUNT MIXER PLATE ..........
  • Page 58 414-14 STATIONARY WEIGH BAR SCALE FRAME ASSEMBLY ITEM # PART # DESCRIPTION QTY. 185609 BAR MOUNT MIXER PAD 7" 850076 354 STA SCALE FRAME WA 872169 2-1/8 WEIGH BAR MOUNT WA...
  • Page 59 414-14 STATIONARY FLOOR MOUNT SCALE ASSEMBLY REF. NO PART NO. DESCRIPTION QTY. 450863 STATIONARY BASE BRACKET W.A. – 2 1/8” W.B.... 4 850524 STATIONARY PAD W.A............4 151016 STATIONARY SCALE PAD ............ 4 404280 LATCH PIN – 3/4” X 3 1/2” ............4 404281 WEIGH BAR PIN –...
  • Page 60 414-14 TRAILER FRAME ASSEMBLY REF NO. PART NO. DESCRIPTION QTY. 651024 PERFECT HITCH KIT (INCLUDES BOTH PARTS) ... 1 374100 CAT. –3 BASE HITCH BODY ..........1 374101 CAT. – 3 CLEVIS INSERT ............1 374002 JACK 5,000 LB ................1 780904 JACK 9,000 LB DROP LEG TYPE (OPTIONAL) ....
  • Page 61 414-14 10-BOLT HUB & SPINDLE ASSEMBLY #750006 - 12,000 LB REF. NO PART NO. DESCRIPTION QTY. 342209 2 1/2” BORE BEARING – TIMKEN #39585......1 342210 1 3/4” BORE BEARING – TIMKEN #460........ 1 342211 4 7/16”OD RACE TIMKEN #39520.......... 1 342212 4 1/4”OD RACE –...
  • Page 62 414-14 TRAILER DRIVELINE ASSEMBLY REF. NO PART NO. DESCRIPTION QTY. 338230 U-JOINT W2300 1 1/2” X 1 1/2” ..........2 185480 KEY 3/8” SQ. X 2” ..............5 151093 DRIVELINE 1 1/2” X 103 3/4” ..........1 185299 CARRIER BEARING ANGLE BRACKET ......1 341024 CARRIER BEARING 1 1/2”...
  • Page 63 414-14 TRUCK DRIVELINE ASSEMBLY (STD. TRANSMISSION) REF. NO PART NO. DESCRIPTION QTY. 332610 CHAIN COUPLING SPROCKET – 6020 TLF ......1 335024 BUSHING – 2012 X 1 1/2” TL ..........2 188043 KEY - 3/8” SQ. X 1 7/16” ............2 332611 CHAIN COUPLING SPROCKET - 6020 TLH ......
  • Page 64 414-14 TRUCK DRIVELINE ASSEMBLY (AUTOMATIC TRANSMISSION) REF. NO PART NO. DESCRIPTION QTY. 332610 SPROCKET 6020 TLF CHAIN COUPLER ......1 335024 BUSHING 2012 X 1 1/2 TL ............2 188043 KEY 3/8” SQ. X 1 7/16” ............4 332611 SPROCKET 6020 TLH CHAIN COUPLER ......1 320720 COUPLER CHAIN #60-2 RC X 20 ..........
  • Page 65 414-14 STATIONARY SINGLE ELECTRIC MOTOR DRIVE ASSEMBLY REF. NO PART NO. DESCRIPTION QTY. 330654 SPROCKET #60 B 54 RC ............1 330607 SPROCKET #60 B 17H RC ............1 340228 BEARING 2-BOLT FLANGE VCJT 1 3/4” ......1 150716 ELECTRIC MOTOR INPUT SHAFT ........1 150229 ELECTRIC MOTOR PIVOT PIPE ..........
  • Page 66 414-14 TRAILER DRIVELINE #338029 (STANDARD) REF. NO PART NO. DESCRIPTION QTY. YOKE (TRACTOR END) 338444 YOKE 540 RPM ................ 1 338442 YOKE 1000 RPM ..............1 338443 CROSS KIT ................2 338473 ROLL PIN METRIC #10 ............2 338450 INBOARD YOKE (TRACTOR END)........1 338747 INNER PROFILE (TRACTOR END) ........
  • Page 67 414-14 TRAILER DRIVELINE WITH CV JOINT #338031 (OPTIONAL) REF. NO PART NO. DESCRIPTION QTY. 338468 YOKE 1 3/8”-6 SPLINE CVC (TRACTOR END) ....1 338469 DOUBLE YOKE CVC (TRACTOR END) ....... 1 338470 CROSS & BEARING KIT CVC ..........2 338473 ROLL PIN –...
  • Page 68 414-14 TRUCK DRIVELINE - REAR #338042 AUTOMATIC TRANSMISSION 1 3/4" 24 3/16" 25 3/16" 1 3/4" ITEM # PART # DESCRIPTION QTY. 338443 CROSS KIT 32mm x 76mm W2400 312410 338448 INNER PROFILE W2400 1B-021467 338449 Yoke 1-3/4"RD, W2400, 3/8"-16 Shear Bolt, 385559 - 383397 338450 INBOARD YOKE 1b W2400 019518 338451...
  • Page 69 414-14 TRUCK DRIVELINE – REAR #780494 (STANDARD TRANSMISSION) REF. NO PART NO. DESCRIPTION QTY. 338053 DRIVESHAFT SPLINE TUBE ASSY. (SPICER) ....1 338422 YOKE 1 3/8” (SPICER) ............. 2 338435 CROSS KIT (SPICER) ............... 2 414-14 TRUCK DRIVELINE – FRONT #780486 (AUTO &...
  • Page 70 414-14 DRIVE ASSEMBLY REF. NO PART NO. DESCRIPTION QTY. 187154 IDLER BLOCK (#60) ..............1 412412 SET COLLAR 3/4” - PLATED ..........4 850065 IDLER ARM W.A. – DRIVE CHAIN ........1 410851 EYE BOLT 3/8” X 6” ..............3...
  • Page 71 414-14 DRIVE ASSEMBLY REF. NO PART NO. DESCRIPTION QTY. 410008 PULL SPRING 1 1/4” X 5 1/4” ..........3 150224 IDLER BLOCK (#80) ..............1 850151 OFFSET IDLER ARM W.A. – TOP AUGER CHAIN ..... 1 187153 PULL TAB ................. 1 185487 PULL CHAIN 3”...
  • Page 72 414-14 2:1 GEARBOX ASSEMBLY #344022 REF. NO PART NO. DESCRIPTION QTY. 344214 CLOSED END CAP ..............2 344215 END CAP GASKET ..............4 344211 BOX BEARING CUP 18620 ............. 4 344210 GEARBOX BEARING 1 /34” T-18690 ........4 344217 HIGH SPEED GEAR ..............1 344213 OPEN END CAP 02-23-00166-400 ..........
  • Page 73 414-14 LOWER AUGER FLOAT ASSEMBLY REF. NO PART NO. DESCRIPTION QTY. 150418 BEARING SLIDER PLASTIC ..........2 150764 FLOATING AUGER SHIELD ..........1 400206 HEX NUT 3/8"-16 #5 PLTD ............. 4 400210 HEX NUT 5/8"-11 #5 PLTD ............. 5 400610 HEX JAM NUT # 5 PLTD 5/8"...
  • Page 74 414-14 HAY PROCESSOR ASSEMBLY REF. NO PART NO. DESCRIPTION QTY. 850058 HAY PAN FRONT BEARING W.A......... 1 850572 HAY PAN TUBE W.A............... 1 872351 HAY PAN W.A................1 150198 BAFFLE PLUNGER UHMW ............ 1 850300 CROSS BAR W.A..............1 850057 HAY PAN CENTER BEARING W.A.
  • Page 75 414-14 HAY PROCESSOR (CABLE OPTION) REF. NO PART NO. DESCRIPTION QTY. 850090 HAY PAN CABLE ARM W.A..........1 150088 CABLE BAR ................2 150189 SLEEVE 1”OD x 13/16” ............1 412204 CABLE CLAMP 1/4” ..............2 150669 CABLE ..................1 850066 CABLE PULLEY BRACKET W.A.
  • Page 76 414-14 HAY PROCESSOR (HYDRAULIC OPTION) REF. NO PART NO. DESCRIPTION QTY. 188226 FEEDER ELECTRIC CONTROL BRACKET ......1 357702 PUSH BUTTON SWITCH 12V-2 POLE ........1 362207 SLD ADD ON VALVE VX-13D (TRUCK) ......1 780109 2” x 8” STRAIGHT DOOR CYLINDER ASSY....... 1 368007 FITTING 3/8”MP x 3/8”FPSW 90°...
  • Page 77 414-14 FENDERS & MUD FLAPS REF. NO PART NO. DESCRIPTION QTY. 872108 FENDER WELDMENT ............. 2 183087 MUD FLAP STRAP ............4 370202 FRONT MUD FLAP ............2 370200 REAR MUD FLAP ............2 872120 MUD FLAP BRACKET WELDMENT ....... 2...
  • Page 78 FORAGE EXPRESS LADDER ASSY #950020 ITEM # PART # DESCRIPTION QTY. 150389 LADDER MOUNT ANGLE 5" 150390 LADDER MOUNT BRACKET 6 7/8" 190979 LADDER, FORMED 7 RUNG 400114 HEX NUT, 1/2-13 SERRATED FLANGE #5 400208 HEX NUT 1/2"-13 #5 PLTD 402008 SPRING LOCK WASHER 1/2"...
  • Page 79 This Page intentionally left blank.
