Roto-Mix 1355 HDS Operation And Parts Manual

Cyclone vertical feed mixer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

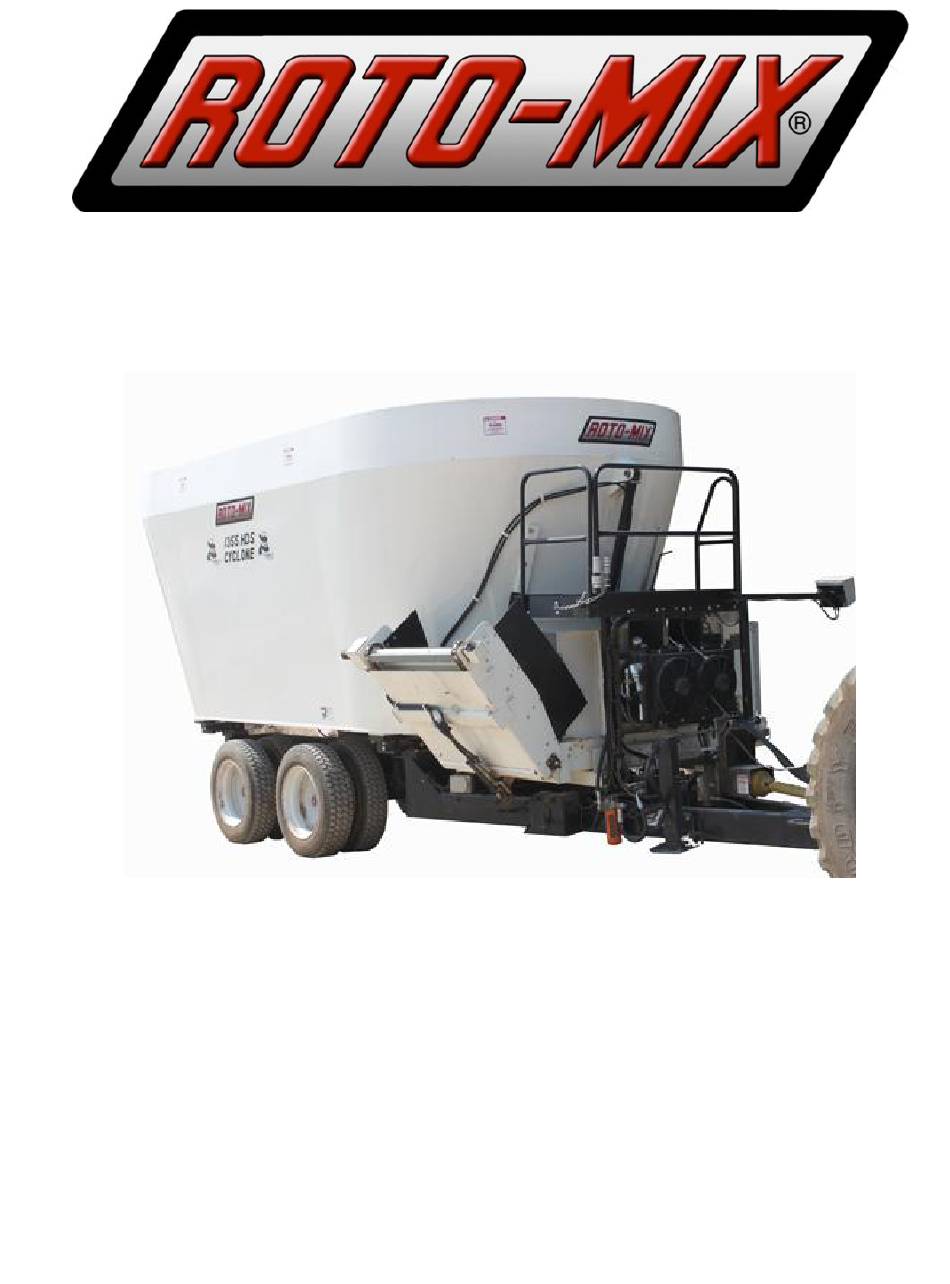

1355 HDS, 1505 HDS
CYCLONE VERTICAL FEED MIXER
TRAILER OPERATION AND PARTS MANUAL
ROTO-MIX LLC
P.O. BOX 1724
2205 E. Wyatt Earp Blvd.
Dodge City, Kansas 67801
(620) 225-1142
© ROTO-MIX LLC 2006
_________________
441940 11/2018
SERIAL NUMBER
Made in USA
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1355 HDS and is the answer not in the manual?

Questions and answers

Related Manuals for Roto-Mix 1355 HDS

Summary of Contents for Roto-Mix 1355 HDS

  • Page 1 1355 HDS, 1505 HDS CYCLONE VERTICAL FEED MIXER TRAILER OPERATION AND PARTS MANUAL ROTO-MIX LLC P.O. BOX 1724 2205 E. Wyatt Earp Blvd. Dodge City, Kansas 67801 (620) 225-1142 © ROTO-MIX LLC 2006 _________________ 441940 11/2018 SERIAL NUMBER Made in USA...
  • Page 2 Page 2...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS PAGE NO. INTRODUCTION ....................4 WARRANTY ......................5 SCALES WARRANTY & SERVICE POLICY ............6 OPERATOR QUALIFICATIONS ................7 SAFETY ......................8-18 OPERATION ...................... 19-25 LUBRICATION ....................26-27 TROUBLE SHOOTING ..................28 VERTICAL MIXER FEATURES ................29 DIMENSIONS & SPECIFICATIONS ..............30-32 REPAIR PARTS CONTENTS PAGE ..............

  • Page 4: Introduction

    Failure to read this manual and understand the safe operation of the mixer could lead to serious injury. If you do not understand the instructions in this manual contact either your dealer or ROTO-MIX at Dodge City, Kansas 67801. This supersedes all previous published instructions.

  • Page 5: Warranty

    ROTO-MIX and that it be returned to ROTO-MIX within 10 days of purchase and be re- corded in ROTO-MIX’s owner file for this warranty to be valid. In the event an owner’s card is not on file at the ROTO-MIX office, the warranty period will extend only from date equipment was picked up or shipped from the ROTO-MIX plant.

  • Page 6: Scales Warranty & Service Policy

    - ROTO-MIX is not responsible and will not be liable for damage caused to persons or property, commercial loss, loss of time or production, loss of use by reason of the installation or use of ROTO-MIX products or their mechanical failure.

  • Page 7: Operator Qualifications

    OPERATOR QUALIFICATIONS Operation of this mixer shall be limited to competent and experienced persons. In addition, anyone who will operate or work around a mixer must use good common sense. In order to be qualified, he or she must also know and meet all other qualifications, such as: 1.

  • Page 8: Safety

    It may also be used to alert against unsafe practices. If you have questions not answered in this manual or require additional copies or the manual is damaged, please contact your dealer or ROTO-MIX, 2205 E. Wyatt Earp, Dodge City, Kansas, 67801. (Telephone) 620-225-1142 (Fax) 620-225-6370...
  • Page 9 B. Before loading, run the mixer empty and check all operations. C. Do not overload the mixer. Maximum load for the 1355 HDS it is 33,500 LB and for the 1505 HDS is 33,500 LB. Maximum load is determined by weight, not volume.
  • Page 10 SAFETY READ BEFORE YOU FEED EQUIPMENT SAFETY GUIDELINES Safety of the operator is one of the main concerns in designing and developing a new piece of equipment. Designers and manufactures build in as many safety features as possible. However, every year many accidents occur which could have been avoided by a few seconds of thought and a more careful approach to handling equipment.
  • Page 11 SAFETY READ BEFORE YOU FEED KEEP ALL SHIELDS IN PLACE Do not operate mixer without safety shields in place. Rotating parts can crush or dismember causing personal injury or death. Disconnect PTO driveline before removing shields for adjustment or service. OPERATE MIXER SAFELY Rotating parts can entangle or strike people, resulting in personal injury or death.
  • Page 12 SAFETY READ BEFORE YOU FEED STAY CLEAR OF ROTATING DRIVELINES Entanglement in rotating driveline can cause serious injury or death. Keep driveline shields in place at all times. Make sure rotating shields turn freely. Do not wear loose-fitting clothing which may catch in moving parts. Stop the engine and be sure PTO driveline is stopped before making adjustments, connections, or cleaning out PTO driven equipment .
  • Page 13 Replace safety decals and signs that are missing or have become illegible. Replaced parts that displayed a safety sign should also display the current sign. Safety decals or signs are available from your dealer or the ROTO-MIX manufacturing plant. How to Install Safety Decals: Be sure that the installation area is clean and dry.
  • Page 14 Your best assurance against accidents is a careful and responsible operator. If there is any portion of this manual or function you do not understand, contact your dealer or the ROTO-MIX plant. BEFORE OPERATION: Carefully study and understand this manual.
  • Page 15 SAFETY READ BEFORE YOU FEED DURING OPERATION: Beware of bystanders, particularly children ! Always look around to make sure that it is safe to start the engine or move the unit. This is very important with higher noise levels and quiet cabs, you may not hear people shouting.
  • Page 16 SAFETY READ BEFORE YOU FEED DURING OPERATION (CONT) Never leave running mixer unattended. As a precaution, always recheck the hardware on mixer following every 100 hours of operation. Correct all problems. Follow the maintenance safety procedures. FOLLOWING OPERATION: Following operation, set the brakes, disengage all power drives, shut off the engine and remove the ignition keys.
  • Page 17 SAFETY READ BEFORE YOU FEED HIGHWAY AND TRANSPORT OPERATIONS (CONT): Comply with state and local laws governing highway safety and movement of farm machinery on public roads. Use approved accessory lighting, flags and necessary warning devices to protect operators of other vehicles on the highway during daylight and nighttime transport. The use of flashing amber lights is acceptable in most localities.
  • Page 18 ROTO-MIX will not claim responsibility for use of unapproved parts and/or accessories and other damages as a result of their use. If equipment has been altered in any way from original design, ROTO-MIX does not accept any liability for injury or warranty.
  • Page 19 SAFETY READ BEFORE YOU FEED PREPARING TRACTOR FOR TRAILER MIXER POSITIONING DRAWBAR IMPORTANT: Drive components can be damaged from excessive speed. Do not operate tractor at speeds in excess of recommended PT0 rpm . This feed mixer is equipped with a 1000 RPM driveline. Match tractor PTO with the feed mixer driveline.
  • Page 20 Maximum weight is 33,500 LB for the 1355 HDS model and 33,500 LB for the 1505 HDS model. C. Load hay first with machine running: TRACTOR RUNNING AT 1000 RPM PTO SPEED.
  • Page 21 1355 - 1505 CYCLONE VERTICAL MIXER OPERATION I. Description of Operation : A trailer mounted tractor PTO driven feed mixer. Pumps & Motors: Tandem Linde closed loop pumps driving 2 Poclain two speed motors. The mo- tors turn the vertical augers used to mix cattle feed. Operation feed back inputs: PTO pulse pick up, auger 1 and auger 2 motor speed pulse pickups, and mixing pressure transducers.
  • Page 22 1355 - 1505 CYCLONE VERTICAL MIXER OPERATION If the PTO is below PTO speed, set at1850 RPM, line 4 will display “RUN RPM LOW”. If the Mix or Feed button is held “LOW” will blink. If there is a fault “F,L,T”...

  • Page 23: Operation

    1355 - 1505 CYCLONE VERTICAL MIXER OPERATION Jam condition: If one or both motors are jammed the pressure will be at relief and the auger speed will be zero. Display will show jammed condition. After a time delay, set at 12 seconds the control will switch to a reverse operation.
  • Page 24 1355 - 1505 CYCLONE VERTICAL MIXER OPERATION II. Fault Information : Passive Faults Filter Bypass Fault: This fault is true if the fault is active (NC indicator switch) and the system is at fan operating temperature. FLT will blink on the right side page of 1 and display “Filter Bypass”...
  • Page 25 1355 - 1505 CYCLONE VERTICAL MIXER OPERATION  Input and output faults Motor 1 pressure transducer is shown in fault status.  Page 3: Fault Page1  Display will revert to page 1 operation page after 5 seconds.  Motor 1 PSI and Motor 2 PSI: Pressure transducer faulted. Check connection at transducer.

  • Page 26: Lubrication

    LUBRICATION DISENGAGE PTO & SHUT OFF POWER BEFORE LUBRICATING THE MACHINE. DO NOT WEAR LOOSE FITTING CLOTHING THAT MAY CATCH IN MOVING PARTS. PTO SHAFTS & U-JOINTS: Grease every 8 hours of operation. (CITGO Transgard Tractor IT IS RECOMMENDED THAT THE HYDRAULIC RESERVOIRS USE Hydraulic Fluid - Material Code 633310001) ONLY.
  • Page 27 LUBRICATION CHART ALWAYS DISCONNECT OR DISENGAGE POWER TAKE OFF AND REMOVE KEYS FROM TRACTOR BEFORE ADJUSTING, LUBRICATION OR SERVICING THIS MACHINE. FAILURE TO HEED MAY RESULT IN SERIOUS PERSONAL INJURY OR DEATH. ITEM LUBRICATION INTERVAL Conveyor Chain Light Weight Oil Brush or spray on lightly every 40 hours of operation.

  • Page 28: Trouble Shooting

    TROUBLE SHOOTING ALWAYS DISCONNECT OR DISENGAGE POWER TAKE OFF AND REMOVE KEYS FROM TRACTOR BEFORE CLEANING, ADJUSTING, LUBRICATING OR SERVICING THIS MACHINE. FAILURE TO FOLLOW THIS RECOMMENDATION MAY RESULT IN SERIOUS PERSONAL INJURY OR DEATH. NOTE: THIS CHART DOES NOT COVER ALL PROBLEMS. CONTACT YOUR DEALERSHIP FOR FURTHER ASSISTANCE.
  • Page 29 1355 - 1505 CYCLONE VERTICAL MIXER FEATURES Vertical Mixers with Double Flighted Twin Augers From 1355 to 1505 cubic feet that work well with small or large hp tractors.  Designed for 180-300 HP tractors  New HDS system automatically adjusts to your tractor’s PTO RPM for best efficiency (on any tractor hp 180 or higher) ...
  • Page 30 1355/1505 HDS TRAILER DIMENSIONAL DATA 245" 1355 -135" 1505 -145" 43 1/2" 26" 18" 17" TO 23 3/4" 320" 115 1/2" 8" 1355 -135" 1505 -145" 46 1/2" 15 1/2" 6" 21 1/2" 100" TYPICAL INCLINED CONVEYOR (EXTENDED) INCLINED CONVEYOR (RETRACTED) All Dimensions &...
  • Page 31 1355/1505 HDS TRAILER DIMENSIONAL DATA 115 1/2" 34 1/2" 34 1/2" 5" 5" 19" 20" 110" FLAT CONVEYOR FLAT CONVEYOR (CENTERED) FLAT CONVEYOR (EXTENDED LEFT) (EXTENDED RIGHT) 115 1/2" 6 1/2" 56" 34 1/2" 33 1/2" 30" 14 1/2" 122 1/2" ADJUSTABLE CONVEYOR ADJUSTABLE CONVEYOR ADJUATABLE CONVEYOR...
  • Page 32 1355 - 1505 CYCLONE VERTICAL MIXER SPECIFICATIONS MODEL 1355 HDS (Trailer) 1505 HDS (Trailer) DESCRIPTION Maximum Load 24,300 lbs. 27,000 lbs. with Hay Ration Maximum Load 33,750 lbs. 33,750 lbs. with Heavy Ration Empty Weight, Approximate 20,600 lbs. 21,030 lbs.
  • Page 33 REPAIR PARTS TABLE OF CONTENTS PAGE NO. VERTICAL AUGER MIXER ASSEMBLY ............34 TRAILER ASSEMBLY ..................36 TRAILER SPINDLE & HUB ASSEMBLY ............38 TRAILER SCALE FRAME ASSEMBLY .............. 39 TRACTOR DRIVE SHAFT ASSEMBLY .............. 40 SHORT DRIVE SHAFT , GEARBOX TO HYDRAULIC PUMP ......41 HYDRAULICS ....................

  • Page 34: Vertical Auger Mixer Assembly

    1355/1505 HDS MIXER ASSEMBLY Page 34...
  • Page 35 1355/1505 HDS MIXER ASSEMBLY ITEM # PART # DESCRIPTION QTY. 140099 ALL THREAD 3/8' x 5" 160076 KNIFE BCKUP PLATE - LEFT HAND 160115 DOOR GUIDE BAR - 60" 160118 VERTICAL KNIFE 160619 CYLINDER PIN 1" x 5-7/8" 160620 CYLINDER PIN 1" x 4-1/4" 161840 POCLAIN MOTOR MOUNT PLATE 161847...

  • Page 36: Trailer Assembly

    1355/1505 HDS TRAILER ASSEMBLY 28 43 25 41 42 26 32 Page 36...
  • Page 37 1355/1505 HDS TRAILER ASSEMBLY ITEM # PART # DESCRIPTION 161391 PTO SHIELD MOUNT BRACKET 161895 PUMP SUPPORT ARM LH 161896 PUMP SUPPORT ARM RH 161927 SELECTOR VALVE MOUNT PLATE 161928 DRIVELINE SHIELD 185302 P.T.O. SHIELD 310931SS PIPE PLUG, 1-1/2" SQ TOP SS 357400 BATTERY BOX W/STRAP 362060...

  • Page 38: Trailer Spindle & Hub Assembly

    1355/1505 TRAILER SPINDLE & HUB ASSEMBLY #750110 RH & #750111 LH ITEM # PART # DESCRIPTION 184614 20,000# SPINDLE 342213 INNER BEARING 3.543" BORE, HM218248 342214 OUTSIDE BEARING 2 5/8" OD, HM212049 342215 INNER BEARING RACE 5.787"OD, HM218210 342216 OUTSIDE BEARING RACE 4 13/16 OD, HM212011 372212 10-BOLT HUB, 20,000# 372304...

  • Page 39: Trailer Scale Frame Assembly

    1355/1505 TRAILER SCALE FRAME ASSEMBLY 3 4 5 ITEM # PART # DESCRIPTION QTY. 160016 SCALE PAD 7 1/8" x 7 7/8" 400912 HEX CROWN LOCK NUT 3/4"-10 #5 PLTD 402012 SPRING LOCK WASHER 3/4" PLTD 402412 FLAT WASHER 3/4" PLTD 405779 HHCS 3/4"-10 x 2"...

  • Page 40: Tractor Drive Shaft Assembly

    1355/1505 TRACTOR DRIVE SHAFT ASSEMBLY #338570 ITEM # PART # DESCRIPTION 338446 CROSS KIT W2500 312209 338454 INBOARD YOKE W2500 S5 097140 338473 ROLL PIN #10 METRIC 10 x 80 338489 BEARING RING 338503 SUPPORT BEARING- 355155 338600 YOKE 1-3/4" - 20 SPL QD W2500 ASG 135316 338601 DOUBLE YOKE CVC W-2500 365725 338602...

  • Page 41: Short Drive Shaft , Gearbox To Hydraulic Pump

    1355/1505 SHORT DRIVE SHAFT GEARBOX TO HYDRAULIC PUMP ITEM # PART # DESCRIPTION 161941 PROXIMITY PLATE 338008 DRIVELINE 1480 13" C-C (includes cross kits & flanges) 338405 FLANGE YOKE, SPICER 1480 3-2-489 (1.5") 338437 CROSS KIT, SPICER 1480 5-188X 338589 COMPANION FLANGE 1480, 35mm ID 10x8 KEY 400208 HEX NUT 1/2"-13 #5 PLTD...

  • Page 42: Hydraulics

    1355/1505 HYDRAULICS NOTE: SOME PARTS HAVE BEEN REMOVED FOR CLARITY Page 42...
  • Page 43 1355/1505 HYDRAULICS ITEM # PART # DESCRIPTION 161910 RESERVOIR MOUNT PLATE 310931SS PIPE PLUG, 1-1/2" SQ TOP SS 362376 MANIFOLD ASSEMBLY, 1355 HDS 362443 FILTER ELEMENT, DONALDSON P167590 362552 SIDE FILLER HI-NECK ASSY 362555 SIGHT GAUGE 5" 362584 HEAT EXCHANGER ASSY W/FAN 368020 HYDRAULIC SWIVEL 90º...
  • Page 44 1355/1505 HYDRAULICS Page 44...
  • Page 45 ITEM # PART # DESCRIPTION 362044 GEAR PUMP 3.5, 13T SPL 362060 LINDE TANDEM PUMP ASSEMBLY 362376 MANIFOLD ASSEMBLY, 1355 HDS 362443 FILTER ELEMENT, DONALDSON P167590 368237 QUICK DISCONNECT FEMALE, 1/2" NPT 412220 HOSE CLAMP, 1-1/2" (1" HOSE) 781719 HOSE ASSY 1" x 70", 1-7/16"FFORX90S x 1-11/16"FFORX 781720 HOSE ASSY 3/8"...

  • Page 46: Auger Motor Hydraulics

    1355/1505 MOTOR HYDRAULICS 14 10 DETAIL A Page 46...
  • Page 47 1355/1505 MOTOR HYDRAULICS ITEM # PART # DESCRIPTION 161840 POCLAIN MOTOR MOUNT PLATE 360060 MOTOR, 366.6 CID WHEEL MOUNT 368212 STRAIGHT ADAPTER, 18mm x 9/16" JIC 368213 STRAIGHT ADAPTER, 22mm x 3/4" JICM 368451 FLANGE SET 16 FHH SPLIT C62 (1") 368618 TEE, 3/4"...

  • Page 48: Hydraulic Pumps & Valve Block

    1355/1505 HYDRAULIC PUMPS & VALVE BLOCK Page 48...
  • Page 49 1355/1505 HYDRAULIC PUMPS & VALVE BLOCK ITEM # PART # DESCRIPTION QTY. 362044 PERMCO GEAR PUMP 362060 LINDE TANDEM PUMP ASSEMBLY 362387 MANIFOLD BODY, FV-9307-M1 362390 EATON RELIEF VALVE 362394 LOGIC ELEMENT, RELIEF STYLE 362391 DAMPENED RELIEF VALVE 362392 SHUTTLE VALVE PARKER 362255 SOLENOID VALVE 362388...

  • Page 50: Platform Assembly

    1355/1505 PLATFORM ASSEMBLY 10 12 9 10 Page 50...
  • Page 51 1355/1505 PLATFORM ASSEMBLY ITEM # PART # DESCRIPTION 161908 KICKBOARD RH REAR 161926 SPACER PLATE 162019 HOSE CLIP ANGLE - BOLT ON 162055 COVER, CONTROLLER 162071 KICKBOARD LH REAR 1355 TRL 400107 HEX NUT, 3/8"-16 SERRATED FLANGE 400113 FLANGE HEX NUT, 1/4"-20 SERRATED 400114 HEX NUT, 1/2"-13 SERRATED FLANGE 402008...

  • Page 52: Incline Conveyor Assembly

    1355/1505 INCLINE CONVEYOR ASSEMBLY #660245 Page 52...
  • Page 53 1355/1505 INCLINE CONVEYOR ASSEMBLY ITEM # PART # DESCRIPTION 161383 MOUNT ANGLE 161775 DOGLEG RUBBER SHIELD 161810 RAIL BOLT PLATE 161811 CONVEYOR SLIDE ROLLER 161817 RUBBER SUPPORT PLATE 161818 DOGLEG EXTENSION SHIELD 161819 DOGLEG CONVEYOR REAR FILLER 161820 DOGLEG CONVEYOR REAR FILLER 161821 CONVEYOR SHIELD BOLT PLATE 161823...
  • Page 54 1305/1505 INCLINE CONVEYOR SLIDE ASSEMBLY # 760172 26 30 38 28 24 11 36 27 31 Page 54...
  • Page 55 1305/1505 INCLINE CONVEYOR SLIDE ASSEMBLY ITEM # PART # DESCRIPTION 161508 PLASTIC IDLER 161762 DOGLEG EXTENSION BOLT-ON 161774 DRIVE CHAIN COVER 161777 CONVEYOR BOLT PLATE 161783 MOTOR MOUNT TUBE 161784 CLEANOUT DOOR 42"W CONVEYOR 161786 CONVEYOR MOUNT ANGLE 161787 RUBBER HINGE 42"W CONV 161788 HINGE STRAP 42"W CONVEYOR 161789...

  • Page 56: Flat Conveyor Assembly

    1355/1505 FLAT CONVEYOR ASSEMBLY # 660247 Page 56...
  • Page 57 1355/1505 FLAT CONVEYOR ASSEMBLY ITEM # PART # DESCRIPTION 161810 RAIL BOLT PLATE 161811 CONVEYOR SLIDE ROLLER 161872 CONVEYOR SIDE SHIELD 161934 CONVEYOR SLIDE RAIL FLAT & DOGLEG 161944 PLASTIC SLIDE RAIL 364076 HYD CYL 2" x 30", 40-1/4" C-C 368020 HYD SWIVEL 90º...
  • Page 58 1305/1505 FLAT CONVEYOR SLIDE ASSEMBLY #760171 33 23 19 Page 58...
  • Page 59 1305/1505 FLAT CONVEYOR SLIDE ASSEMBLY #760171 ITEM # PART # DESCRIPTION QTY. 161508 PLASTIC IDLER 161774 DRIVE CHAIN COVER 161777 CONVEYOR BOLT PLATE 161780 PLASTIC LINER FLAT CONV 161783 MOTOR MOUNT TUBE 161830 CONVEYOR CHAIN HOLD DOWN 161940 SLIDE CYLINDER BOLT-ON LUG 162024 PLASTIC LINER HOLD DOWN STRAP 162074...

  • Page 60: Adjustable Incline Conveyor Assembly

    1355/1505 ADJUSTABLE INCLINE CONVEYOR ASSEMBLY #660244 27 28 16 22 19 20 19 Page 60...
  • Page 61 1355/1505 ADJUSTABLE INCLINE CONVEYOR ASSEMBLY #660244 ITEM # PART # DESCRIPTION 161383 MOUNT ANGLE 161532 CONVEYOR EXTENSION 161810 RAIL BOLT PLATE 161811 CONVEYOR SLIDE ROLLER 161866 SIDE SHIELD ADJUSTABLE CONVEYOR 161867 RUBBER SUPPORT PLATE 161868 SLIDE RAIL ADJUSTABLE CONVEYOR 161871 CONVEYOR EXTENSION 161872 CONVEYOR SIDE SHIELD...
  • Page 62 1355/1505 ADJUSTABLE INCLINE SLIDE ASSEMBLY # 760173 37 1 1 37 33 5 Page 62...
  • Page 63 1355/1505 ADJUSTABLE INCLINE SLIDE ASSEMBLY # 760173 ITEM # PART # DESCRIPTION 161508 PLASTIC IDLER 161774 DRIVE CHAIN COVER 161783 MOTOR MOUNT TUBE 161784 CLEANOUT DOOR 42"W CONVEYOR 161786 CONVEYOR MOUNT ANGLE 161787 RUBBER HINGE 42"W CONV 161788 HINGE STRAP 42"W CONVEYOR 161799 PLASTIC LINER 42"W ADJ CONVEYOR 161830...

  • Page 64: Trailer Control Wiring Diagram

    1355/1505 TRAILER CONTROL WIRING DIAGRAM Page 64...
  • Page 65 WIRE HARNESS, HDS 360060 MOTOR, 366.6 CID WHEEL MOUNT 362044 PERMCO GEAR PUMP 362060 LINDE TANDEM PUMP ASSEMBLY 362376 MANIFOLD, 1355 HDS 362405 FILTER HEAD, 1-1/16" O-RING 362584 HEAT EXCHANGER ASSY W/FAN 362832 SWITCH, 120° FAN 452073 HCT DVC710 CONTROLLER...

  • Page 66: Trailer Hydraulic Schematic

    1355/1505 TRAILER HYDRAULIC SCHEMATIC COOLER TO RESERVOIR - 781518 FILTER BYPASS 781729 MANIFOLD TO COOLER - 781741 MOTOR #2 CASE FLUSH - CD2 - 781723 MOTOR #1 CASE FLUSH - CD1 - 781722 MOTOR CASE DRAIN 781726 TWO SPEED 781728 Page 66...
  • Page 67 1355/1505 TRAILER HYDRAULIC SCHEMATIC PUMP LH VIEW MANIFOLD TO RES. - DR - 781739 COOLER - 781741 MANIFOLD TO RES - DRP - 781740 781730 FILTER INLET 781731 CHARGE PUMP INLET - 781741 MOTOR #2 HIGH PRESSURE - 781742 MOTOR #2 HIGH PRESSURE - 781742 PUMP RH VIEW MOTOR #1 HIGH PRESSURE - 781743 MOTOR CASE DRAIN - MD - 781738...

  • Page 68: Gearbox 2:1 Increaser

    GEARBOX, 2:1 INCREASER AP202 #344004 REF # PART # DESCRIPTION 310802 PLUG, 3/8" PIPE, BLACK 342229 BEARING 40mm ID x 90MM OD 31308 344227 SEAL M-10 INPUT 40 x 90 x 8 344236 SHAFT, INPUT AP2 6T 1-3/8" 344271 PINION GEAR Z14 M7 R1/2 344272 CROWN GEAR Z28 M7 R1/2 344273...
