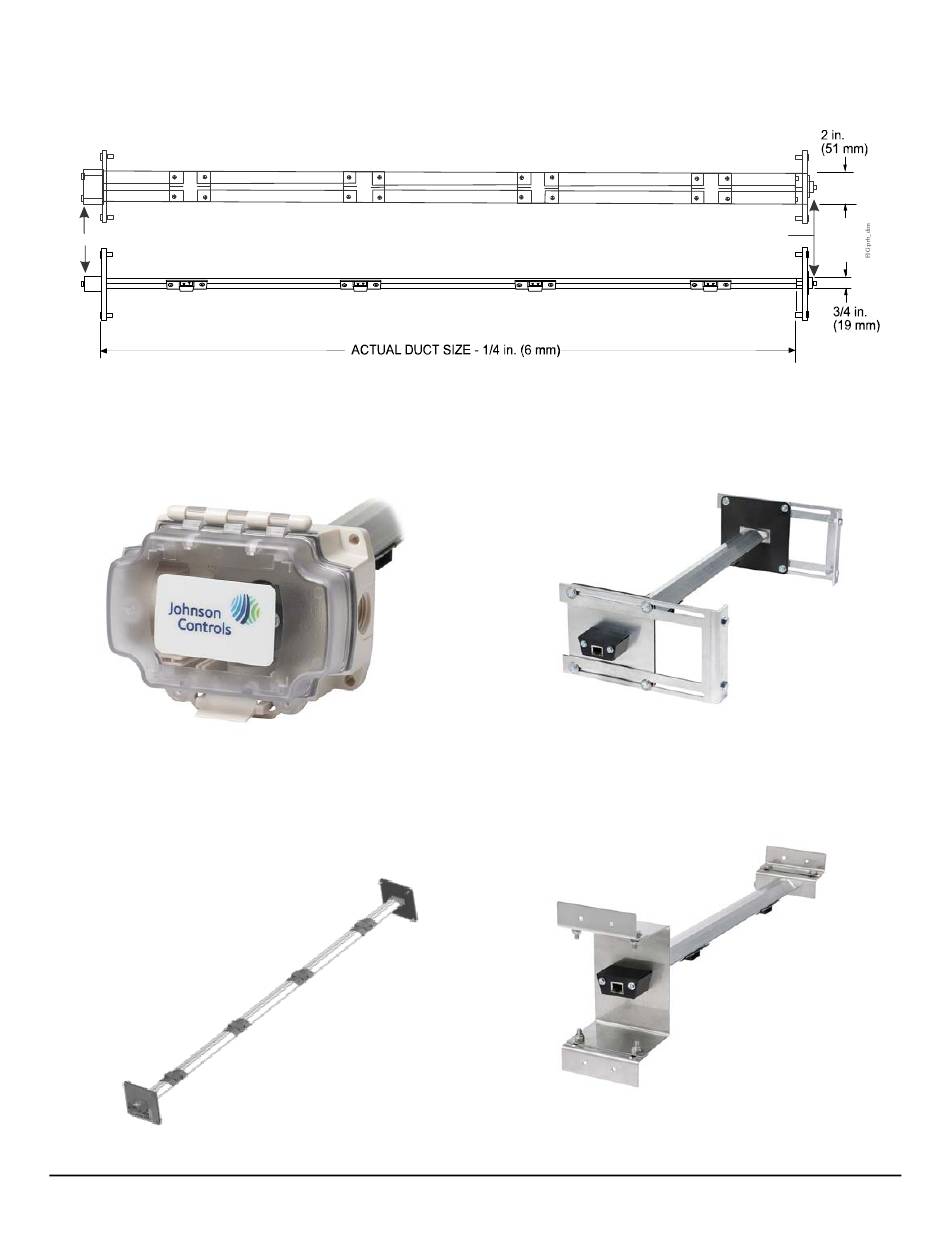

Figure 7: Thermal Dispersion Probe (Hoods Shown on Top for Illustrative Purposes)
Multiplexer End with RJ45 Connectors
Figure 8: Probe with NEMA Type 4
Weathershield
Note: Box provided may appear different than the
example above.
Figure 9: Probe with Standard Insertion
Mounting Hardware (Hoods Shown on Top for
Illustrative Purposes)
AD-1252 Thermal Dispersion Probe Airflow Measuring System Installation Instructions
Figure 10: Probe with Damper Stand-off
Mounting Bracket
Figure 11: Probe with Internal Mounting Bracket
8
Mounting
Stud End
