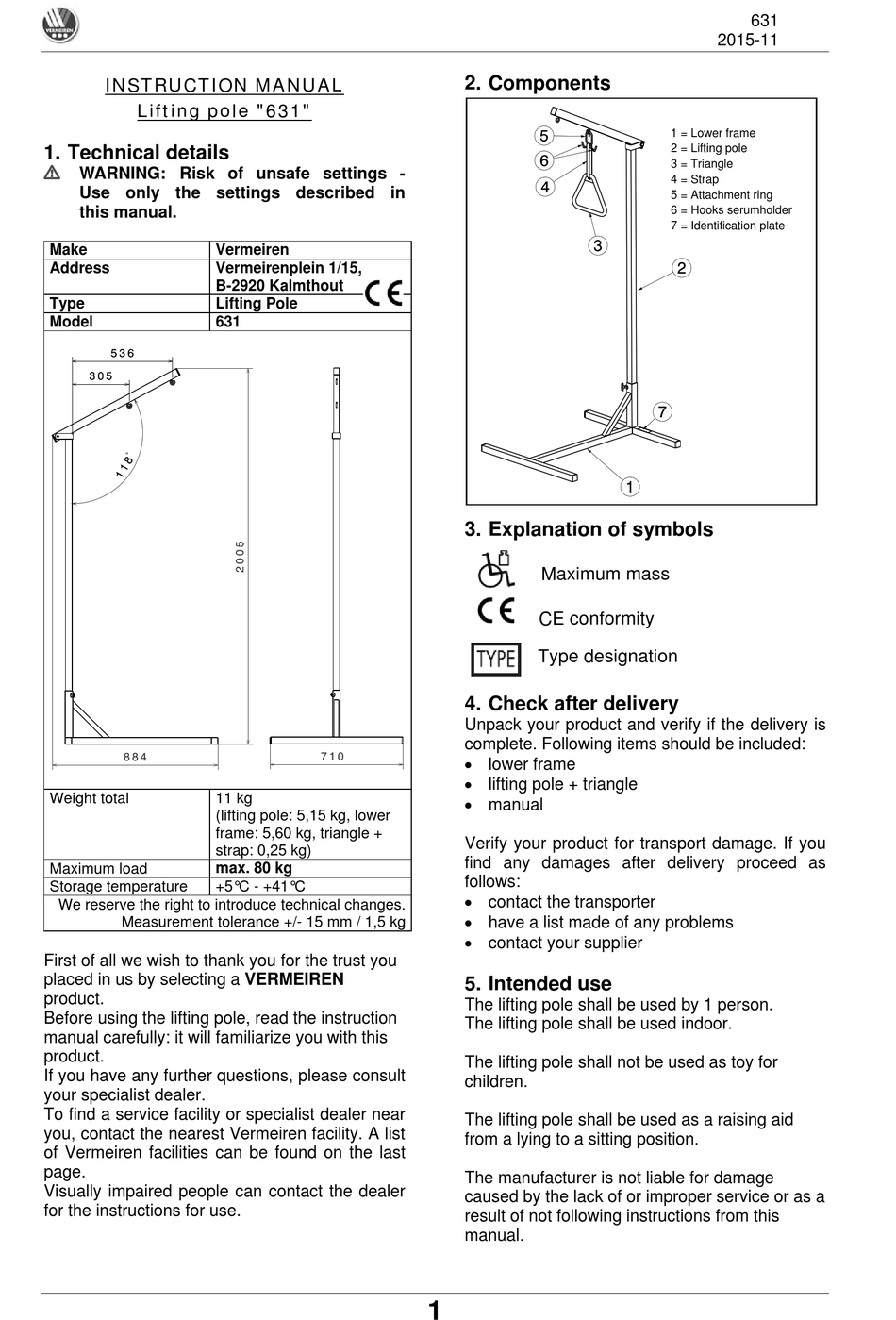

Vermeiren 631 Instruction Manual

INSTRUCTION MANUAL

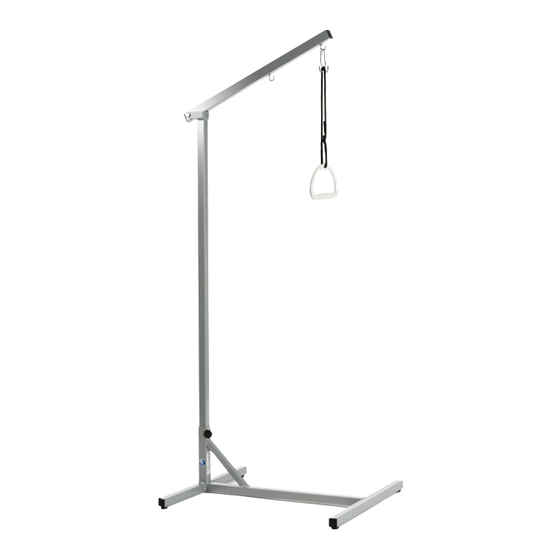

Lifting pole "631"
1. Technical details
L
WARNING: Risk of unsafe settings -
Use only the settings described in
this manual.
Make
Address
Type
Model
Weight total
Maximum load
Storage temperature
We reserve the right to introduce technical changes.
Measurement tolerance +/- 15 mm / 1,5 kg
First of all we wish to thank you for the trust you
placed in us by selecting a VERMEIREN
product.
Before using the lifting pole, read the instruction
manual carefully: it will familiarize you with this
product.
If you have any further questions, please consult
your specialist dealer.
To find a service facility or specialist dealer near
you, contact the nearest Vermeiren facility. A list
of Vermeiren facilities can be found on the last
page.
Visually impaired people can contact the dealer
for the instructions for use.
Vermeiren
Vermeirenplein 1/15,
B-2920 Kalmthout
Lifting Pole
631
11 kg
(lifting pole: 5,15 kg, lower
frame: 5,60 kg, triangle +
strap: 0,25 kg)
max. 80 kg
+5°C - +41°C
2. Components
3. Explanation of symbols
Maximum mass
CE conformity
Type designation
4. Check after delivery
Unpack your product and verify if the delivery is
complete. Following items should be included:
 lower frame
 lifting pole + triangle
 manual
Verify your product for transport damage. If you
find any damages after delivery proceed as
follows:
 contact the transporter
 have a list made of any problems
 contact your supplier
5. Intended use
The lifting pole shall be used by 1 person.
The lifting pole shall be used indoor.
The lifting pole shall not be used as toy for
children.
The lifting pole shall be used as a raising aid
from a lying to a sitting position.
The manufacturer is not liable for damage
caused by the lack of or improper service or as a
result of not following instructions from this
manual.
1
631
2015-11
1 = Lower frame
2 = Lifting pole
3 = Triangle
4 = Strap
5 = Attachment ring
6 = Hooks serumholder
7 = Identification plate
