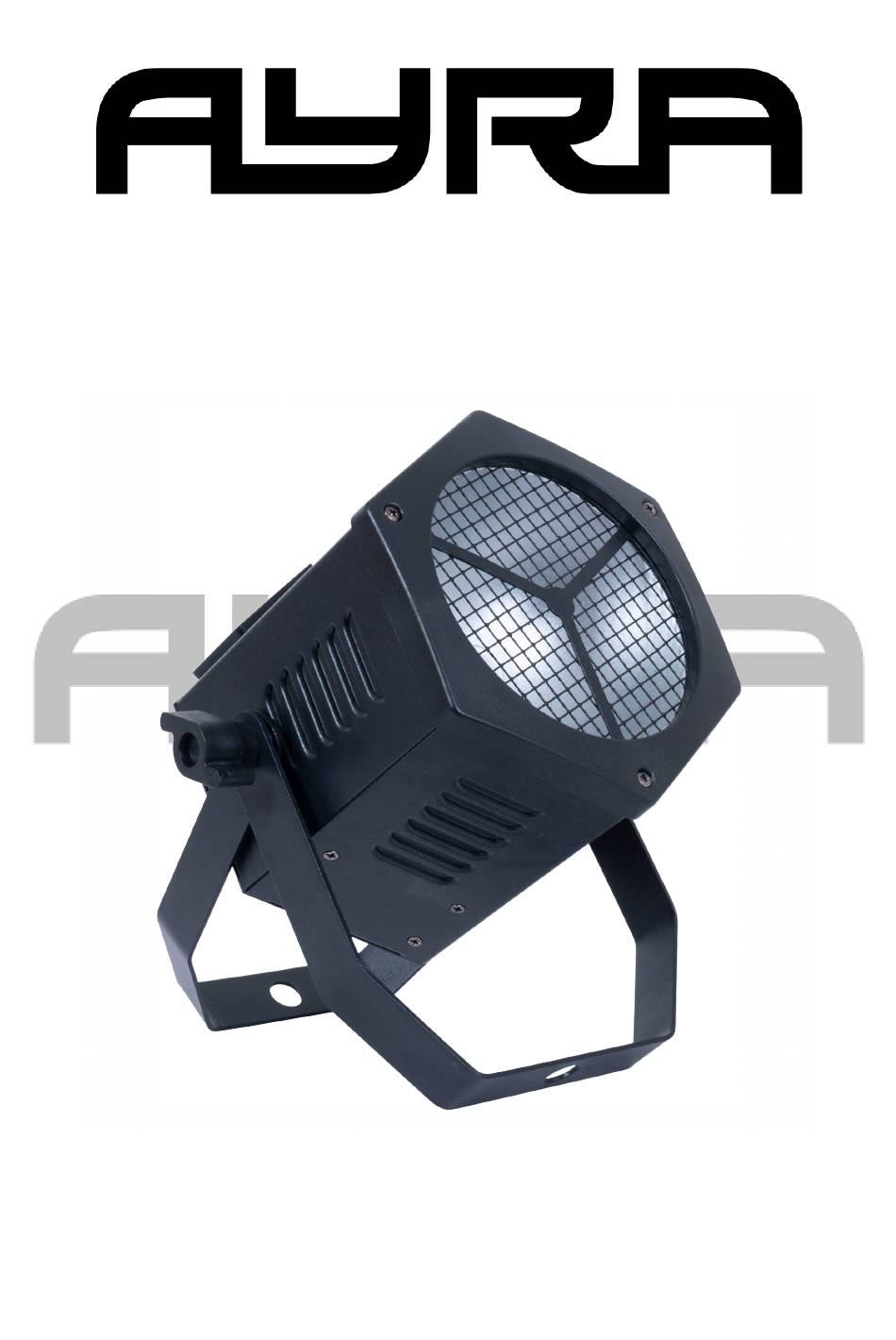

- Page 1 IntenZ CB040 40W RGBW LED Blinder / Spotlight User Manual The information in this user manual is subject to change at any time without notice. Version: 1.0 Date of creation and author's initials: 07-10-2019 RV Revision date and author's initials: -...
- Page 2 'Box Contents' are included in the package. In the event that the IntenZ CB040 does not function properly, or if you have any issues while operating it, please remove the plug from the power socket and contact your retailer for assistance.
-
Page 3: Safety Instructions
Safety Instructions WARNING! Keep this device away from moisture, water and rain to avoid the chance of electric shocks! WARNING! Only connect this device to a suitable power socket. This device functions on a specific power voltage. If it is plugged into a power socket with a different voltage, it could result in permanent damage and even dangerous situations such as fire or electric shocks. - Page 4 - Should the device not be used in the manner described in this user manual, damages or even injuries could occur. Ayra cannot be held responsible for any injuries or damages that occur as a result of improper use of this product.
- Page 5 Suitable for indoor use only: this product was only designed for indoor use. The maximum environmental temperature must not exceed 40 degrees Celsius (104 degrees Fahrenheit). Contact: Ayra professional lighting products Verrijn Stuartweg 18 4462 GE Goes The Netherlands Please do not send any products to this correspondence address.
- Page 6 Operation Guidelines for this Device Light Output DMX output via 3-pin XLR DMX input via 3-pin XLR Microphone Power input via IEC C14 Power output via IEC C14 Safety-eyelet Double suspension bracket / floor stand LED Display with Menu buttons Ventilation grille The information in this user manual is subject to change at any time without notice.
- Page 7 The device cannot be operated while it is still starting up and displays the ‘AYRA’ logo. Once the device has fully started up, it will automatically jump to the last mode and setting. Operation modes and other settings shown on the display can now be adjusted or changed via the menu buttons.
- Page 8 Firmware Version Displays current version of firmware installed. This cannot be adjusted or changed An explanation of all available functions can be found below: ADDR: With this function, you can determine the DMX start address of the device. Set it channel 001, and the device will respond to DMX channel 1.
- Page 9 automatically switch off again within 30 seconds. DISP: This function is useful when the device is suspended and the display screen is upside down. Use this function to flip the screen so that it can be easily read when the device is suspended. TEST: When the device needs to be checked, use the ‘TEST’...
- Page 10 Operation Modes Please find a clear explanation of the differences between all available Operation Modes below and how they are affected by the menu functions listed above. Auto: In Auto Mode, you can select one of the Operation Modes in which the device is not dependent on external factors such as DMX signals, master signals or sound.
- Page 11 Master Dimmer 000-255 (0-100%) Stroboscope / Shutter Channel 000-007 LED On 008-015 LED Off 016-131 Stroboscope, slow to fast 132-139 LED On 140-181 Fast out, slow on, pulse effect, slow to fast 182-189 LED On 190-231 Slow out, fast on, pulse effect, slow to fast 232-239 LED On 240-247 Random Strobe 248-255 LED On...
- Page 12 153-204 S-curve 205-255 Halogen The information in this user manual is subject to change at any time without notice. Version: 1.0 Date of creation and author's initials: 07-10-2019 RV Revision date and author's initials: -...
-
Page 13: Installation And Connection Instructions
When you want to place the IntenZ CB040 in an upright position, make sure that the device is placed on a stable surface such as a table, DJ booth or bar. The IntenZ CB040 is not fitted with rubber feet to grip the ground and stabilise the device. - Page 14 Power Output The IntenZ CB040 is fitted with IEC C14 power input and an IEC C13 power output. This makes it possible to link multiple devices with one single power supply, wall socket or power block. The fuse fitted in this device is intended to protect that single device only. The input and output of the power supply are directly wired to each other.
- Page 15 DMX Lighting Troubleshooting If you have a problem with your DMX light effect, please consult the troubleshooting section for possible solutions. If, after consulting this section, the problem remains unresolved, please contact your retailer for more information and/or help. This troubleshooting section contains information on how to solve the most common DMX light effect problems, but it does not and cannot cover every eventuality.
- Page 16 Signal loss or interference in the Close the DMX circuit with a DMX circuit terminator or connect a booster after maximum 32 fixtures. The device is not reacting properly Incorrect DMX channel mode Check that the correct DMX to DMX commands channel mode is set The operation mode can not be The device is in Slave mode...
-
Page 17: Technical Specifications
Technical Specifications Basic Functions: - LED fixture with with broad spread - Metal construction with protective grille - Standard U-form double suspension bracket - 40 Watt RGBW LED per pixel, with warm white - Diverse operation modes - Adjustable Dimmer Curves - Display with Menu buttons - Industrial design with numerous application capabilities - Power input and output for easy power distribution to multiple fixtures...
